Description
The Ritter M11 UltraClave Automatic Sterilizer includes four instrument trays, a stainless steel tray rack, power cord, and a new pre-installed PM (preventative maintenance) kit which includes a new gasket and filters. This unit is fully calibrated to manufacturer specifications, passes spore testing, and has undergone a complete flush of the system.
Warranty: 90 Days - Parts and Labor.

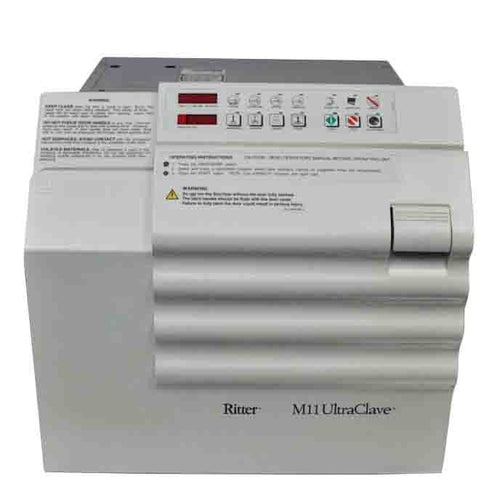

The Ritter M11 UltraClave Automatic Sterilizer is a digital (automatic) steam pressure autoclave. The door automatically opens when the machine is in dry mode. It is one of the largest tabletop sterilizers on the market.
With the emergence of many aggressive, infectious organisms, there is an ever-increasing need for efficient, effective instrument processing in your practice. The M11 is the largest member of the Ritter family of autoclaves. Its unique 11" x 18" chamber gives it the distinction of having the largest sterilizing capacity of any standard counter-top sterilizer on the market, making it perfect for larger packs and instruments.
This product is primarily used by veterinarians or surgeons, but is also used in a range of other settings, including active surgery center, medical practice, schools, industrial lab, doctor's clinic, or tattoo establishment.
Features
Ritter M11 UltraClave Automatic Sterilizer Features
- Exclusive automatic-opening door for ease of use and a quick drying time.
- Large chamber for increased capacity.
- Air Removal System:
- 1st Generation: Diaphragm Bellow System.
- 2nd Generation: Steam-Flush Pressure Pulse Air Removal System ensures proper steam penetration.
- Self program controls enable you to create different cycle parameters to meet specific instrument processing needs.
- Pre-programmed controls for convenience.
- LCD display for easy view of indicators.
- Meets UL 61010-1, IEC 61010-2-040.
- Meets CAN/CSA C22.2 No. 61010-1, CSA C22.2 No. 61010-2-040-07 Part 2-040.
- ASME Certified.
Specifications
Ritter M11 UltraClave Automatic Sterilizer Specifications
- Overall Length: 23.8" (60.5 cm) with plug.
- Overall Width: 17.8" (45.2 cm).
- Overall Height: 17.8" (45.2 cm) with printer.
- Minimum Countertop Area: 17.8" x 21" (45.2 cm x 53.3 cm).
- Chamber:
- 11" Diameter (28 cm).
- 18" Depth (45.7 cm).
- 6.5 gallons usable volume (24.6 liters).
- Trays:
- Two Large: 15" (L) x 9" (W) x 1.1" (D) (38 cm x 22.9 cm x 2.9 cm).
- Two Small: 15" (L) x 6.6" (W) x 1.1" (D) (38 cm x 16.8 cm x 2.9 cm).
- Unit Weight: 99 lb (44.9 kg).
- Shipping Weight: 131 lb (59.4 kg).
- Water Reservoir Capacity: 1.4 gallons (5.3 liters).
- Electrical Requirements:
- 115 VAC, 50/60 Hz, 15 amps, single phase.
- 115 VAC has 1425 watt tubular immersion heater.
Configurations
Ritter M11 UltraClave Automatic Sterilizer Configurations
- #MFI-MMK-M11-022-PREVIOUS: MPN #M11-006. 1st Generation Autoclaves include M11-001, M11-002, M11-003, M11-004, M11-005, and M11-006.
- #MFI-MMK-M11-022: 2nd Generation Autoclaves.
Accessories
Ritter M11 UltraClave Automatic Sterilizer Accessories
The following accessories are compatible and commonly purchased with the M11 UltraClave Automatic Sterilizer:
- #MFI-MMK-9A155001: Midmark M9/M11 Thermal Printer - First Generation (Compatible with #MFI-MMK-M11-022-PREVIOUS).
- #MFI-MMK-9A259001: Midmark M9/M11 Thermal Printer - Second Generation (Compatible with #MFI-MMK-M11-022).
- #002-0371-00: M9/M11 Printer Refill Kit.
- Speed-Clean Chamber Cleaner:
- #002-0396-00: Single Bottle.
- #002-0396-05: Case of 12.
- #9A215001: M11 Horizontal Cassette Rack.
- #9A215002: M11 Vertical Cassette Rack.
- #9A226001: M9/M11 Sterilizer Pouch Rack.
- #9A307001: Tray and Cassette Removal Tool.
Literature
Ritter M11 UltraClave Automatic Sterilizer Literature
Ritter M3/M9/M11 Automatic Sterilizers Brochure
Midmark M9/M11 Troubleshooting Testing Repair Guide
Midmark M9/M9D/M11/M11D -001 thru -019 Sterilizers Sevice Manual Previous Models
