Description

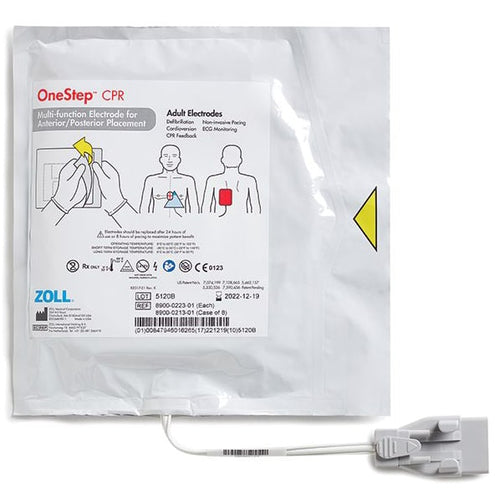

The Zoll OneStep CPR Resuscitation Electrode is designed to help improve CPR quality and record chest compressions. It sets a new standard for speed to defibrillation and CPR assistance. It is designed for use in hospital settings with the M Series, R Series, and X Series defibrillators.
Warranty: Until Use or Expiration (24 Month Shelf Life).
There are no connectors needed to use OneStep electrodes, they are code-ready and pre-connected to the defibrillator and do not need to be disconnected to test. OneStep CPR Electrodes come in an easy-to-open speed pack, and feature integrated electrodes in anterior defibrillator which eliminates the need for a separate ECG cable.
Features
Zoll OneStep CPR Resuscitation Electrode Features
- Real CPR Help: Real-time coaching on the depth, rate, and release velocity of compressions. A unique Perfusion Performance Index (PPI) also provides rapid visual assessment of CPR quality and the impact of pauses on resuscitation efforts.
- See-Thru CPR: Filters out compression artifact, making it possible to see the development of an organized rhythm during manual chest compressions. Minimizng the duration of interruptions increases CPR fraction; a higher fraction is related to resuscitation success.
- Code-Ready: OneStep electrodes are pre-connected to the R Series defibrillator so they are always ready to use.
- Expiration Alert: The R Series automatically issues an alert when an electrode approaches its expiration date. In addition, the R Series conduct a daily Code-Ready test automatically without disconnecting the electrodes. A green check mark will be displayed if the R Series is Code-Ready, a red X if it is not.
- Gel Type: Solid, adhesive polymer.
- Conductive Element: Tin.
- Packaging: Protective outer tray containing multilayer foil laminate pouch.
- Age and Weight: Adult.
- Pacing Time: 8 hours.
- Lead Wire Length: 28/46".
- Non-sterile.
Configurations
Zoll OneStep CPR Resuscitation Electrode Configurations
| Product Number | Placement | Quantity |
|---|---|---|
| #8900-0223-01 | Anterior/Posterior | 1 Pair |
| #8900-0213-01 | Anterior/Posterior | 8 Pairs |
| #8900-0225-01 | Anterior/Anterior | 1 Pair |
| #8900-0217-01 | Anterior/Anterior | 8 Pairs |
