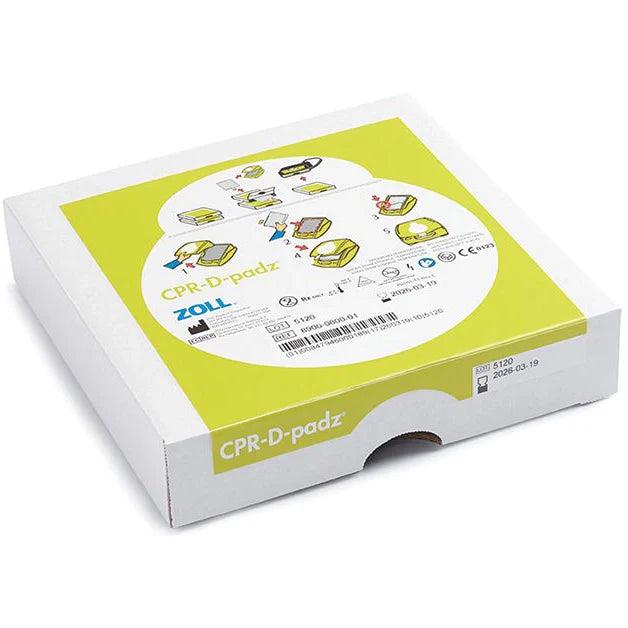

Zoll CPR-D-padz Defibrillator Electrode Pads

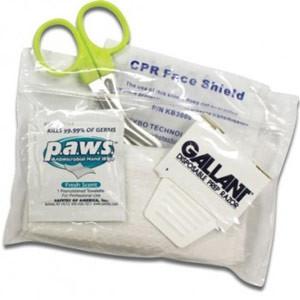

The Zoll CPR-D-padz Defibrillator Electrode Pads (#8900-0800-01 / One Pair) come with an accessory package that includes a mask, scissors, wet wipe, and dry wipe.

Warranty: 90 Days - Free from Defects in Material and Workmanship (5 Year Shelf Life).

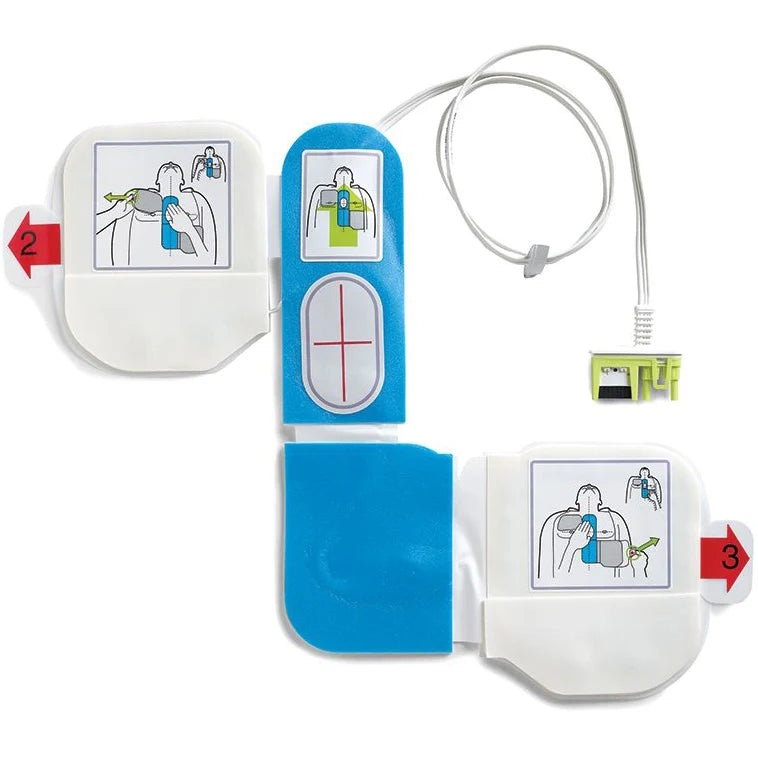

The CPR-D-padz are designed for Zoll AEDs. They are a one piece defibrillation and CPR system with compression, as well as Real CPR Help depth, See-Thru CPR, and rate sensors. These pads also feature a unique design with CPR landmark for hand placement making it easy to place on the victim, and have the longest shelf life of any defibrillator electrode sold today (5 years).

Inadequate compression rate and depth are common during CPR. Adult victims need at least 100 compressions per minute, and at a depth of at least 2 inches (5 cm). Compressions must be done well to effectively move blood and oxygen. The Zoll AED Plus converts compression data instantaneously from the CPR-D-padz and provides an adaptive metronome to help the rescuer with the proper rate and depth, saying "push harder" or "good compressions," as needed. It also shows CPR compression depth on the display screen. Zoll's AED Plus is the only AED that helps the rescuer achieve the correct rate and depth of chest compressions during CPR. No other AED has this capability.

CPR-D-padz are also compatible with the AED Pro, M Series, E Series, R Series, Propaq MD, and X Series.

Zoll CPR-D-padz Defibrillator Electrode Pads Specifications

• Conductive Gel: Solid, adhesive polymer.
• Conductive Element: Tin.
• Packaging: Multilayer laminate.
• Lead Wire Length: 36" (91 cm).
• Age and Weight: Adult.
• Pre-connect: Yes.
• Shelf Life: 60 Months.
• Required Connection: For M, E, X Series, and Propaq, CPR Connector 8000-0370 is needed; for R Series, CPR Connector 8009-0020 is needed.
• Apex Electrode:
  • Length: 6.1" (15.5 cm).
  • Width: 5.6" (14.1 cm).
  • Total Area: 34.1 in² (86.6 cm²).
  • Conductive Gel:
    • Length: 3.5" (8.9 cm).
    • Width: 3.5" (8.9 cm).
    • Area: 12.3 in² (79 cm²).
• Sternum Electrode:
  • Length: 6.1" (15.5 cm).
  • Width: 5" (12.7 cm).
  • Total Area: 30.5 in² (77.5 cm²).
  • Conductive Gel:
    • Length: 3.5" (8.9 cm).
    • Width: 3.5" (8.9 cm).
    • Area: 12.3 in² (79 cm²).
• Central Section:
  • Length: 12.9" (32.9 cm).
  • Width: 4.2" (10.6 cm).
  • CPR Device:
    • Length: 3.4" (8.7 cm).
    • Width: 2" (5.1 cm).

Zoll CPR-D-padz Defibrillator Electrode Pads Literature

Zoll Electrode Product Guide

Zoll CPR stat padz and CPR-D padz with Real CPR Help
