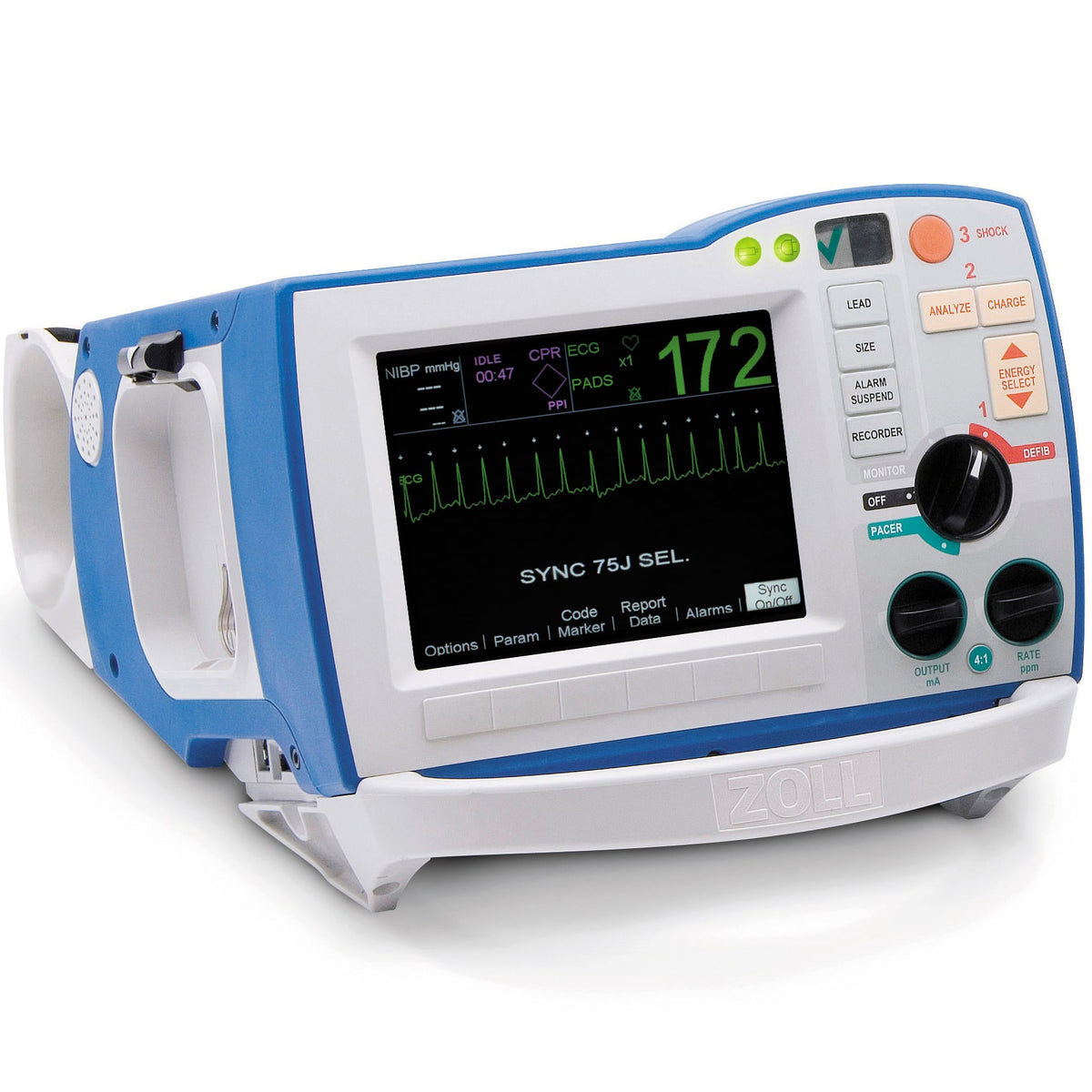

Zoll R Series ALS Defibrillator with Expansion Pack

Name: Zoll R Series ALS Defibrillator with Expansion Pack
Brand: Zoll
SKU: ZOL-30110000001010012
Price: 14002.3 USD
Availability: InStock

Zoll R Series ALS Defibrillator with ...

R Series - Sizzle Video

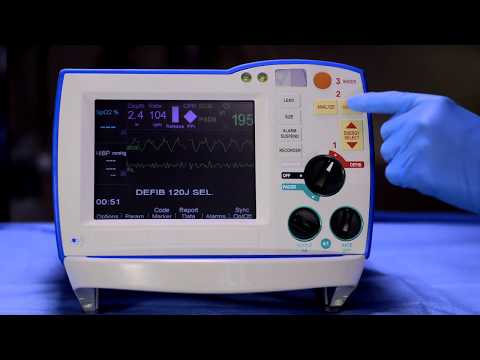

R Series Basic Operation - v14

Zoll R Series Real CPR Help

Zoll R Series See Thru CPR

Key Features

SKU: ZOL-30110000001010012
Condition:

Condition: Factory New

Condition: Factory New

Condition: Factory New

Condition: Factory New

Condition: Factory New

Condition: Factory New

Condition: Factory New
Warranty:

Warranty: 5 Years

Warranty: 5 Years

Warranty: 5 Years

Warranty: 5 Years

Warranty: 5 Years

Warranty: 5 Years

Warranty: 5 Years
Combines a defibrillator, ECG display, advanced monitoring capabilities, and Noninvasive Transcutaneous Pacing (NTP) with communication, data printing, and recording capabilities in a single instrument
Real CPR Help and See-Thru CPR technology allow the rescuer to see depth and rate of compression as well as monitor underlying ECG rhythm while performing CPR
Rectilinear Biphasic Waveform (RBW) was designed for external defibrillation to control for variations in patient impedance through a series of digitally-controlled internal resistors
Small, lightweight, grab-and-go handle simplifies portability
Learn more:

Contact The Manufacturer

MFR: Zoll

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 30110000001010012

MPN: 30110001001010012

MPN: 30110003101010012

MPN: 30110005201210012

MPN: 30120000001110012

MPN: 30120001001110012

MPN: 30120003101110012
Phone: (800) 348-9011

$14,002.30

Select a Configuration

Variant

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

The Zoll R Series ALS Defibrillator with Expansion Pack (which adds See-Thru CPR, CPR Dashboard, and Wi-Fi capability) is a sophisticated, yet easy-to-use manual unit with full networking capability, advanced monitoring parameters, and full CPR support. The Advanced Life Support Monitor/Defibrillator brings simple, smart, and ready defibrillation to hospitals.

Note: Batteries are not included. The Zoll SurePower Rechargeable Lithium Ion Battery Pack (#8019-0535-01) may be purchased separately and is compatible with R Series, E Series, and AED Pro Defibrillators.

Warranty: 5 Years - Free from Defects in Material and Workmanship.

Real CPR Help and See-Thru CPR technology allow the rescuer to see depth and rate of compression as well as monitor underlying ECG rhythm while performing CPR. See-Thru CPR reduces the duration of pauses during CPR so rescuers are able to see whether an organized underlying rhythm has developed without stopping compressions. Real CPR Help guides rescuers with text and audio feedback on CPR quality measures with numeric data based on real time depth and rate of compressions. To take advantage of Real CPR Help, use OneStep Complete, OneStep CPR, or OneStep Pediatric CPR electrodes.

The R Series Defibrillator also features Rectilinear Biphasic Waveform (RBW) that was designed for external defibrillation to control for variations in patient impedance through a series of digitally-controlled internal resistors. This feature provides the maximum average current held for the optimum duration. RBW provides more current than the typical "high energy" biphasic that other defibrillators use, and has proven to be more effective than monophasic waveforms, especially on high-impedance patients.

The R Series works with the Zoll OneStep Pacing system. With OneStep Pacing and Zoll OneStep electrodes, the need for a separate ECG cable is eliminated. The ECG electrodes are incorporated with an anterior OneStep electrode. The electrodes are triangular and incorporate a circular multi-function therapy electrode in the middle and three ECG electrodes at the ends of the triangular electrode pad shape. While the therapy portion emits a pacing pulse, the ECG electrodes acquire signals from the heart and function as the monitoring element. Electrodes for this function are sold separately.

Extensive Pediatric Capabilities: When used with OneStep Pediatric electrodes, the R Series automatically reduces the shock energy to a lower protocol, starting at 50 joules rather than 120. And when it is in Advisory mode, the OneStep Pediatric electrodes enable a pediatric algorithm that can distinguish between a shockable and non-shockable rhythm. The unique OneStep Pediatric CPR electrodes also provide visual feedback by displaying the rate and depth of every compression on the CPR dashboard. These electrodes are specifically designed to ensure precise CPR measurements in small children.

Features

Zoll R Series ALS Defibrillator with Expansion Pack Features

See-Thru CPR filter and compression index.
CPR Dashboard featuring Real CPR Help: Guides rescuers with real-time audio and visual feedback on CPR quality measures. It provides numeric displays of depth and rate and visual indicators of compression release, as well as a unique Perfusion Performance Indicator.
OneStep Electrode Technology.
ECG 3/5-lead cable with AHA markings.
OneStep system with CPR cable.
Code Readiness Testing System: The R Series conducts a comprehensive self-test of more than 110 individual indicators of readiness (including the status of necessary connection cables, battery power, and electrodes) once a day. Using standard wireless technology, it can automatically relay this information to Defibrillator Dashboard, which provides a quick snapshot of the overall health of the entire defibrillator fleet that can be viewed on a PC or mobile device. Defibrillator Dashboard optimizes defibrillator readiness and increases efficiency for the biomedical engineering team.
Defibrillator mentor familiarization aid.
Advisory defibrillation.
Built-in test, compact flash card, and USB port.
WiFi (802.11) compatible (required modem).
Color LCD display.
Power Source: AC or battery operated.

Specifications

Zoll R Series ALS Defibrillator with Expansion Pack Specifications

Power: 120 VAC / 60 Hz (integrated).
Energy Output: 1 to 200 Joules.
Charge Time: Less than 7 seconds with a new, fully charged battery (first 15 charges to 200 joules).
Weight: 13.6 lb (6.2 kg) with OneStep Cable and SurePower battery pack; 15.2 lb (6.9 kg) with paddles.
Dimensions: 12.5" (D) x 10.5" (W) x 8.2" (H) (31.7 cm x 26.7 cm x 20.8 cm).
Shipping Weight: 22 lb.
Shipping Dimensions: 18" x 15" x 12".

Configurations

Zoll R Series ALS Defibrillator with Expansion Pack Configurations

Note: OneStep Pacing is recommended.

#30110000001010012: Standard (No OneStep Pacing, SpO₂, NIBP, or EtCO₂).
#30110001001010012: With SpO₂.
#30110003101010012: With SpO₂ and EtCO₂ (mainstream).
#30110005201210012: With SpO₂, NIBP, and EtCO₂ (mainstream).
#30120000001110012: With OneStep Pacing.
#30120001001110012: With OneStep Pacing and SpO₂.
#30120003101110012: With OneStep Pacing, SpO₂ and EtCO₂ (mainstream).

Optional Advanced Monitoring Parameters:

Pulse Oximetry (SpO₂): Provides fast and accurate means of continuous and non-invasive monitoring of patients who are at risk for developing hypoxemia with Masimo's unique SET signal processing algorithm. SpO₂ possesses adult, pediatric, and neonatal capabilities, and monitors both ECG rate and pulse rate when pacing. It includes a reusable adult sensor and 4 foot extension cable.
End-Tidal (EtCO₂) Mainstream Technology: Provides continuous end-tidal CO₂ monitoring and diagnostic information. It includes a CAPNOSTAT 5 Mainstream CO₂ sensor (*airway adapter not included). For use with adult, pediatric, and neonatal patients.
Non-Invasive Blood Pressure (NIBP): Includes a 23 to 33 cm reusable cuff and 3 meter air hose. NIBP is for use with adult, pediatric, and neonatal patients. It utilizes SunTech Medical Advantage R-wave motion-tolerant (RMT) technology. Perform single or multiple measurements at user-programmable intervals.
