Description

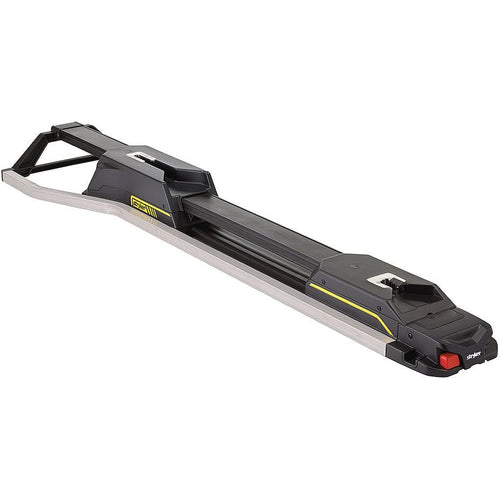

The Stryker Performance-LOAD Manual Cot Fastener (#6392) is designed to secure compatible ambulance cots into a ground-based transport vehicle for patient transportation purposes and to allow for the insertion and removal of the compatible ambulance cots.
Warranty: 90 Days - Parts and Labor.
The Performance-LOAD is compatible with the Power-PRO 2 (#6507), Power-PRO XT (#6500 and 6506), Power-PRO IT (#6516), and Performance-PRO XT (#6085 and #6086) ambulance cots, with the Performance-LOAD option factory installed or with the correct compatibility kit. The system meets dynamic crash test standards, enhancing occupant safety for the Power-PRO 2, Power-PRO XT, and Performance-PRO XT cots.
Features
Stryker Performance-LOAD Manual Cot Fastener Features
- SAE J3027 compliant to maximize occupant safety in the event of an ambulance accident.
- Guided loading and unloading help minimize cot drifting to improve operator efficiencies.
- Adaptable design with the ability for future modification to support the Power-LOAD Fastener System.
- Mass Casualty compliant with the inclusion of wall or floor mount fasteners and appropriate hardware.
- Power washable and easily removable for maximum decontamination and lowered potential for biohazards.
- Linear Transfer System: Guides and centers the cot during loading and unloading.
- Foot End Latch: Locks the foot end of the cot into place when in transport position.
- Head End Dock: Secures the head end of the cot into place when in transport position.
- Positive Action Foot End Release: Disengages the cot.
- Adaptable Floor Plate and Safety Hook: Compatible with the Power-LOAD technologies. The safety hook (optional, sold separately) connects to the cot safety bar during loading and unloading.
Specifications
Stryker Performance-LOAD Manual Cot Fastener Specifications
- Length: 70" (178 cm).
- With Mass Casualty Inclusion: 80" (203 cm).
- Width:
- Foot End: 9" (23 cm).
- Head End: 19" (48 cm).
- Weight: 62.5 lb (28.3 kg) total.
- Floor Plate Assembly: 16.5 lb (7.5 kg).
- Fastener Assembly: 46 lb (21 kg).
- Height: 6" (15 cm).
- Minimum Operator(s) Required:
- Unoccupied Cot: One.
- Occupied Cot: Two.
- Recommended Loading Height: 22 to 36" (56 to 91 cm).
Configurations
Stryker Performance-LOAD Manual Cot Fastener Configurations
- #MFI-SYK-STR6392: Standard (Non-Charging).
- #MFI-SYK-6392: Standard (Non-Charging) - With Floor Plates.
- #MFI-SYK-STR6392C: With Inductive Charging*.
- #MFI-SYK-STR6392CFP: With Inductive Charging* and Floor Plates.
*When the cot is secured in the transport position, Performance-LOAD inductive charging provides optimal SMRT battery management and charging (no cables or connectors required).
Literature
Stryker Performance-LOAD Manual Cot Fastener Literature
Stryker Emergency Care Catalog
Stryker Hybrid Loading System Brochure
Stryker 6392 Performance-LOAD Cot Fastener System Operations Manual
Stryker 6392 Performance-LOAD Cot Fastener System Maintenance Manual
