Stryker 6500/6506 Performance-LOAD Compatibility Kit

The Stryker 6500/6506 Performance-LOAD Compatibility Kit (#6506-700-002) allows you to use the Performance-LOAD Manual Cot Fastener System (#6392) with the 6500 or 6506 Power-PRO XT Ambulance Cots.

Note: This is the 6500/6506 Performance-LOAD Compatibility Kit only. The Manual Cot Fastener itself and ambulance cot are sold separately.

Warranty: 1 Year.

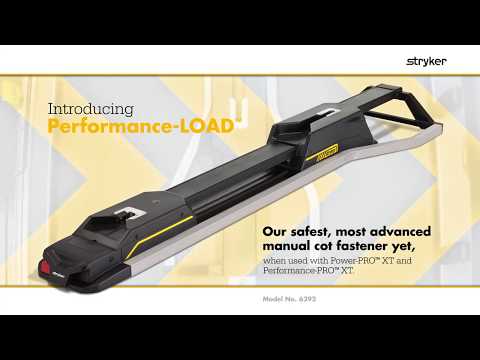

The Performance-LOAD Manual Cot Fastener System (sold separate) helps ensure caregiver and patient safety by guiding the cot throughout the loading and unloading process, and securing the cot during transportation.

This compatibility kit includes the following parts:

• #0004-387-000: BCHS 6-Lobe,1/4"- 20 x 2-1/4" (2).
• #0004-661-000: SHCS, 1/4" - 20 x 7/8" w/Patch (4).
• #0007-556-000: THMS, 5/16" x 1/2" 6 Lobe T40, w/Patch (2).
• #0011-065-000: Flat Washer (4).
• #0011-077-000: Washer, Plain (2).
• #0016-028-000: Fiberlock Hex Nut, 1/4" - 20 (2).
• #6500-101-086: Load Wheel, Hard (2).
• #6392-001-062: Assembly, Head End Forging (1).
• #6500-001-322: Sliding Head Section Safety Bar (1).
• #6500-002-013: Foot End Fastener Assembly (1).
• #6500-002-126: Spacer Plate, FE Fastener (2).
• #6506-009-035: 6506/6516 Performance-LOAD Compatible Cot Upgrade Instructions (1).
• #0004-615-000: BHCS 6-Lobe, #10-24 x 1-1/2" (4).
• #0016-131-000: Nylock Hex Nut, #10-24 (4).
• #6392-001-502: Cover, Casting (2).
• #6085-101-143: Pin, Fowler Cylinder (1).
• #0011-004-000: Flat Washer, 3/8 (2).
• #0028-181-000: 0.375 x 0.042 (TRUARC 5304-37) SST (1).
