Condition:
Certified Refurbished
-
Warranty:
- Weight: 46.0 lb
- Designed to secure compatible ambulance cots into a ground-based transport vehicle for patient transportation purposes
- Compatible with the Power-PRO 2 (#6507), Power-PRO XT (#6506), Power-PRO IT (#6516), and Performance-PRO XT (#6086) ambulance cots, with the Performance-LOAD option factory installed or with the correct compatibility kit
- Guided loading and unloading help minimize cot drifting to improve operator efficiencies
- SAE J3027 compliant to maximize occupant safety in the event of an ambulance accident
-
Learn more:
-
MFR:
Stryker
Ships from MFI Medical
- Phone: (269) 385-2600
+Free Shipping*
Shop with Confidence
Free Shipping
Free Returns
Sales Tax Exemption
+Dedicated Account Managers
Frequently asked questions
Does this fastener offer versatile compatibility with Stryker cots?
Yes, the Stryker Performance-LOAD Manual Cot Fastener is designed to securely dock several key Stryker ambulance cot models for safe patient transport, utilizing a guided loading mechanism.
Compatible cots include:
- Power-PRO 2 (#6507)
- Power-PRO XT (#6500 and #6506)
- Power-PRO IT (#6516)
- Performance-PRO XT (#6085 and #6086)
Important Note: For proper integration and security, the compatible cot must either be factory-equipped with the Performance-LOAD option or be fitted with the appropriate compatibility kit.
Does the fastener meet rigorous safety standards?
Yes, the Stryker Performance-LOAD Manual Cot Fastener is engineered for maximum occupant safety and operational compliance in ground transport vehicles. This system provides dynamic retention to secure the cot during transit.
Key safety and compliance features include:
- SAE J3027 Compliance: The fastener is fully compliant with the stringent SAE J3027 dynamic crash test standards, maximizing occupant safety during accidents.
- Secure Locking: Security is provided by a dual mechanism utilizing a Head End Dock and a Foot End Latch to lock compatible Stryker cots securely in the transport position.
- Guided Loading: The integrated Linear Transfer System guides and centers the cot during loading and unloading, ensuring proper engagement and enhancing operator workflow and safety.
What are the dimensions and total weight?
The Stryker Performance-LOAD Manual Cot Fastener has specific measurements designed for secure integration into the transport vehicle, ensuring occupant safety and efficient operation.
Key Dimensions:
| Dimension | Standard Measurement |
|---|---|
| Length | 70 inches (178 cm) (Standard configuration) |
| Length (Mass Casualty Setup) | 80 inches (203 cm) |
| Width (Head End) | 19 inches (48 cm) |
| Width (Foot End) | 9 inches (23 cm) |
| Height | 6 inches (15 cm) |
Total Weight:
The total weight of the entire system is 62.5 lb (28.3 kg). This weight is segmented into two main components for installation:
- Fastener Assembly: 46.0 lb (21.0 kg)
- Floor Plate Assembly: 16.5 lb (7.5 kg)
How many operators are required for loading?
The required number of operators depends on the cot’s status during the loading or unloading process:
- Unoccupied Cot: Only one operator is required.
- Occupied Cot (with patient): A minimum of two operators are required for safe operation.
What is the recommended cot loading height?
The recommended loading height for the cot when using this fastener system is between 22 to 36 inches (56 to 91 cm).
Is the adaptable floor plate included?
The inclusion of the adaptable floor plate depends entirely on the specific product configuration you select.
The Floor Plate Assembly (which weighs 16.5 pounds) is included only when explicitly specified in the configuration name:
- Standard (Non-Charging) with Floor Plates
- With Inductive Charging and Floor Plates
If the configuration title does not include “Floor Plates,” this component is not part of the package. This adaptable plate is key because it allows for future modification to support the advanced Power-LOAD Fastener System.
Is the fastener designed for easy decontamination?
Yes, the Stryker Performance-LOAD Manual Cot Fastener is engineered to be hygiene-focused and supports rigorous decontamination protocols.
Key features that minimize biohazard potential and ensure easy cleaning include:
- Power Washable: The entire system is built to withstand power washing, simplifying routine cleaning procedures.
- Easily Removable Components: Components can be easily removed to facilitate maximum and comprehensive decontamination efforts.
Is this fastener adaptable for the Power-LOAD System?
Yes, the Stryker Performance-LOAD Manual Cot Fastener is specifically designed for future adaptability and can be modified to support the advanced Power-LOAD Fastener System.
This feature extends the longevity of your investment and ensures compatibility with Stryker’s evolving technology. Adaptability is supported by several key components:
- Adaptable Floor Plate: The base structure is compatible with future Power-LOAD technologies.
- Safety Hook Interface: It accommodates the required Safety Hook interface (optional, sold separately) necessary for Power-LOAD systems.
- Inductive Charging: Select configurations are available with integrated inductive charging, which provides SMRT battery management—a feature critical to advanced loading systems.
Stryker Performance-LOAD Manual Cot F...

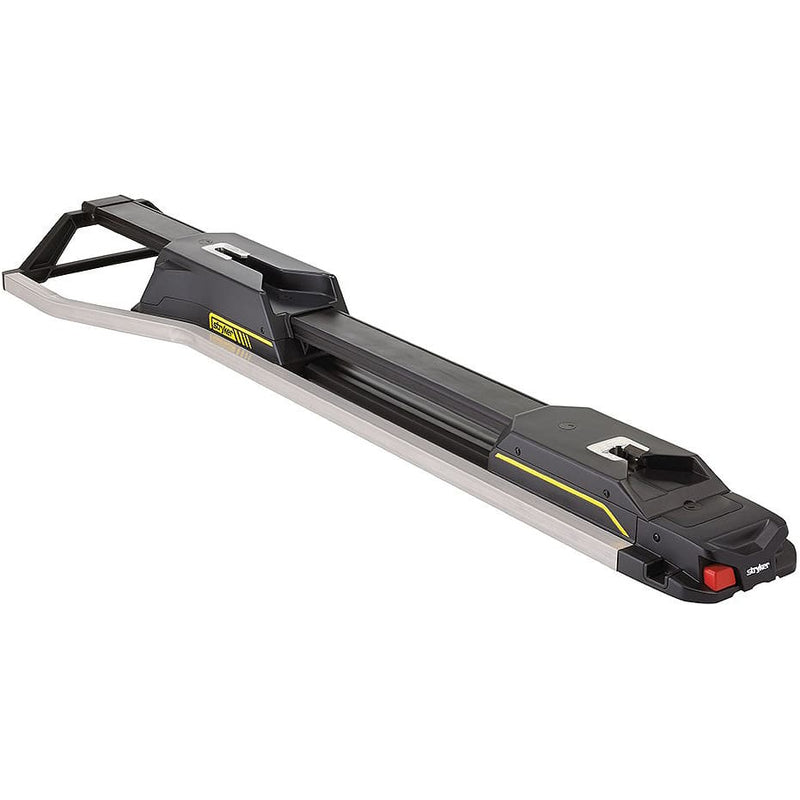

Stryker Performance-LOAD Manual Cot Fastener
