Description

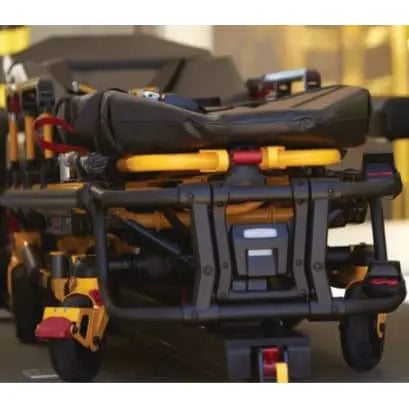

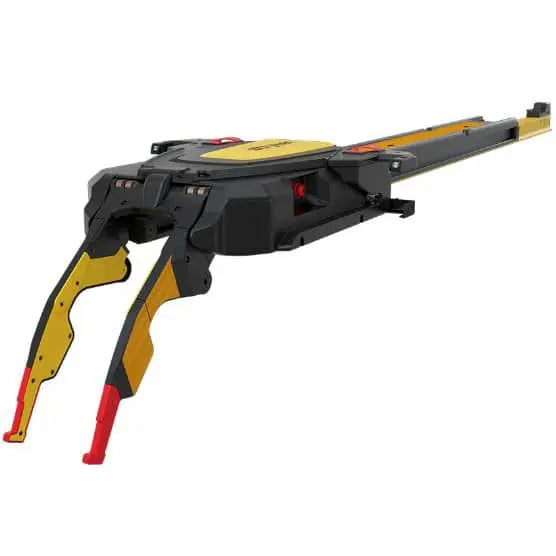

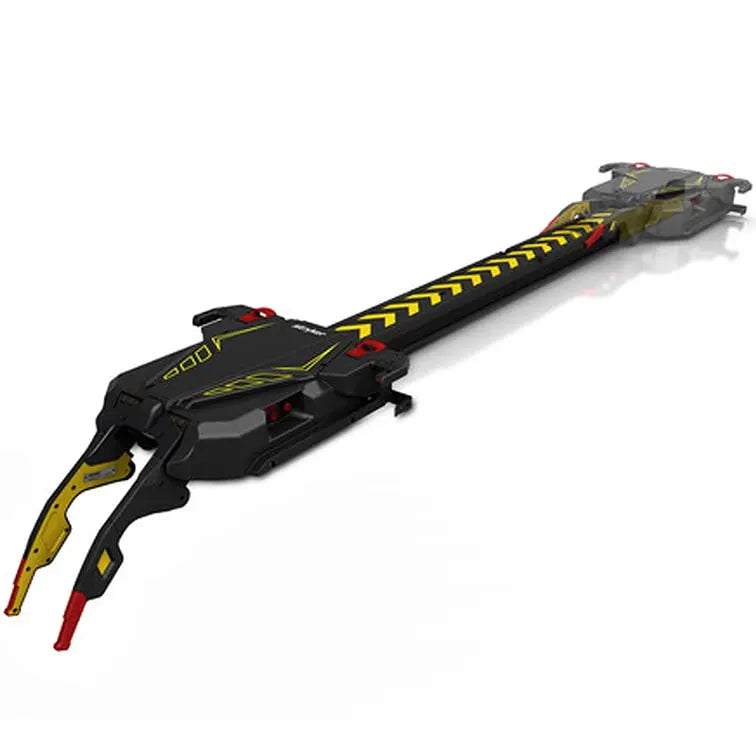

The Stryker Power-LOAD Cot Fastener System lifts and lowers the cot into and out of the ambulance, reducing spinal loads and the risk of cumulative trauma injuries. It improves operator and patient safety by supporting the cot throughout the loading and unloading process.

Warranty: 90 Days - Parts and Labor.

The Power-LOAD System can also automatically charge a SMRT Battery (#6500-033-000) when the Power-PRO is connected to the Power-LOAD fastener while in transport position (no cable or connectors required). Please note that the SMRT Battery is required for this unique feature, and is sold separately.

The Power-LOAD Compatibility option is available for the Power-PRO XT, Power-PRO IT, and Performance-PRO XT cots.

The following lists the installation accessories included with the system:

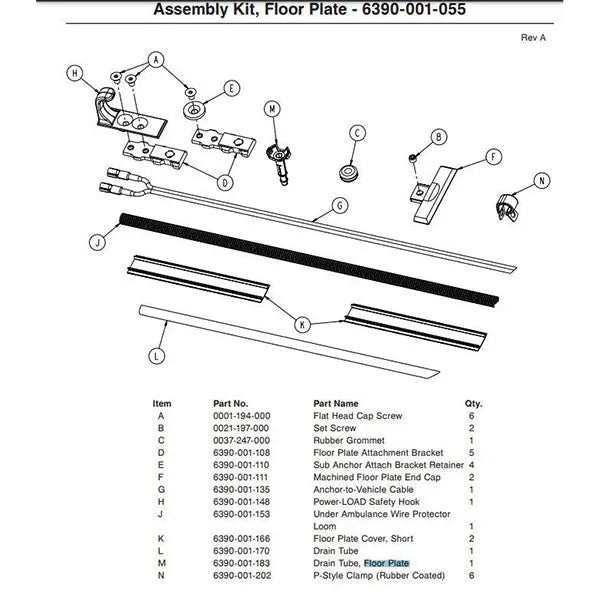

Floor Plate Assembly Kit

  • #0001-194-000: Flat Head Screws (x6).
  • #0021-197-000: Set Screws (x2).
  • #0037-247-000: Rubber Grommet.
  • #6390-001-108: Floor Plate Attachment Brackets (x5).
  • #6390-001-110: Sub Anchor Attach Bracket Retainers (x4).
  • #6390-001-111: Machined Floor Plate End Caps (x2).
  • #6390-001-135: Anchor-to-Vehicle Cable.
  • #6390-001-148: Power-LOAD Safety Hook.
  • #6390-001-153: Under Ambulance Wire Protector Loom.
  • #6390-001-166: Floor Plate Covers, Short (x2).
  • #6390-001-170: Drain Tube.
  • #6390-001-183: Drain Tube, Floor Plate.
  • #6390-001-202: P-Style Clamps (Rubber Coated) (x6).

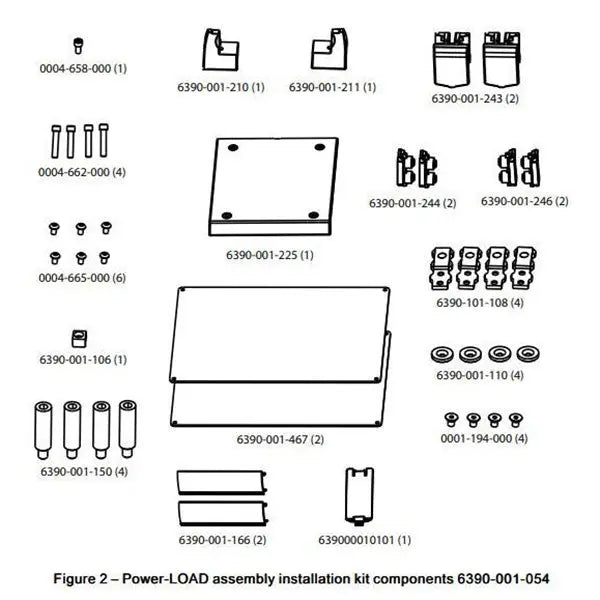

Installation Kit Components

  • #0004-658-000: Socket Head Cap Screw.
  • #6390-001-210: Transfer Trim, Head End, Left.
  • #6390-001-211: Transfer Trim, Head End, Right.
  • #6390-001-243: Dead Stop Bumpers (x2).
  • #0004-662-000: Socket Head Cap Screws (x4).
  • #0004-665-000: Button Head Cap Screws (x6).
  • #6390-001-225: Transfer Wear Pad, Foot End.
  • #6390-001-244: Dead Stop Blocks, Thru Hole (x2).
  • #6390-001-246: Dead Stop Blocks, Threaded (x2).
  • #6390-001-106: Trolley Magnet Activator.
  • #6390-001-467: Plates, IFU Label (x2).
  • #6390-101-108: Floor Plate Attachment Brackets (x4).
  • #6390-001-110: Retainer, Attachment Brackets, Sub Anchor (x4).
  • #6390-001-150: Anchor Mounting Posts (x4).
  • #6390-001-166: Floor Plate Covers, Short (x2).
  • #0001-194-000: Flat Head Cap Screws (x4).
  • #639000010101.

Features

Stryker Power-LOAD Cot Fastener System Features

  • Occupant Safety: Meets dynamic crash test standards for maximized occupant safety. Also minimizes patient drops by supporting the cot until the wheels are on the ground.
  • Wireless Communication: The system wirelessly communicates with Power-PRO cots for ease of operation and maximum operator convenience.
  • Hydraulic Lift: Ergonomically designed to reduce operator and patient injuries, Power-LOAD hydraulically lifts patients weighing up to 700 lb with the touch of a button.
  • Eliminates the need to steer the cot into and out of the ambulance.
  • Has an easy-to-use manual back-up system.
  • Lifting arms.
  • Head end lock LED indicators.
  • Control panel.
  • Cot release handles.
  • Linear transfer system.
  • Inductive charging.

Specifications

Stryker Power-LOAD Cot Fastener System Specifications

  • Length:
    • Overall Length: 95" (241 cm).
    • Minimum Length: 89.5" (228 cm).
  • Width: 24.5" (62 cm).
  • Weight:
    • Total Weight: 211.5 lb (96.5 kg).
    • Floor Plate Assembly: 16.5 lb (7.5 kg).
    • Anchor Assembly: 23 lb (10.5 kg).
    • Transfer Assembly: 67 lb (30.5 kg).
    • Trolley Assembly: 105 lb (48 kg).
  • Maximum Weight Capacity: 700 lb (318 kg).
  • Minimum Operator Required:
    • Occupied Cot: 2.
    • Unoccupied Cot: 1.
  • Recommended Loading Height: 22 to 36" (56 to 91 cm).
  • Battery: 12 VCD, 5 Ah lead acid battery (#6390-001-468).
