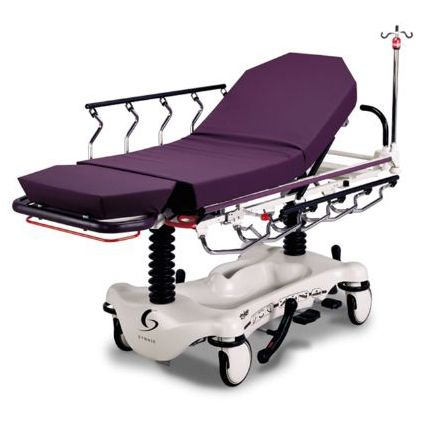

Description
The Stryker Gynnie OB/GYN Stretcher (#1061) includes a new mattress pad.
Note: IV pole and push handles are sold separately.
Warranty: 90 Days - Parts and Labor.
The Gynnie OB/GYN Stretcher combines the trademark durability and features of a standard Stryker stretcher with supreme OB/GYN functionality. The compact design, pop-up push handles, and retractable fifth wheel help improve maneuverability in even the most compact facilities. In addition, stirrups are conveniently built into the stretcher.
In just three easy steps, the Gynnie OB/GYN stretcher converts from a general use stretcher to a pelvic exam table, making it a versatile solution that can outfit an entire emergency department.
Features
Stryker Gynnie OB/GYN Stretcher Features
- 8" (20 cm) Omni Surface casters with wheel covers.
- 26" (66 cm) wide patient surface.
- Dual cylinder pneumatic backrest.
- Dual pedestal hydraulics with constant rate descent.
- Dual side-mounted foot control hydraulics.
- Retractable fifth-wheel steering.
- Four-wheel, steel-ring brakes with dual side and head activators.
- Glideaway siderails.
- Integrated storage tray with oxygen bottle holder.
- Permanently-attached folding foot section and foot supports.
- Roller bumpers.
- Two IV receptacles.
- Unique one-handed foot section release lever.
Specifications
Stryker Gynnie OB/GYN Stretcher Specifications
- Overall Length: 81.5" (207 cm).
- Overall Width:
- Siderails Up: 31.5" (80 cm).
- Siderails Down: 26.75" (68 cm).
- Weight Capacity: 500 lb (227 kg).
- Height Range (to litter top):
- High: 35" (88.9 cm).
- Low: 22" (55.9 cm).
- Litter Positioning:
- Backrest: 0 - 90°.
- Knee Gatch: 0 - 90°.
- Trendelenburg/Reverse Trendelenburg: ± 18°.
- Maximum Angle: 87.5°.
- Patient Surface: 26" x 77" (66 cm x 196 cm).
- Siderails: 13" x 39" (34 cm x 99 cm).
- Caster Diameter: 8" (20 cm).
- Break Away Point From Wall: 64" (162.6 cm).
Literature
Stryker Gynnie OB/GYN Stretcher Literature
Stryker Gynnie OB/GYN Stretcher Maintenance Manual
