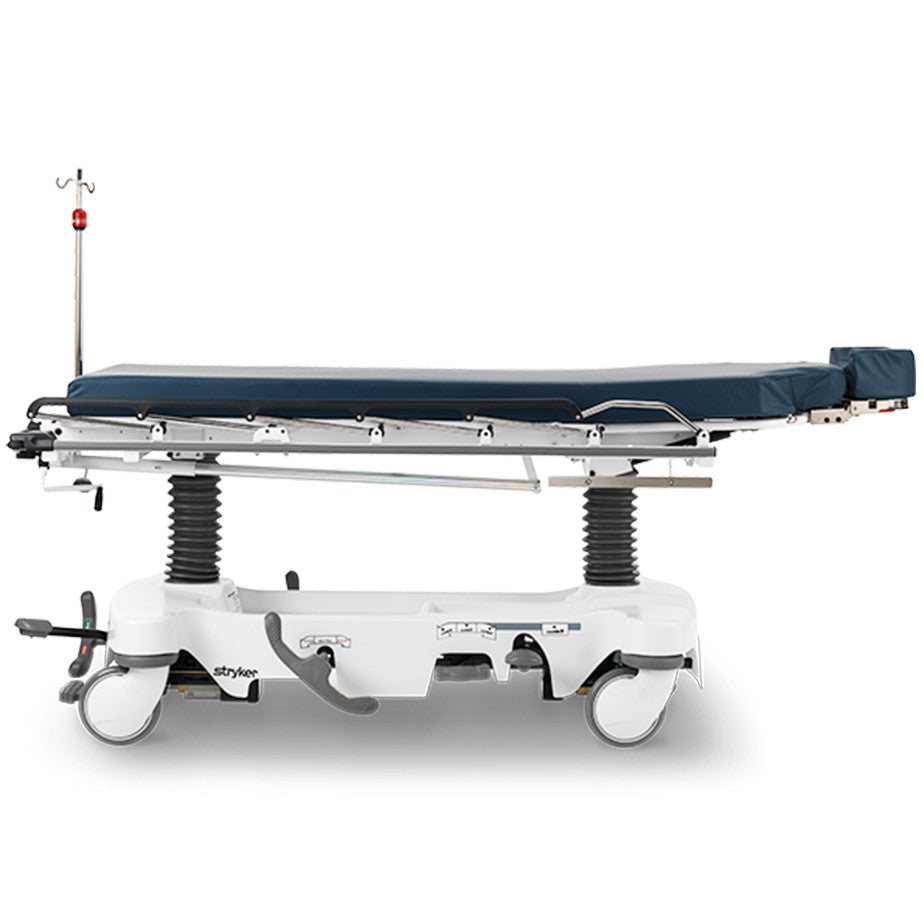

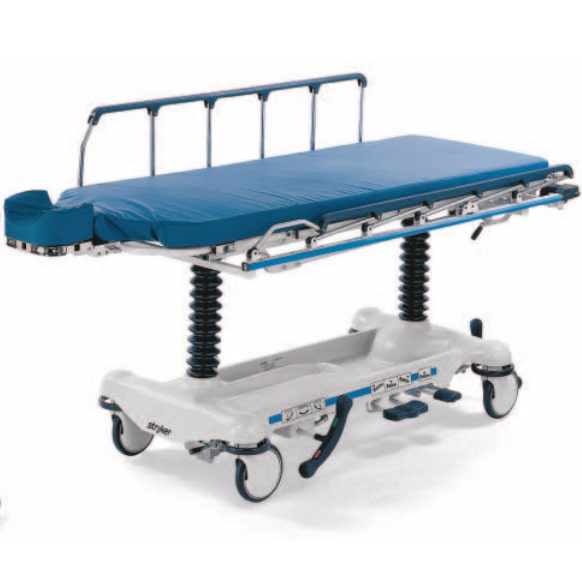

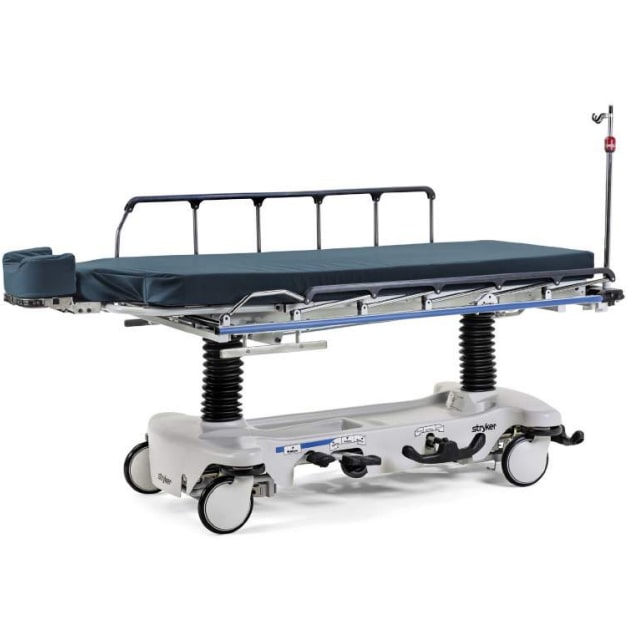

Stryker Eye Surgery Stretcher - Certified Refurbished

The Stryker Eye Surgery Stretcher includes a new mattress top.

Note: IV pole pictured is sold separately.

Warranty: 90 Days - Parts and Labor.

The Eye Surgery Stretcher offers exceptional head-end clearance, giving surgeons ample leg room to maneuver while performing delicate eye procedures.

Enhanced clearance for surgeon access is ideal for either superior or temporal approach. The dual articulating headpiece maximizes surgical access by allowing caregivers to place the head section in virtually any position. Positioning controls tuck neatly within the headpiece. Solid steel rings clamp down over all four wheels to help ensure a firmly-locked work surface.

The reliable work surface and mobile design combine to help with surgical throughput.

Stryker Eye Surgery Stretcher Features

• Performance:
• Enhanced clearance and dual-articulating headpiece maximizes surgical access.
• Ideal for either superior or temporal approach.
• Positioning controls tuck neatly within the headpiece and allow full articulation.
• Accessibility:
• Dual cylinder pneumatic backrest is manually controlled.
• Dual pedestal hydraulics.
• Dual side hydraulic controls.
• Fold-down collapsible siderails.
• Four IV receptacles.
• Central locking-brakes with foot-end brake and steer pedal.
• Metal tooth and groove braking system prevents swivel and roll.
• Hands-free Trendelenburg/Reverse Trendelenburg.
• Integrated storage tray with oxygen bottle holder.
• Retractable fifth-wheel steering helps improve mobility.
• Rubber bumpers at the foot end.
• Stationary foot-end litter.
• Uni-lower pedal.
• 8" (20 cm) Omni Surface casters with wheel covers.

Stryker Eye Surgery Stretcher Specifications

• Overall Length:
• Model 1068: 88" (224 cm).
• Model 1069, 1079, and 1089: 90" (228.6 cm).
• Overall Width (Siderails Up): 31.5" (80 cm).
• Maximum Weight Capacity: 500 lbs (225 kg).
• Height Range:
• Model 1068:
• High: 36" (91 cm).
• Low: 22.5" (57.15 cm).
• Model 1069:
• High: 36" (90 cm).
• Low: 22.5" (56 cm).
• Model 1079 and 1089:
• High: 34" (86.4 cm).
• Low: 22.25" (56.5 cm).
• Litter Positioning:
• Backrest (Fowler Angle): 0 to 90°.
• Trendelenburg/Reverse Trendelenburg: ± 18°.
• Knee Gatch:
• Model 1068: 0 to 35°.
• Model 1069, 1079, and 1089: 0 to 30°.
• Patient Surface:
• Model 1068: 26" x 88" (66 cm x 224 cm).
• Model 1069, 1079, and 1089: 26" x 87" (66 cm x 221 cm).
• Siderails: 13" x 55" (33 cm x 139.5 cm).
• Caster Diameter: 8" (20 cm).
• Head Piece Height Adjustment:
• Model 1068: ± 3°.
• Model 1069, 1079, and 1089: ± 4.5".
• Head Piece Tilt: ± 45°.

Stryker Eye Surgery Stretcher Models
