Description

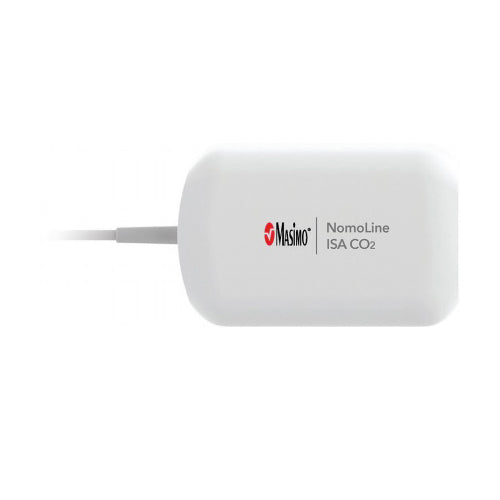

The Masimo NomoLine ISA CO Sidestream Gas Analyzer (#9921) includes the NomoLineISA CO Device and NomoLine Sampling Line.
Warranty: 1 Year.
The NomoLine ISA CO Sidestream Gas Analyzer connects to a patient breathing circuit for monitoring of inspired/expired gases during anesthesia, recovery, and respiratory care in patients of all ages. The intended environment is the operating suite, intensive care unit, and patient room. It is also intended to be used in road ambulances.
Specifications
Masimo NomoLine ISA CO Sidestream Gas Analyzer Specifications
- Dimensions: 3.6" x 2.4" x 1.4" (91 mm x 60 mm x 37 mm).
- Weight: Approx. 0.22 lb (98 g).
- Power Supply: 4.5 to 5.5 VDC; less than 0.9 W (normal operation); less than 1 W (peak at 5 VDC).
- Ambient CO: Less than or equal to 800 ppm (0.08 vol%).
- Recovery Time After Defibrillator Test: Unaffected.
- Interface: RS-232 and USB.
- Water Handling: NomoLine Family sampling lines with proprietary water removal tubing.
- Sampling Flow Rate: 50 ± 10 sml/min.
- Breath Direction: Adaptive threshold, minimum 1 vo% change in CO concentration.
- Respiration Rate: 0 to 150 ± 1 breaths/min.
- Flags: Breath Detected, No Breath Detected, Check Sampling Line, Unspecified Accuracy, Sensor Error.
- Environmental Conditions:
- Operating Temperature: 0 to 50 °C (32 to 122 °F).
- Storage/Transport Temperature: -40 to 70 °C (-40 to 158 °F).
- Operating Humidity: 10 to 95% RH (non-condensing).
- Storage/Transport Humidity: 10 to 95% RH (non-condensing at ambient temperature).
- Ambient CO: Less than or equal to 800 ppm.
- Operating Atmospheric Pressure: 525 to 1,200 mbar (52.5 to 120 kPa).
- Storage/Transport Atmospheric Pressure: 200 to 1,200 mbar (20 to 120 kPa).
Literature
Masimo NomoLine ISA CO Sidestream Gas Analyzer Literature
Masimo NomoLine with Masimo Devices Brochure
Masimo NomoLine ISA CO Sidestream Gas Analyzer Operator's Manual
