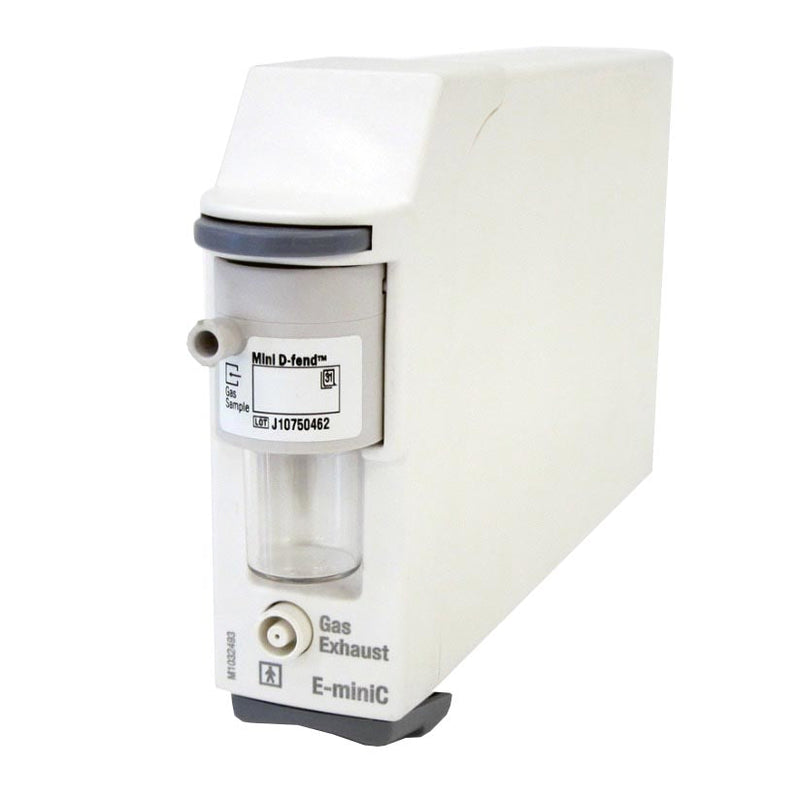

GE E-miniC CO2 Module

GE E-miniC CO2 Module
Key Features
  • SKU: MFI-GEH-E-MINIC-00-EN
  • Condition: Factory New
  • Warranty: 1 Year
  • Inspired and end-tidal CO2 values displayed on the screen as waveforms and in numerical format
  • Full numerical and graphical trends of all measured data
  • Accommodates water separation system which is lightweight and has good tolerance for tilting

  • Learn more:

Contact The Manufacturer
  • MFR: GE Healthcare
    Ships from MFI Medical
  • MPN: E-MINIC-00-EN
  • Phone: (866) 281-7545
$712.37
Select a Condition

2+ In Stock

Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

Free Returns

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

The GE E-miniC CO2 Module is a single width airway module that connects to GE CARESCAPE Monitors, including the GE B125, B450, and B650. It is available in both Certified Refurbished and Factory New conditions.

Warranty:

  • Certified Refurbished: 90 Days.
  • Factory New: 1 Year.

Features

GE E-miniC CO2 Module Features

  • CO2 side-stream measurement is done at the patient's airway.
  • Very small and reliable measurement technology.
  • Inspired and end-tidal CO2 values displayed on the screen as waveforms and in numerical format.
  • Full numerical and graphical trends of all measured data.
  • Measurement of respiration rate up to 80 breaths per minute.
  • Fast response time.
  • Wide measurement range for CO2.
  • Adjustable high and low alarm limits for EtCO2 and FiCO2.
  • Manual adjustment for N2O and O2 allowed for improved CO2 measurement accuracy.
  • Accommodates water separation system which is lightweight and has good tolerance for tilting.

Specifications

GE E-miniC CO2 Module Specifications

  • Sampling Rate: 150 +/- 25 ml/min.
  • Respiration Rate:
    • Measurement Range: 4 to 80 breaths/min.
    • Breath Detection: 1% variation in CO2 level.
    • Accuracy: +/- 1/min. in the range 4 to 20 breath/min. +/- 5% in the range 20 to 80 breath/min.
    • Resolution: 1/min.
    • Adjustable low and high limits for respiration rate; alarm for apnea.
  • Carbon Dioxide:
    • EtCO2: End-tidal CO2 concentration.
    • FiCO2: Inspired CO2 concentration.
    • Measurement Range: 0 to 20 vol% (0 to 20 kPa, 0 to 150 mmHg).
    • Accuracy: CO2 concentration 0 to 15 vol% +/- (0.2 vol% + 2% of reading). CO2 concentration 15 to 20 vol% +/- (0.7 vol% + 2% of reading).
    • Rise Time: Less than 300 ms with nominal flow.
    • Adjustable low and high limits for EtCO2 or FiCO2.

Conditions

GE E-miniC CO2 Module Conditions

  • #MFI-GEH-E-MINIC-00-EN: Certified Refurbished.
  • #E-MINIC-00-EN: Factory New.
