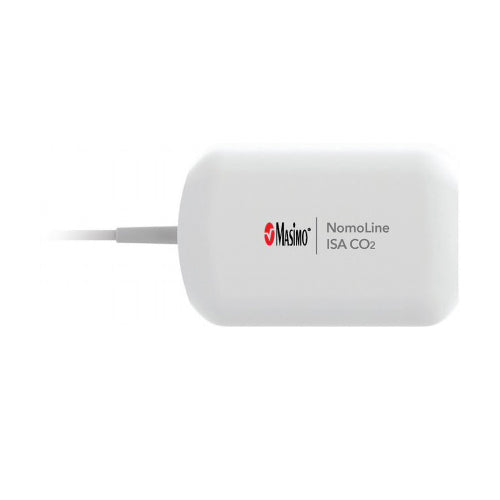

Masimo NomoLine ISA CO2 Sidestream Gas Analyzer

Masimo NomoLine ISA CO2 Sidestream Gas Analyzer
Key Features
  • SKU: MSO-9921
  • Condition: Factory New
  • Country of Origin: Mexico
  • Warranty: 1 Year
  • Connects to a patient breathing circuit for monitoring of inspired/expired gases during anesthesia, recovery, and respiratory care in patients of all ages
  • Intended environment is the operating suite, intensive care unit, patient room, and road ambulances
  • Interface: RS-232 and USB
  • Water Handling: NomoLine Family sampling lines with proprietary water removal tubing

  • Learn more:

Contact The Manufacturer
  • MFR: Masimo Ships from MFI Medical
  • MPN: 9921
  • Phone: (800) 326-4890
$1,494.00
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

Free Returns

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

The Masimo NomoLine ISA CO2 Sidestream Gas Analyzer (#9921) includes the NomoLineISA CO2 Device and NomoLine Sampling Line.

Warranty: 1 Year.

The NomoLine ISA CO2 Sidestream Gas Analyzer connects to a patient breathing circuit for monitoring of inspired/expired gases during anesthesia, recovery, and respiratory care in patients of all ages. The intended environment is the operating suite, intensive care unit, and patient room. It is also intended to be used in road ambulances.

Specifications

Masimo NomoLine ISA CO2 Sidestream Gas Analyzer Specifications

  • Dimensions: 3.6" x 2.4" x 1.4" (91 mm x 60 mm x 37 mm).
  • Weight: Approx. 0.22 lb (98 g).
  • Power Supply: 4.5 to 5.5 VDC; less than 0.9 W (normal operation); less than 1 W (peak at 5 VDC).
  • Ambient CO2: Less than or equal to 800 ppm (0.08 vol%).
  • Recovery Time After Defibrillator Test: Unaffected.
  • Interface: RS-232 and USB.
  • Water Handling: NomoLine Family sampling lines with proprietary water removal tubing.
  • Sampling Flow Rate: 50 ± 10 sml/min.
  • Breath Direction: Adaptive threshold, minimum 1 vo% change in CO2 concentration.
  • Respiration Rate: 0 to 150 ± 1 breaths/min.
  • Flags: Breath Detected, No Breath Detected, Check Sampling Line, Unspecified Accuracy, Sensor Error.
  • Environmental Conditions:
    • Operating Temperature: 0 to 50 °C (32 to 122 °F).
    • Storage/Transport Temperature: -40 to 70 °C (-40 to 158 °F).
    • Operating Humidity: 10 to 95% RH (non-condensing).
    • Storage/Transport Humidity: 10 to 95% RH (non-condensing at ambient temperature).
    • Ambient CO2: Less than or equal to 800 ppm.
    • Operating Atmospheric Pressure: 525 to 1,200 mbar (52.5 to 120 kPa).
    • Storage/Transport Atmospheric Pressure: 200 to 1,200 mbar (20 to 120 kPa).
