Description

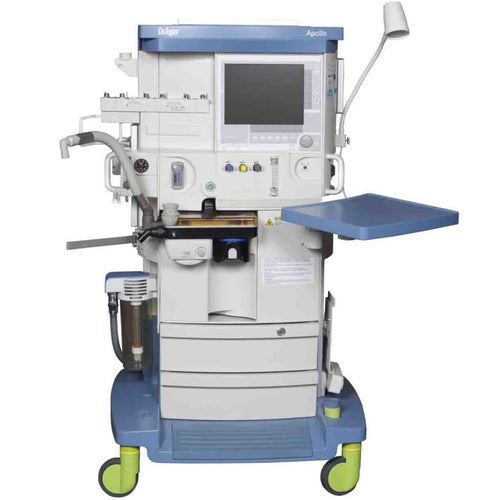

The Drager Apollo Anesthesia Machine includes a built-in gas module, built-in gas (anesthetic agents, CO, O) display, container of Sodasorb, O sensor, two flow sensors, two new batteries, power cord, and software version 04.53.05.
Warranty: 90 Days - Parts and Labor.
Note: Patient monitors and vaporizers are sold separately. Please refer to the Accessories section for a list of recommended compatible accessories sold at MFI Medical.
From the reliable line of Drager medical products comes the Apollo Anesthesia Machine. With a heightened emphasis on cost reduction in healthcare, Drager anesthesia solutions help you reduce operating costs and maximize reimbursement.
The Drager Apollo Anesthesia Machine can play an important role in optimizing your anesthesia workflow and reducing process costs with features such as the fully automatic self-test. Little user interaction is required allowing the caregiver to focus more on the patient.
In addition to providing you with invaluable assistance through best-in-class therapy, Apollo also offers you an open-platform architecture - enabling it to be easily integrated into your overall workflow. The Apollo features a built-in gas and O monitor. You can monitor gasses and O levels through the built-in display, meaning the only auxiliary monitor needed is a vital signs monitor.
Features
Drager Apollo Anesthesia Machine Features
- Advanced Ventilation: It has the ventilation technology to support patients of any age and acuity. The E-Vent plus servo controlled high-speed piston ventilator works with great precision to supply a maximum peak flow far in excess of any bellows ventilator, resulting in the kind of performance previously only seen in the ICU. Additionally, unlike a bellows ventilator, it requires no drive gas. The very short response time has clear physiological benefits for your patients, while the digital precision helps you make the most of the latest ventilation modes.
- Unique Low-Flow Wizard: Designed to support the user by providing optimal low and minimal flow settings. The consistent use of low-flow anesthesia techniques can significantly reduce the cost of inhalation anesthetic agents. Reducing the fresh gas flow from 3 L/min to 1 L/min can result in anesthetic agent savings of up to 50%.
- Automated Startup:
- Simple straightforward startup makes it easier for the staff and provides complete information on device status.
- Enhanced troubleshooting with clear text directions.
- Integrated breathing system eliminates external hoses and clutter, reducing the risk of misconnection and disconnection.
- Fully automatic self-test lasts approximately three minutes, reflects the results to the user, and makes results available to the user at any time.
- Monitoring:
- Standard: Inspiratory and expiratory concentration of O, NO, CO as well as anesthetic agents (Halothane, Enflurane, Isoflurane, Sevoflurane, Desflurane); Minute volume (MV) and Tidal volume (VT); Breathing frequency; Peak pressure, plateau pressure, mean pressure, PEEP; Patient compliance CPAT.
- Optional: Functional oxygen saturation (SpO).
- The following parameters maybe displayed as waveforms:
- Standard: Concentration of CO, O, as well as anesthetic agents, airway pressure, inspiratory and expiratory flow.
- Optional: Plethysmogram; Bar graph display of volumeter and tidal volume; Virtual flow tubes for O, AIR, NO; Display of graphical trends and numerical lists of measured values; AutoSet for alarm limits.
Specifications
Drager Apollo Anesthesia Machine Specifications
- Weight: 365 lb (165 kg) without vaporizers and gas cylinders.
- Dimensions: 59" (H) x 33.5" (W) x 31.5" (D) (150 cm x 85 cm x 80 cm).
- Power: 200 W, typically.
- Operating Voltage: 100 to 127 VAC (-15% + 10%), 45 to 65 Hz.
- Integrated Power Backup: At least 30 min, typically 90 min; Depending on ventilation parameters.
- Ventilator E-Vent plus: Electrically driven and electronically controlled, fresh gas decoupled.
- Ventilation Modes:
- Standard: Manual, spontaneous, Volume Mode, Pressure Mode.
- Optional/Synchronization: Pressure Support (PS).
- Pressure Limitation P (in Volume Mode): (PEEP + 10) up to 70 cmHO.
- Pressure Limitation P (in Pressure Mode): (PEEP + 5) up to 70 cmHO.
- Trigger: 0.3 to 15 L/min.
- Tidal Volume V (compliance compensated) (in Volume Mode):
- Standard: 20 to 1400 mL.
- With Advanced Ventilation option: 5 to 1400 mL.
- Breathing Frequency: 3 to 100 bpm.
- Inspiration Time (T): 0.2 to 6.7 s.
- Inspiration/Expiration Time Ratio (I:E): 5:1 max.
- Plateau Time (T:T): 0 to 60%.
- Inspiratory Flow (in Pressure Mode): 150 L/min max.
- PEEP:
- In Volume Mode: 0 to 20 cmHO (max. P - 10 cmHO).
- In Pressure Mode: 0 to 20 cmHO (max. P - 5 cmHO).
- Fresh-Gas Flow: 0 to 10 L/min for each gas (oxygen, air, nitrous oxide).
- T (in Pressure Mode and Pressure Support): 0 to 2 s.
- Total System Leakage: Less than 150 mL/min at 30 cmHO (automatic leak test).
- O Flow Control: Sensitive ORC Function: At least 21 Vol.-% with NO as carrier gas.
- O Flush: Greater than 35 L/min.
- Serial Interface: 2 x RS 232.
- Protocol: Medibus, Medibus X.
- Absorber Volume (reusable canister): 1.5 L.
Accessories
Drager Apollo Anesthesia Machine Accessories
The following accessories are compatible and commonly purchased with the Apollo Anesthesia Machine:
- #55-01-0019: Allied Healthcare Litholyme Carbon Dioxide Absorbent - Drager Style Cartridge.
- #55-01-0029: Allied Healthcare Carbolime Carbon Dioxide Absorbent - Drager Style Cartridge.
- Drager Vapor 2000 Vaporizer:
- #MFI-DGR-VAPOR-2000-ISO: Isoflurane.
- #MFI-DGR-VAPOR-2000-SEVO: Sevoflurane.
- #MFI-GEH-CARDIOCAP-5-BASIC: GE Cardiocap 5 Patient Monitor (No 5 agent gas analysis or CO2 included).
- #MFI-POWER-CORD-USA-10FT: MFI Medical Universal Medical Grade Hospital Power Cord.
- #R113P10: Maxtec MAX-11 Oxygen Cell.
Literature
Drager Apollo Anesthesia Machine Literature
Drager Apollo Software 4.5 Information
