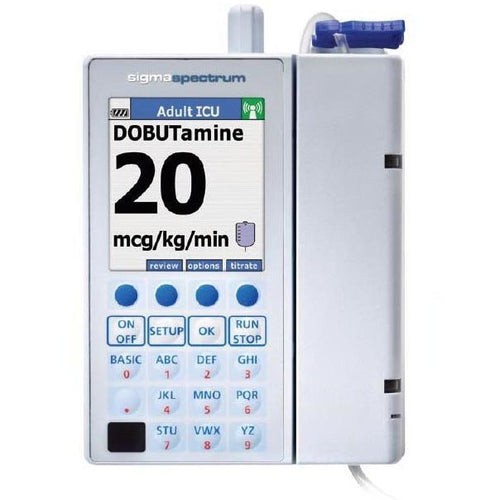

Baxter Sigma Spectrum Infusion Pump

Baxter Sigma Spectrum Infusion Pump Features

• Easy to set up and program safely.
• Bright, easy to read color display.
• Can be used with Baxter's standard IV administration sets.
• On-board, digital help screens.
• Quick drug find library search.
• Configurable dose error reduction software.
• Single step titration limit.
• Flow check at start of infusion.
• Secondary container infusion check.
• Bi-directional wireless communication.
• Comprehensive log analysis software to create CQU reports.

Baxter Sigma Spectrum Infusion Pump Specifications

• Dimensions: 6.3" x 6.4" x 4.7" (160 mm x 163 mm x 119 mm).
• Weight: Less than or equal to 0.75 lb (340 grams).
• Wireless Battery Module:
  • Lithium Ion, 1800 mA/h, 7.4 VDC nominal.
  • Capacity 4 hours (500 mL) at 125 mL/hour at the highest backlight settings.
  • 16 hour recharge time.
  • Charging occurs if AC Power Adaptor is plugged in, whether pump is ON or OFF.
• Pump Characteristics and Flow Rate Accuracy:
  • Linear peristaltic mechanism.
  • 0.5 to 999 mL/hour flow range in 0.1 mL/hour increments from 0.5 to 99.9 mL/hour and 1 mL/hour increments thereafter.
  • Volumetric accuracy (based on volume collected over one hour) using standard Hospira, Baxter.
  • ± 5% from 2 to 800 mL/hour, greater than 800 mL/hour ± 10% for Hospira ± 5% from 2 to 999 mL/hour for Baxter, 0.5 to 1.9 m/hour ± 0.1 mL. Total volume up to 9 liters (Hospira) or 12 liters (Baxter).
  • KVO - Keep vein open rate of either 1 mL/hour or the actual rate, whichever is lower, at infusion complete alarm.
  • Maximum pump pressure - 36 PSI (which can never be obtained with operational occlusion alarm limits).
• Wireless Network Interface:
  • Standard: IEEE 802.11b/g.
  • Transmit Power: 12 dBm typical.
• Wireless Security:
  • WEP (Wired Equivalent Privacy): 64/128-bit encryption (RC4).
  • WPA/WPA2/802.11i:
    • Encryption: TKIP, CCMP (AES).
    • WPA-PSK.
    • 802.1X authentication.
    • LEAP (WEP only).
    • PEAP/MSCHAPv2.
    • EAP-TLS.
• Environmental Limits:
  • Operating Temperature: 60 to 80 °F (15.6 to 26.7 °C), 20 to 90% relative humidity, non-condensing.
  • Storage Temperature: -4 to 120 °F (-20 to 49 °C), 10 to 90% relative humidity, non-condensing.
• Display: Full color, HRTFT, 240 x 270, LED front-lit, 0.2235 mm x 0.2235 mm dot pitch.
• Alarms and Alerts:
  • Air-In-Line: Dual beam ultrasonic detector alarms for large bubbles but allows smaller bubbles to pass. Detects air bubbles greater than 1" (≈ 125 μL Hospira, ≈ 140 μL Baxter), will alarm if greater than 1 mL of air in 15 min., less than 50 μL bubbles are omitted in the summation of the 1 mL.
  • Audio: Speaker actuated audio alarm, low, medium, and high levels selected through the configurations screen.
  • Battery Missing: Pump does not detect battery attached.
  • Depleted Battery: Pump stops running, alarms for 3 minutes.
  • Dose Rate Limit Exceeded: The pump will run with a soft dose rate exceeded after a double confirmation, it will not run with a hard dose rate exceeded, rates must be reset within hard limits.
  • Downstream Occlusion: Automatic restart occurs after the downstream occlusion is cleared. Actuation can be set to Low, 6 ± 4 PSI, Medium, 13 ± 6 PSI, or High, 19 ± 9 PSI.
  • Inactivity: Actuates after the pump has been inactive for 2 minutes.
  • Infusion Complete: Occurs when the VTBI reaches zero, at which time a KVO rate begins (the previous running rate or 1 mL/hour, whichever is lower).
  • In Stop: Load set.
  • In Stop: Open side clamp.
  • In Stop: Push run.
  • Low Battery: Less than 30 minutes of battery power remain.
  • Shut Door.
  • Side Clamp Closed: Pump stopped.
  • System Error.
  • Upstream Occlusion.
  • Very Low Battery: Less than 15 minutes of battery power remain.
• Timekeeping: Real time clock, battery backed, 10 year life.
• Logging Memory:
  • 24 hour memory of all set up screens except for ramp/taper modes that are maintained permanently.
  • Separate pump and drug library history logs, minimum of 96 hours each under extensive logging intensive operating conditions.
• AC Power:
  • AC Power Adaptor, low profile, covers only one outlet, Medical Grade (EN60601-1-2), Input: 100 V-AC to 240 V-AC, 50 to 60 Hz/200 mA, Output: 9 V-DC / 800 mA, short circuit protected, cord length 3.0 m (~ 9.75'). Use only SIGMA part number 55079 or equivalent.
  • The SIGMA Spectrum Infusion Pump is classified according to Medical Electrical Equipment standards as:
    • Class II Equipment.
    • Type BF Applied Part.
    • Continuous Operation.
• External Interfaces: RS-232 (RTX and CTS only), IrDA (SIR Encoding Protocol. Supports IrOBEX). Additional Asynchronous Serial Port Expansion bus available at battery terminals. Software upgrades may be performed through external RS-232 or IrDA ports.
• Standards:
  • IEC60601-1 including collateral standards; Third Party Notified Body Testing (Reference Electromagnetic Compatibility Tables).
  • IrDA Serial Infrared Physical Layer Link Specification v1.4(IrPHY), IrDA Serial Infrared Link Access Protocol v1.1 (IrLAP) and IrDA Serial Infrared Link Management Protocol v1.1 (IrLMP), IrDA Tiny TP v1.1.
  • Wireless - 802.11b.
  • EIA-RS-232 levels for Asynchronous Transmit/Receive only (RS232).

Baxter Sigma Spectrum Infusion Pump Literature

Baxter 35700BAX and 35700ABB Sigma Spectrum Infusion Pump Operator's Manual
