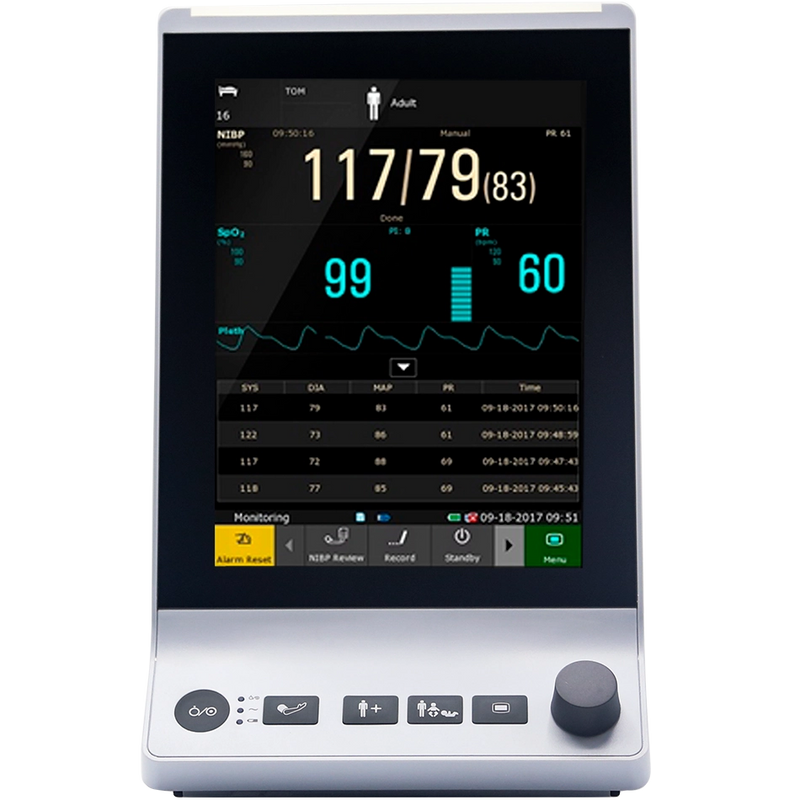

Edan iM3 Vital Sign Monitor

Yes, the Edan iM3 is engineered for exceptional portability, making it an ideal choice for patient rounds and flexible monitoring applications. Its streamlined physical design ensures it is easy to carry and maneuver:

• Ultra-Lightweight: The unit weighs only 2.5 kg, including the rechargeable Lithium-ion battery.

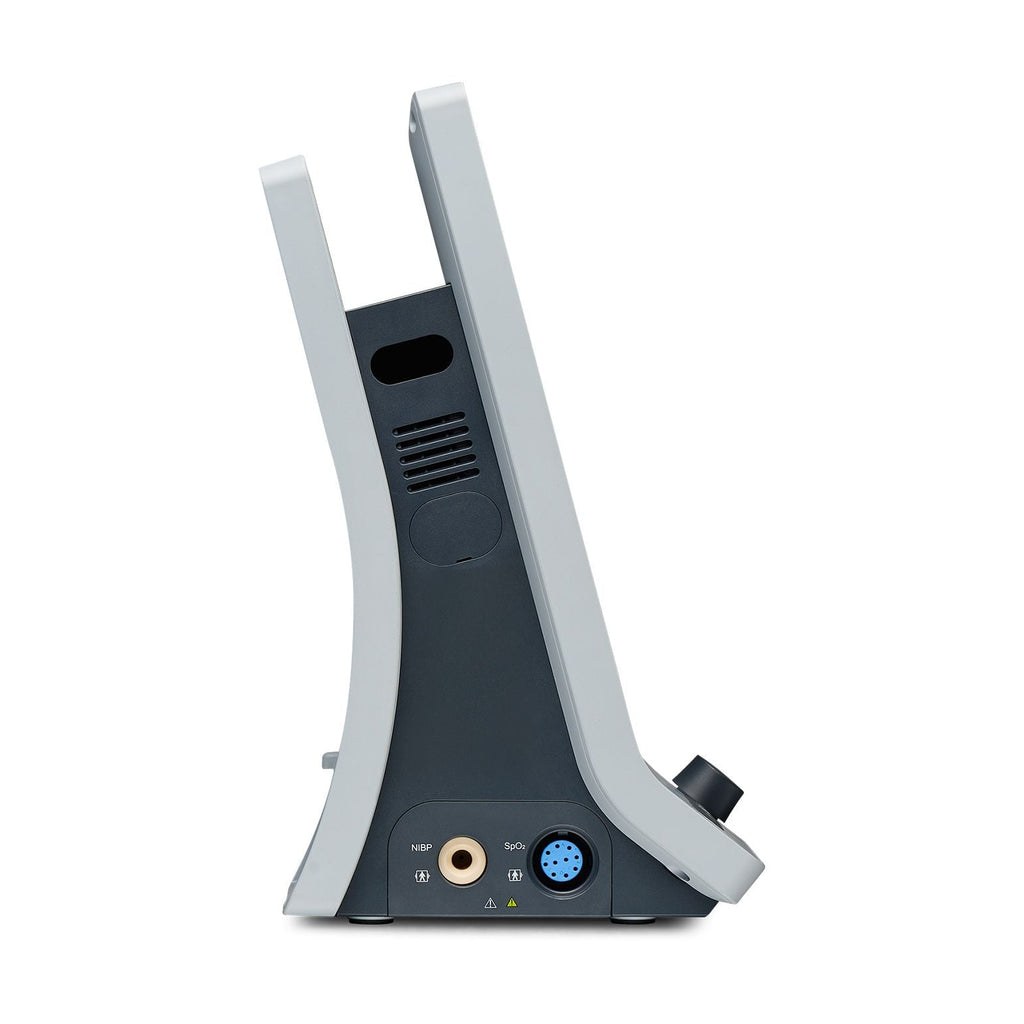

• Ultra-Slim Profile: It features a streamlined design with the thinnest part measuring under 70 mm.
• Ergonomic Handle: A unique carry handle includes a cable-receiving design, helping to manage cables during transport.
• Quiet Operation: It utilizes an echo-friendly, fanless design, ensuring quiet operation in clinical settings.

The standard configuration of the Edan iM3 Vital Sign Monitor is comprehensive, ensuring the unit is immediately ready for NIBP and SpO₂ monitoring.

Included Standard Components

• Power and Portability:
  • Rechargeable Lithium-ion Battery
  • EUR standard Power Cord
  • Potential Equalization Conductor
• SpO₂ (Oxygen Saturation):
  • 1 m Reusable Adult SpO₂ Finger Sensor
  • 2 m SpO₂ 7-Pin Extension Cable
• NIBP (Non-Invasive Blood Pressure):
  • Reusable Adult NIBP Cuff (size range: 27 cm - 35 cm)
  • NIBP Tube

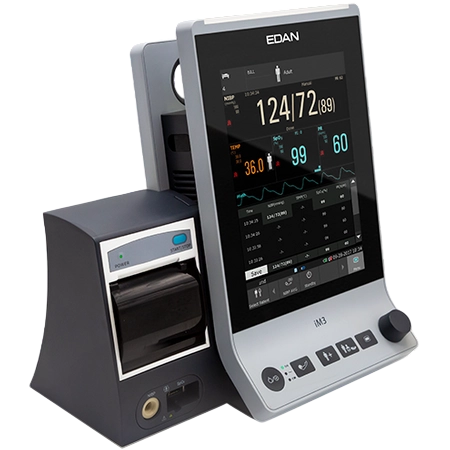

Important Note: Optional monitoring enhancements, such as temperature probes (e.g., Infrared Ear Temp, Oral Quick Temp), Nellcor SpO₂ or Suntech BP options, and the internal printer, must be specifically ordered and are not part of the standard package.

Yes, the Edan iM3 Vital Sign Monitor offers various modular configurations to suit your specific clinical requirements beyond standard NIBP and SpO2 monitoring. You can choose from the following specialized options when selecting your device configuration:

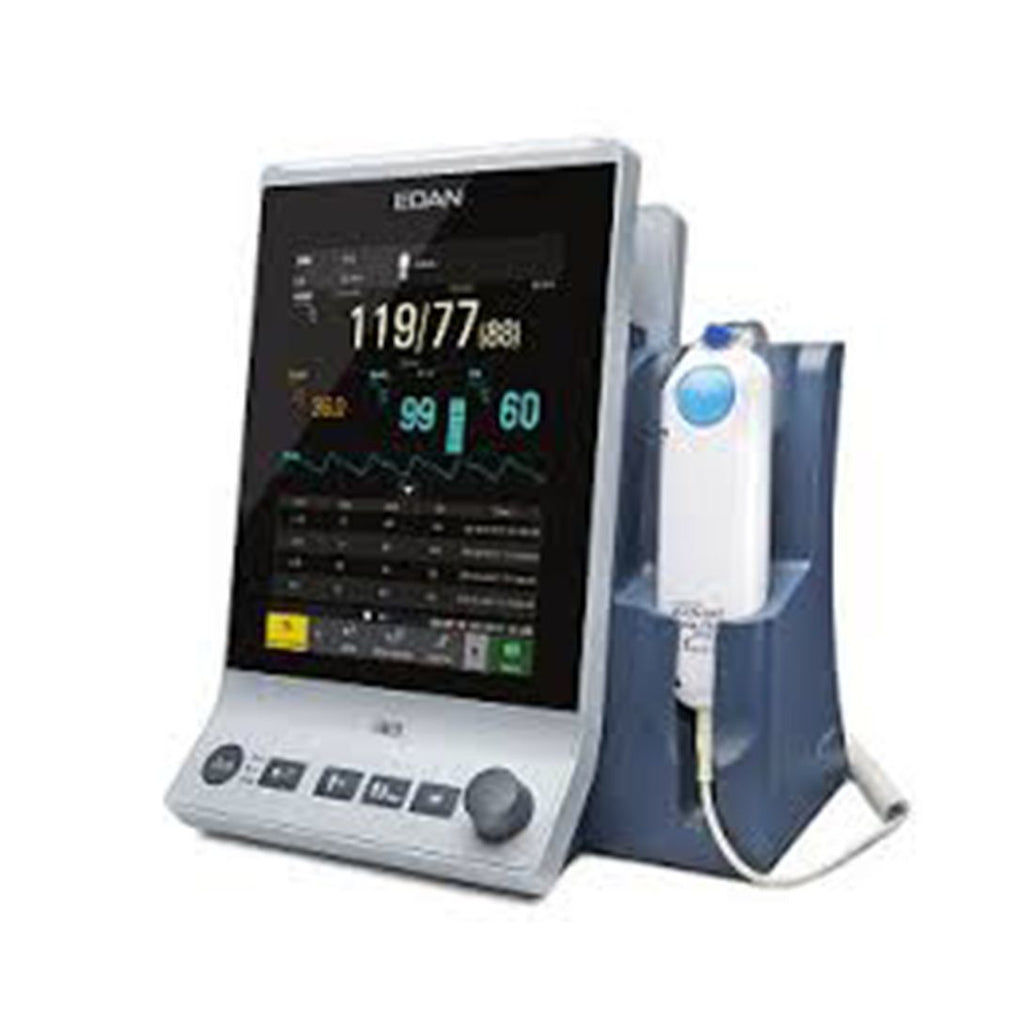

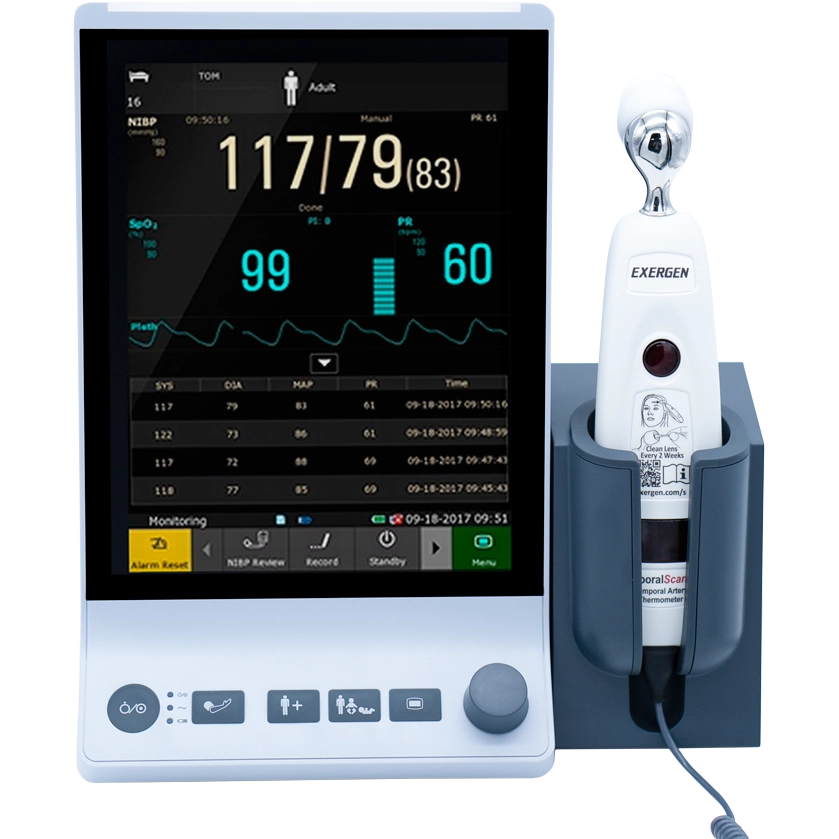

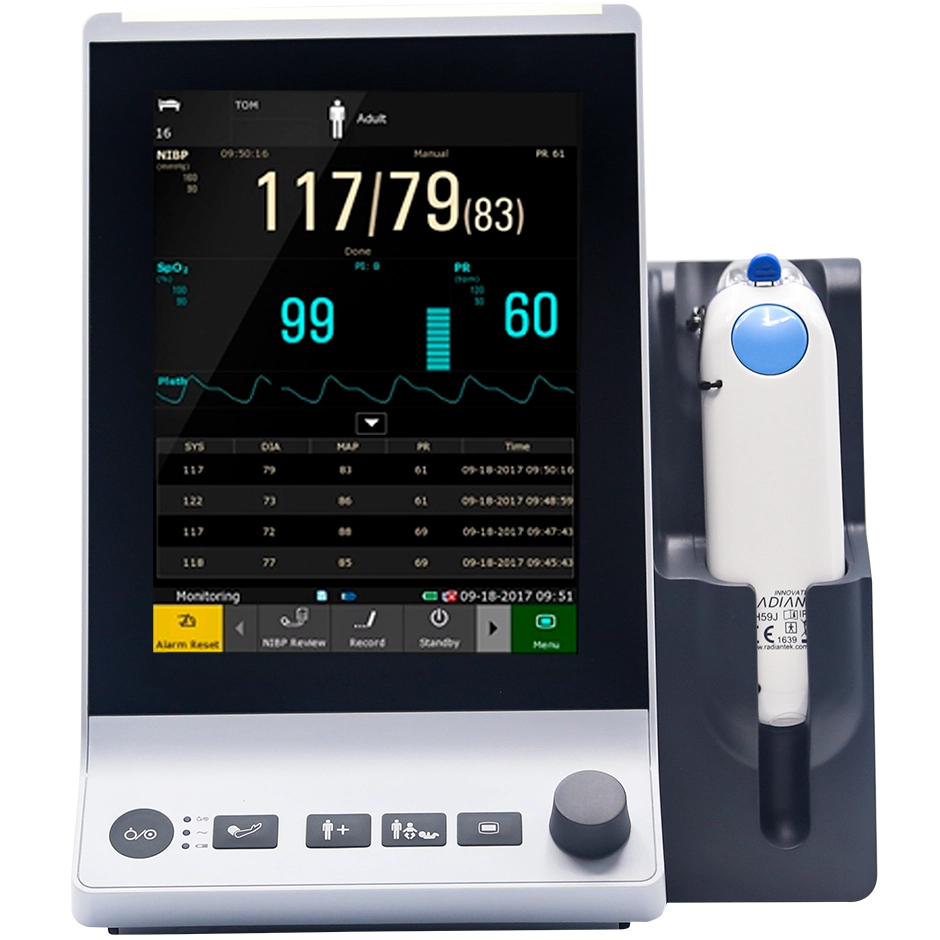

Temperature Monitoring Modules

To provide comprehensive diagnostic data, you can equip the monitor with high-precision temperature probes:

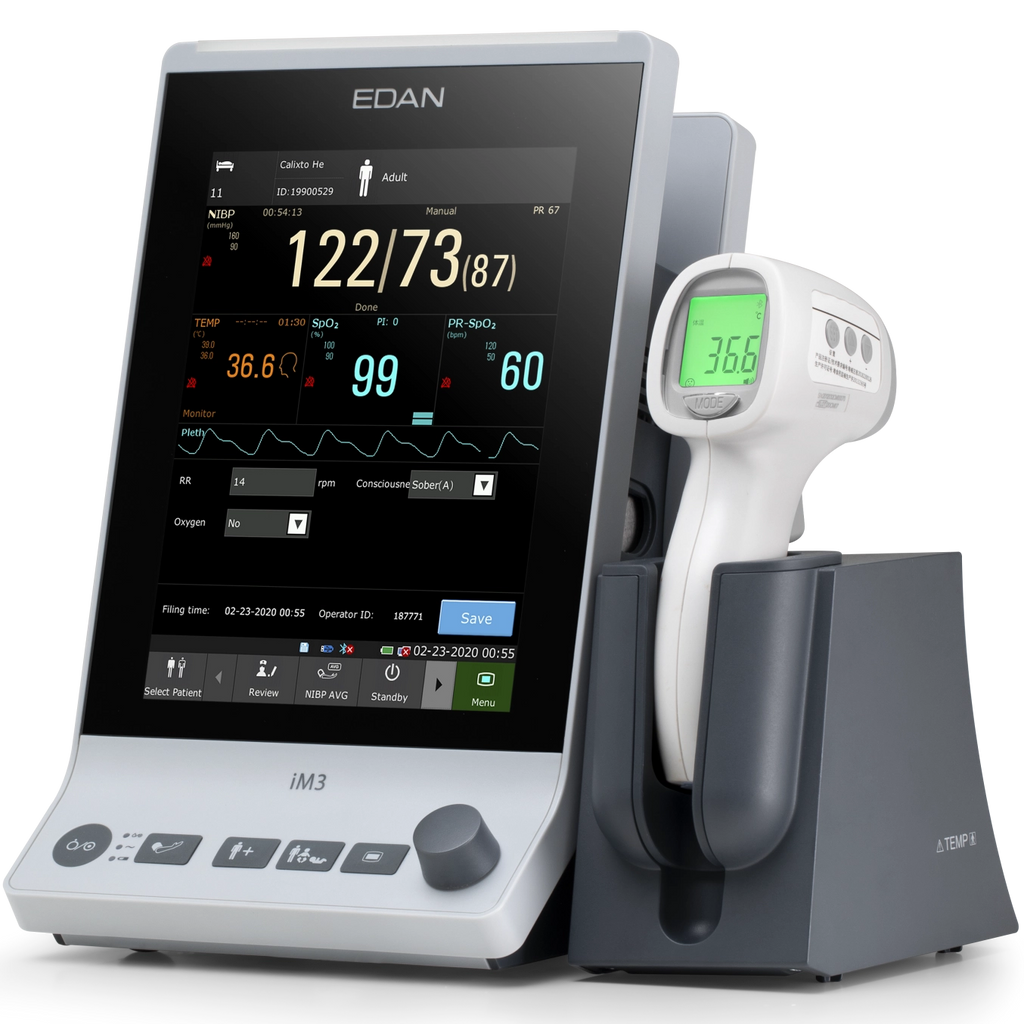

• Infrared Ear Temperature

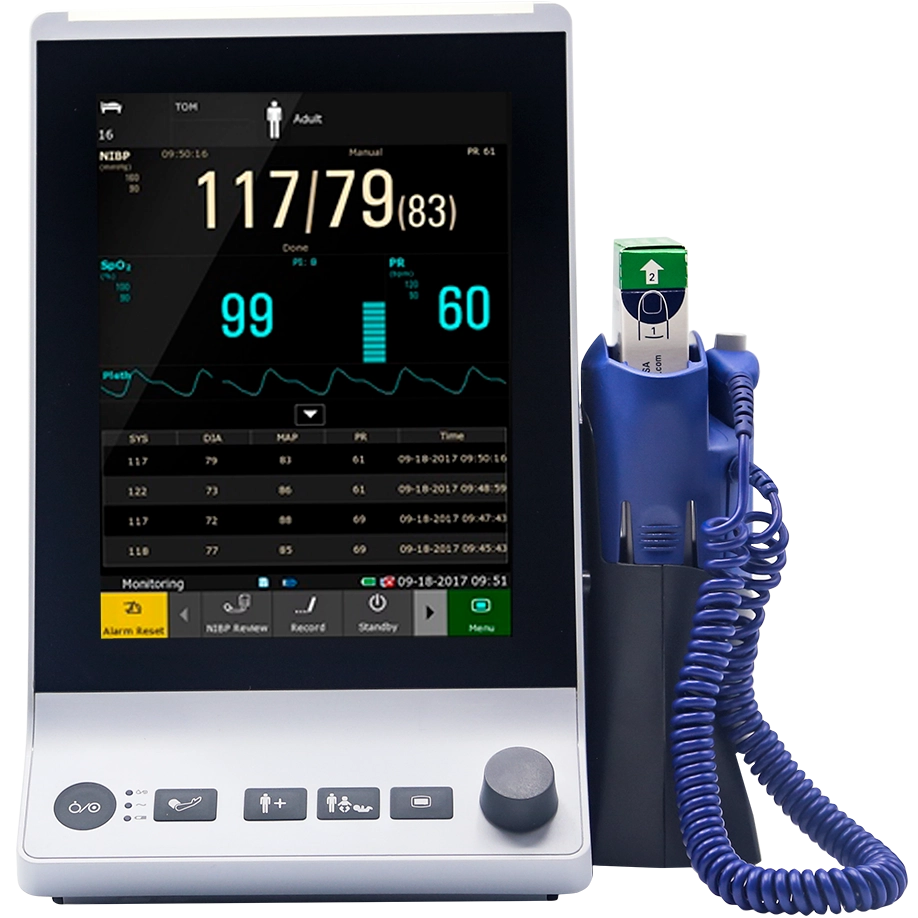

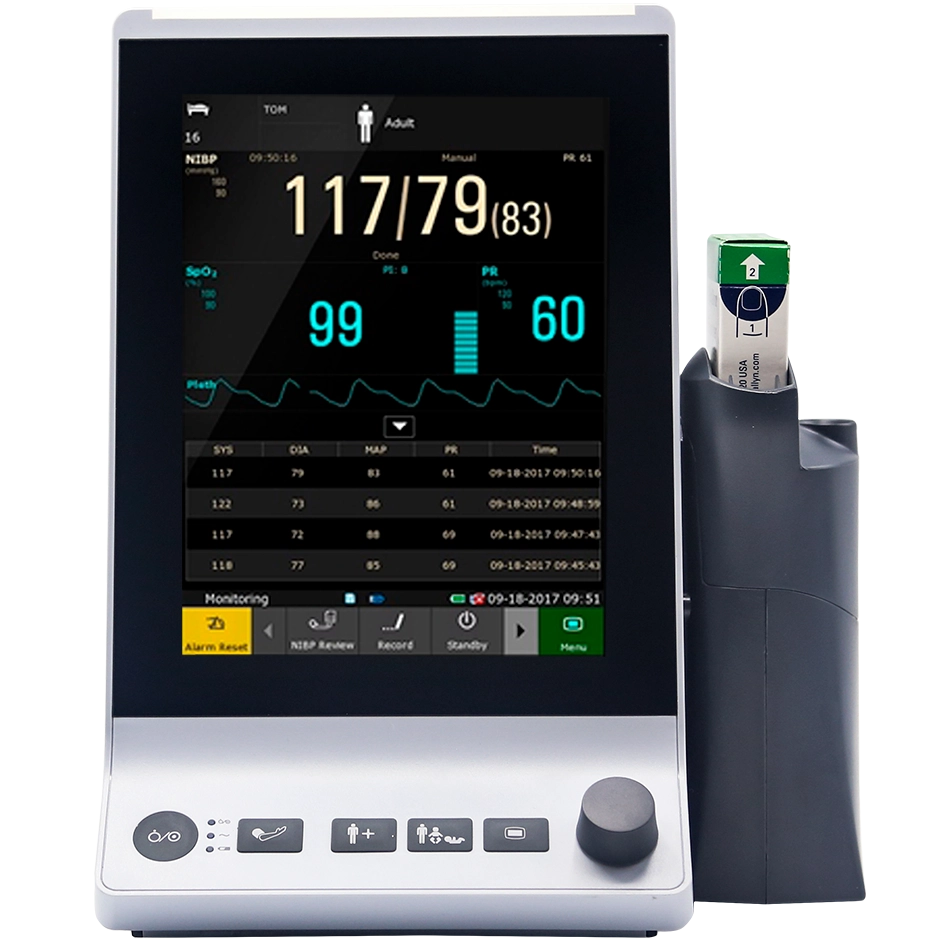

• Edan Quick Oral Temperature
• Covidien Quick Oral Temperature

Advanced Pulse Oximetry

For facilities requiring industry-standard oxygen saturation tracking, the monitor is also available in configurations that include:

• Nellcor SpO2 technology

These modular options allow you to tailor the device to your facility’s specific diagnostic workflows, ensuring you have the precise tools needed for efficient patient assessment.

Yes, the Edan iM3 Vital Sign Monitor features comprehensive data management for secure storage and clinical workflow integration.

Key features include:

• Data Security & Storage: The monitor ensures data integrity with power-off data storage and supports external backup using a flash disk (USB).
• System Integration (Optional): Optional connectivity via LAN, Wi-Fi, or E-link is available. This enables bi-directional communication with MFM-CMS and seamless interaction with HIS/EMR/ADT systems using HL7 compatibility.

Important Note on Viewing Data: Data saved to the USB flash disk is encrypted. To view the captured vital signs data as a PDF on a computer, you must use the proprietary CMS/CMS-Lite software.

Yes, the Edan iM3 Vital Sign Monitor features a crucial safety element designed for maximum visibility in clinical settings:

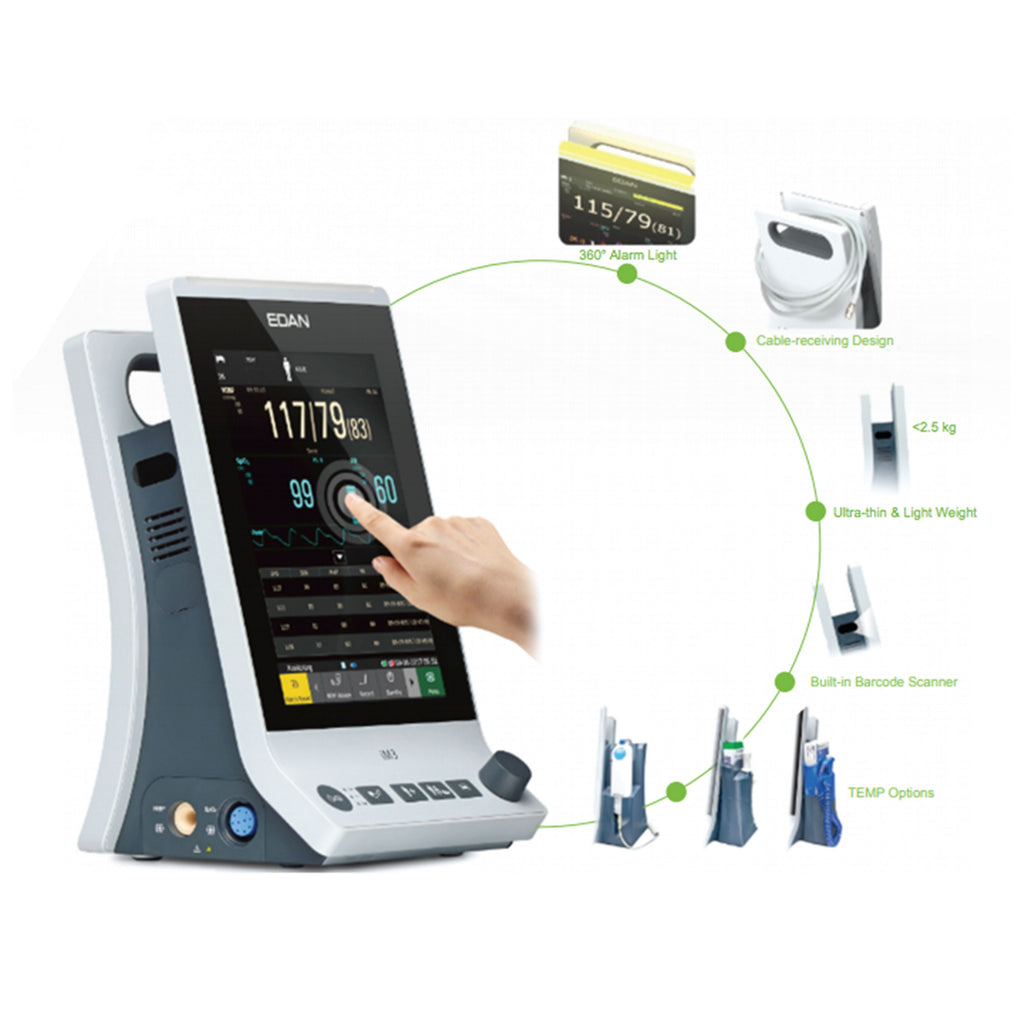

• 360° Visual Alarm Light: It incorporates a unique strip-design alarm light system.
• This ensures that visual alarm notifications are clearly visible from any angle (360°), providing immediate awareness of patient status and facilitating quick response.

Yes, the Edan iM3 is specifically designed to keep your workspace clutter-free. It features a specialized, built-in carry handle that doubles as a storage space, allowing you to neatly tuck away cables and sensors when they are not in use.

Yes, the Edan iM3 Vital Sign Monitor supports an optional built-in barcode scanner. This feature must be configured at the time of purchase.The inclusion of the scanner significantly streamlines workflow and data input by:

• Allowing quick and accurate patient identification.
• Supporting the scanning of QR codes.

This enhancement facilitates effective data management and interaction with hospital systems (HIS/EMR/ADT).

Yes, the Edan iM3 is engineered for adaptability, featuring three distinct adaptive work modes to efficiently support various clinical workflows:

• Monitoring Mode: Ideal for continuous, long-term patient surveillance.
• Spot Mode: Used for quick, immediate vital sign checks.
• Rounds Mode: Optimized specifically for efficiently taking measurements during patient rounds.

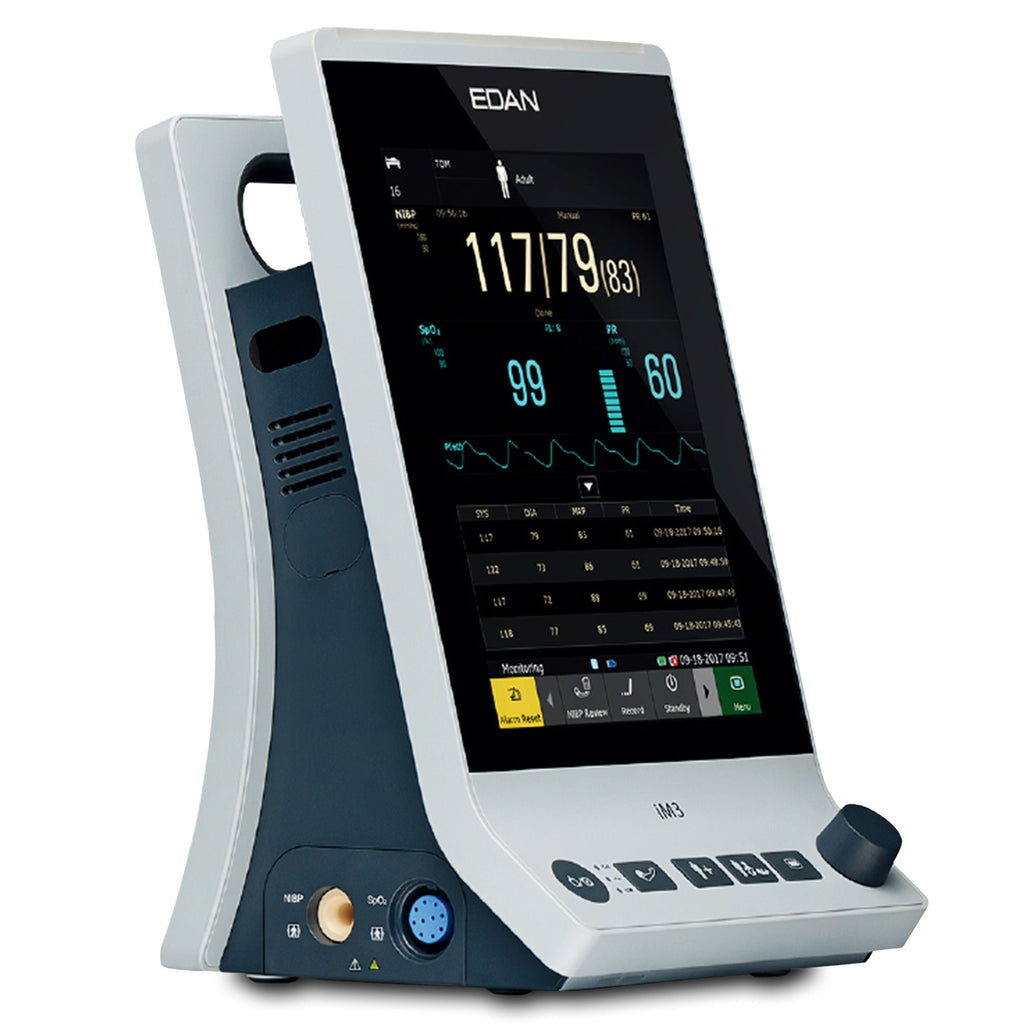

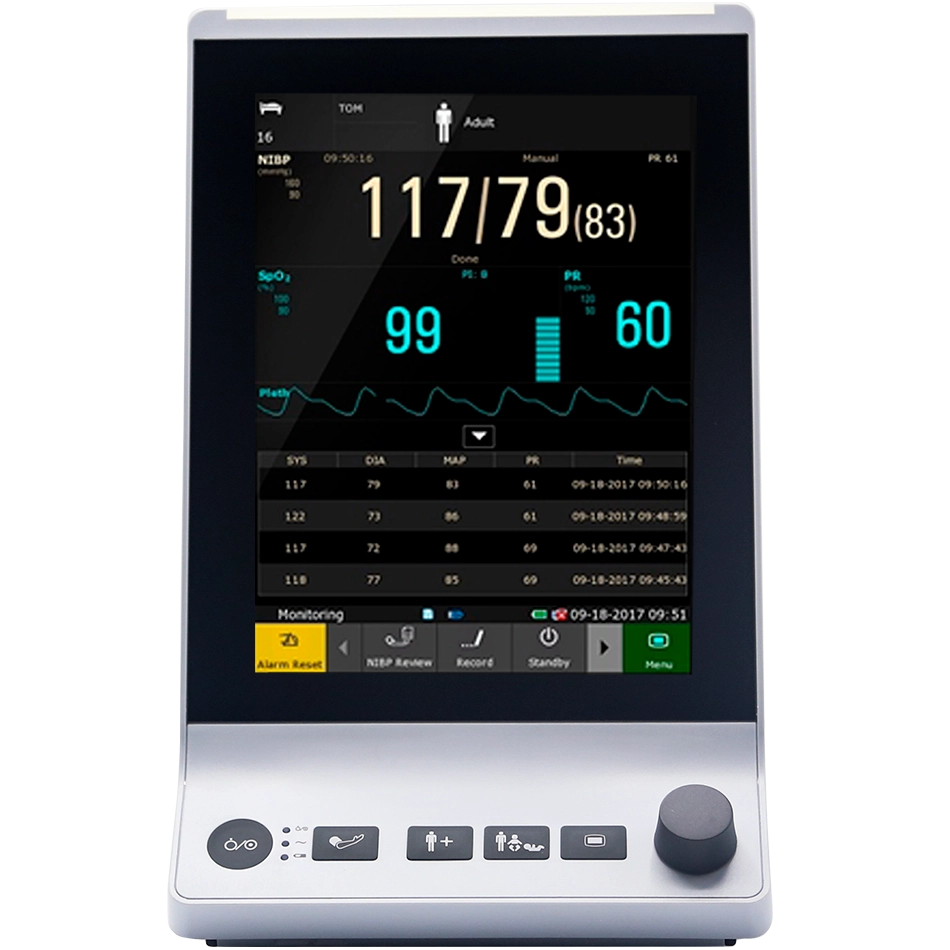

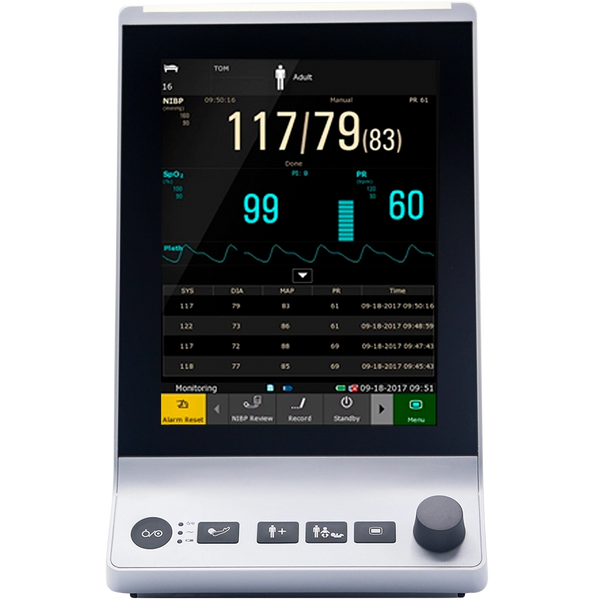

Yes, the Edan iM3 is equipped with a high-quality 8-inch color TFT-LCD full touchscreen.

This display provides an intuitive, user-friendly interface essential for clinical efficiency:

• Capacitive Touch: The screen is capacitive, offering smooth, responsive control for all monitoring functions.
• Clarity: The display ensures clear visibility of vital parameters, supporting Monitoring, Spot, and Rounds work modes.
• Design: The integration of the 8-inch screen helps maintain the device’s streamlined, ultra-slim profile.

Yes, the Edan iM3 features an echo-friendly, fanless design.

This design offers significant benefits, especially in clinical settings:

• Silent Operation: By eliminating the fan, the monitor ensures quiet performance, minimizing disturbance for patients and staff.
• Enhanced Portability: The fanless cooling system contributes to the monitor’s ultra-slim profile (under 70 mm at its thinnest point) and light weight (only 2.5 kg including the battery).
