Ambu BlueSensor SU ECG Electrode (100/Pouch)

(0)
$55.95
$55.95
$0
Sold out
Quantity must be 1 or more

Description

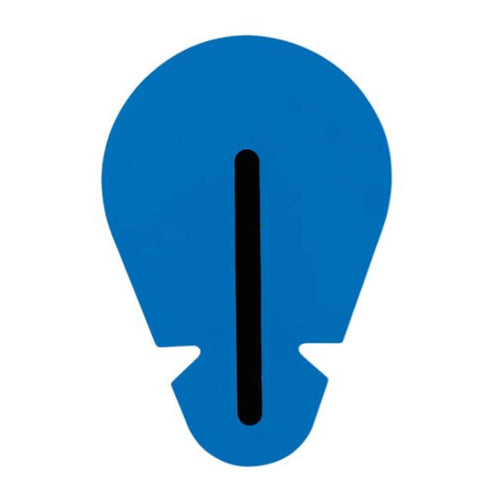

The Ambu BlueSensor SU ECG Electrode is the world's first tab electrode featuring a wet gel. It combines wet gel and superior quick adhesion to provide optimal signal quality during 12-lead diagnostic resting applications. The special occlusive backing material makes the electrode resistant to liquids. Extremely easy to use, it comes with ten SU electrodes packed on a single liner so there is no need to peel off individual backing material.

Features

Ambu BlueSensor SU ECG Electrode Features

  • Highly conductive wet gel.
  • Superior quick adhesion.
  • Unique offset connector - fitting or tab.
  • Occlusive backing material.
  • High-quality Ag/AgCl sensor.

Specifications

Ambu BlueSensor SU ECG Electrode Specifications

  • Electrode Size (max. L x W or diameter in mm): 49 x 33.
  • Skin Contact Size (max. L x W or diameter in mm): 34 x 33.
  • Adhesive Area (in mm2): 772.
  • Height Excluding Connector/Wire (in mm): 1.2.
  • Sensor Material: Silver/silver chloride (Ag/AgCl).
  • Gel System: Wet gel.
  • Sensor Area (in mm2): 50.
  • Gel Area (in mm2): 154.
  • AC Impedance - Typical: 650 Ω.
  • DC Offset voltage - Typical: 0.2 mV.
  • Defibrillation Overload Recovery - Typical: 9.9 mV.
  • Rate of Change of Polarization Potential - Typical: 0.2 mV/s.
  • Combined Offset Instability and Internal Noise: <15 μV.
  • Bias Current Tolerance (over 8 hours): <10 mV.
  • PVC-Free Electrode: Yes.
  • PVC-Free Packaging: Yes.
  • Radiolucent: No.
  • MR Conditional: No.
  • Opened Pouches: 1 month.
  • Unopened Pouches: 24 months from date of production.
  • Bio-Compatible: Yes.
  • Sensor: Silver/silver chloride (Ag/AgCl).
  • Sponge: Polyurethane foam (PUR).
  • Outer Carrier: Polyethylene foam (PE).
  • Outer Adhesive: Acrylate.
  • Upper Part: Polyester film (PET).
  • Fitting: Polypropylene (PP).
  • Connector (stud): Stainless steel.
  • Liner: Siliconized polyester film.
  • Pouches, Inner Layer: Polyethylene (PE).
  • Pouches, Center Layer: Aluminium (AI).
  • Pouches, Outer Layer: Polyester (PET).
  • Boxes: Cardboard.
  • Quantity/Liner: 10.
  • Quantity/Pouch: 60, 100.
  • Quantity/Box: 600/1200, 1200/2400.
  • Minimum Sales: 1200.
  • Connectors: C, A, F.
  • Single Use Only

Literature

Ambu BlueSensor SU ECG Electrode Literature

Ambu ECG Electrodes Instructions for Use

Ambu BlueSensor SU ECG Electrode Datasheet
