Ambu BlueSensor 2300 ECG Electrode

Ambu BlueSensor 2300 ECG Electrode
Ambu BlueSensor 2300 ECG Electrode liner
Ambu BlueSensor 2300 ECG Electrode
Ambu BlueSensor 2300 ECG Electrode liner
Key Features
  • SKU: ABU-BS-TAB-2300-5000
  • Condition:
    Condition: Factory New
  • Country of Origin: India
  • Warranty:
    Warranty: Until Use/Expiration
  • Provides optimal signal quality recordings during a 12-lead diagnostic resting ECG application

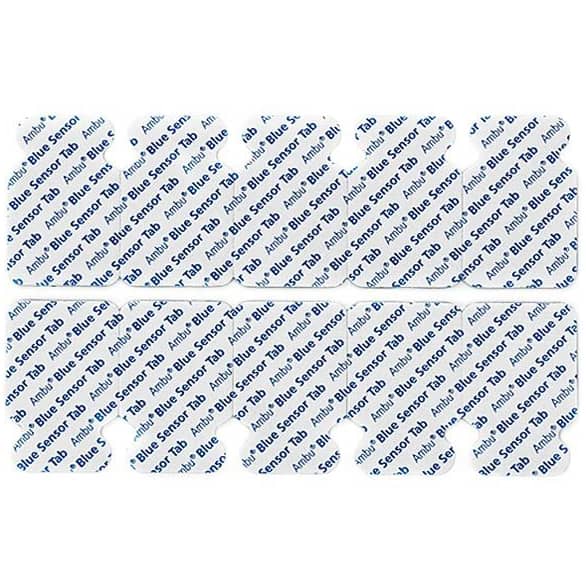

  • Packed on a single liner of 10 so there is no need to peel away individual backing material before use
  • Radiolucent and MR Conditional: Can remain on the patient during x-ray and MRI procedures
  • Skin Friendly Solid Gel: Ensures reliable recordings

  • Learn more:

Contact The Manufacturer
  • MFR: Ambu
    Ships from MFI Medical
  • MPN: BS-TAB-2300/5000
  • Phone: (800) 262-8462
$493.00
Select a Package Quantity
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

Free Returns

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

The Ambu BlueSensor 2300 ECG Electrode is packed on a single liner of 10 so there is no need to peel away individual backing material before use. Featuring skin-friendly solid gel, this innovative sensor provides optimal signal quality recordings during a 12-lead diagnostic resting ECG application.

Warranty: Until Use or Expiration [24 Month Shelf Life (1 Month for opened pouches)].

Features

Ambu BlueSensor 2300 ECG Electrode Features

  • Skin Friendly Solid Gel: Ensures reliable recordings.
  • Convenient in Size: Can be used on most patients.
  • Occlusive Backing Material: Resistant to fluids.
  • Radiolucent and MR Conditional: Can remain on the patient during x-ray and MRI procedures.
  • Connector Type: Tab.

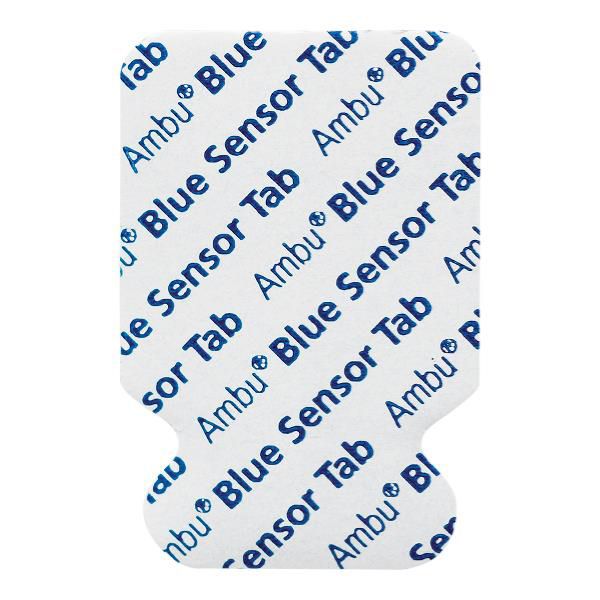

  • Shape: Fish tail.
  • PVC-free packaging.
  • Single use only.

Specifications

Ambu BlueSensor 2300 ECG Electrode Specifications

  • Dimensions:
    • Electrode Size: 24 mm (L) x 23 mm (W).
    • Skin Contact Size: 25 mm (L) x 23 mm (W).
    • Adhesive Area: 575 mm2.
    • Thickness: 0.8 mm (excluding connector/wire).
  • Sensor:
    • Material: Silver/silver chloride (Ag/AgCl).
    • Gel System: Solid.
    • Upper Part: Coated paper/polyester.
    • Liner: Siliconized polyester film.
    • Area: 575 mm2.
    • Gel Area/Measuring Area: 575 mm2.
  • Electrical Data (ANSI/AAMI):
    • AC Impedance - Typical: 250 Ω.
    • DC Offset Voltage - Typical: 0.0 mV.
    • Defibrillation Overload Recovery - Typical: 11 mV.
    • Rate of Change of Polarization Potential - Typical: 0.2 mV/s.
    • Combined Offset Instability and Internal Noise: Less than 0.0 µV.
    • Bias Current Tolerance (over 8 hours): Less than 2.9 mV.
  • Packaging:
    • Pouches:
      • Inner Layer: Ionomer (Surlyn).
      • Center Layer: Aluminum (Al).
      • Outer Layer: Coated paper polyethylene.
    • Boxes: Cardboard.

Package Quantities

Ambu BlueSensor 2300 ECG Electrode Package Quantities

  • #BS-TAB-2300/100: Pack of 100.
  • #BS-TAB-2300/500: Box of 500.
  • #BS-TAB-2300/5000: Case of 5000.
