Ambu BlueSensor SU ECG Electrode (100/Pouch)

Ambu BlueSensor SU ECG Electrode
Ambu BlueSensor SU ECG Electrode Single Liner

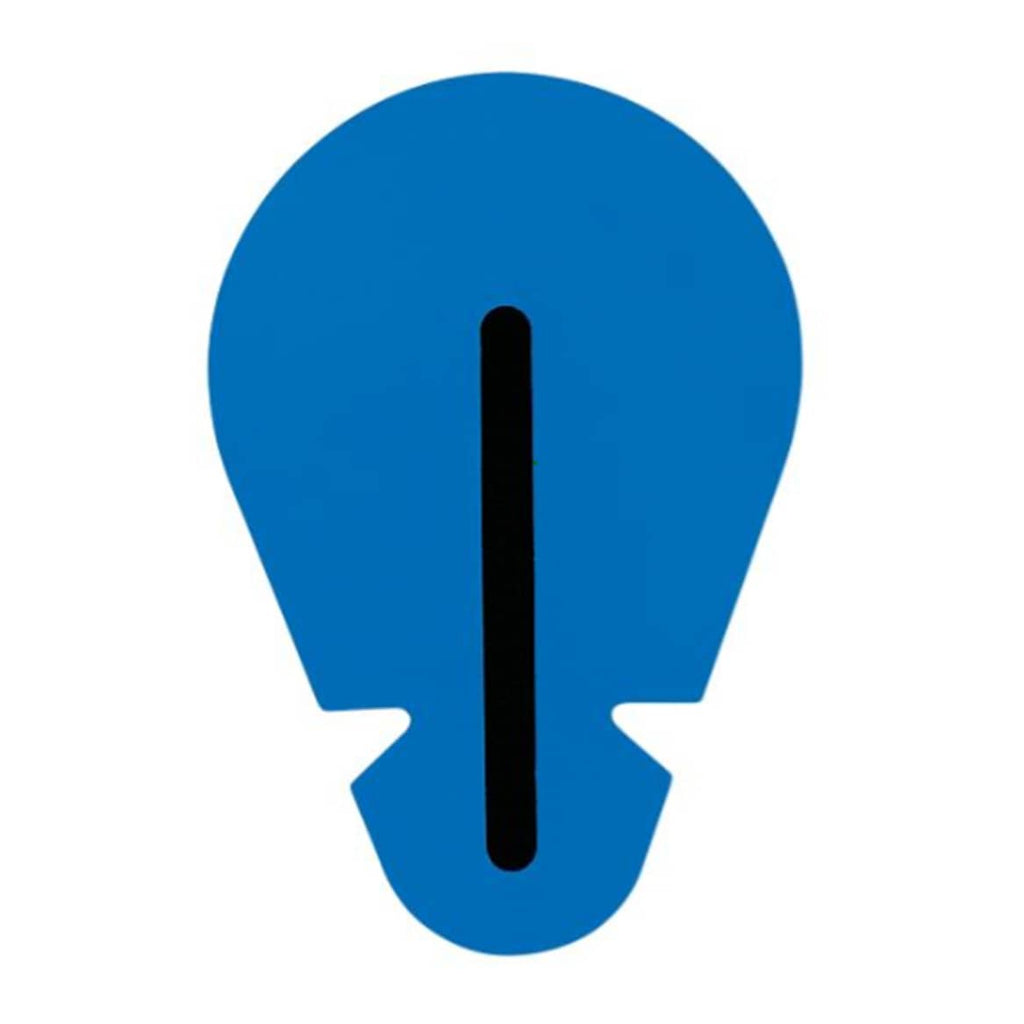

Ambu BlueSensor SU ECG Electrode

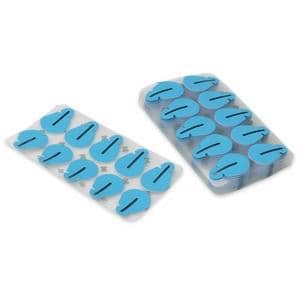

Ambu BlueSensor SU ECG Electrode Single Liner
Key Features
  • SKU: ABU-SU-00-C-100
  • Condition: Factory New
  • Warranty: Not Available
  • Weight: 0.23 lb
  • Highly conductive wet gel
  • Superior quick adhesion
  • Occlusive backing material
  • High-quality Ag/AgCl sensor

  • Learn more:

Contact The Manufacturer
  • MFR: Ambu Ships from MFI Medical
  • MPN: SU-00-C
  • Phone: (800) 262-8462
$25.05

+Free Shipping*

12+ In Stock

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Ambu BlueSensor SU ECG Electrode is the world's first tab electrode featuring a wet gel. It combines wet gel and superior quick adhesion to provide optimal signal quality during 12-lead diagnostic resting applications. The special occlusive backing material makes the electrode resistant to liquids. Extremely easy to use, it comes with ten SU electrodes packed on a single liner so there is no need to peel off individual backing material.

Features

Ambu BlueSensor SU ECG Electrode Features

  • Highly conductive wet gel.
  • Superior quick adhesion.
  • Unique offset connector - fitting or tab.
  • Occlusive backing material.
  • High-quality Ag/AgCl sensor.

Specifications

Ambu BlueSensor SU ECG Electrode Specifications

  • Electrode Size (max. L x W or diameter in mm): 49 x 33.
  • Skin Contact Size (max. L x W or diameter in mm): 34 x 33.
  • Adhesive Area (in mm2): 772.
  • Height Excluding Connector/Wire (in mm): 1.2.
  • Sensor Material: Silver/silver chloride (Ag/AgCl).
  • Gel System: Wet gel.
  • Sensor Area (in mm2): 50.
  • Gel Area (in mm2): 154.
  • AC Impedance - Typical: 650 Ω.
  • DC Offset voltage - Typical: 0.2 mV.
  • Defibrillation Overload Recovery - Typical: 9.9 mV.
  • Rate of Change of Polarization Potential - Typical: 0.2 mV/s.
  • Combined Offset Instability and Internal Noise: <15 μV.
  • Bias Current Tolerance (over 8 hours): <10 mV.
  • PVC-Free Electrode: Yes.
  • PVC-Free Packaging: Yes.
  • Radiolucent: No.
  • MR Conditional: No.
  • Opened Pouches: 1 month.
  • Unopened Pouches: 24 months from date of production.
  • Bio-Compatible: Yes.
  • Sensor: Silver/silver chloride (Ag/AgCl).
  • Sponge: Polyurethane foam (PUR).
  • Outer Carrier: Polyethylene foam (PE).
  • Outer Adhesive: Acrylate.
  • Upper Part: Polyester film (PET).
  • Fitting: Polypropylene (PP).
  • Connector (stud): Stainless steel.
  • Liner: Siliconized polyester film.
  • Pouches, Inner Layer: Polyethylene (PE).
  • Pouches, Center Layer: Aluminium (AI).
  • Pouches, Outer Layer: Polyester (PET).
  • Boxes: Cardboard.
  • Quantity/Liner: 10.
  • Quantity/Pouch: 60, 100.
  • Quantity/Box: 600/1200, 1200/2400.
  • Minimum Sales: 1200.
  • Connectors: C, A, F.
  • Single Use Only

Literature

Frequently asked questions

What are the dimensions of the electrode?

The Ambu BlueSensor SU ECG Electrode has precise dimensions, ensuring effective skin contact and signal quality for 12-lead diagnostic resting applications:

  • Maximum Electrode Size (Length x Width): 49 mm x 33 mm
  • Skin Contact Size (Length x Width): 34 mm x 33 mm
  • Adhesive Area: 772 mm²
  • Height (Excluding Connector/Wire): 1.2 mm
Is conductive wet gel used for optimal signal?

Yes, the Ambu BlueSensor SU ECG Electrode uses a specialized and highly conductive wet gel system to ensure optimal signal quality for 12-lead diagnostic resting applications. This is notable as it is one of the world’s first tab electrodes to incorporate this feature.

Key components supporting signal quality include:

  • Wet Gel Technology: Provides the highly conductive medium necessary for reliable data transmission.
  • Sensor Material: Utilizes a premium Silver/silver chloride (Ag/AgCl) sensor.
  • Rapid Adhesion: The electrode is designed for superior quick adhesion upon application, maintaining reliable electrical contact.
How many electrodes are included per pouch?

The Ambu BlueSensor SU ECG Electrode (100/Pouch) variant includes 100 electrodes per pouch.

These electrodes are designed for maximum convenience and faster workflow during 12-lead diagnostic resting applications:

  • Quantity per Pouch: 100 electrodes.
  • Liner Organization: They are supplied ten (10) electrodes per single liner, which eliminates the need to peel individual backing materials and streamlines application.
Is the Ambu BlueSensor PVC-free?

Yes, this is a key feature of the design. Both the Ambu BlueSensor SU electrode and its packaging are PVC-free, meeting specific compliance standards.

What is the shelf life of unopened electrode pouches?

The shelf life for unopened pouches of the Ambu BlueSensor SU ECG Electrode is 24 months from the date of production.

Once a pouch is opened, the shelf life is reduced to 1 month.

What ensures optimal ECG signal quality?

The Ambu BlueSensor SU is specifically engineered to provide optimal signal quality for 12-lead diagnostic resting ECG monitoring. This performance is achieved through the combination of highly specialized components:

  • Highly Conductive Wet Gel: Unlike dry electrodes, the wet gel system ensures immediate and reliable electrical contact, which is crucial for superior signal acquisition.
  • Superior Quick Adhesion: This feature provides fast, reliable adherence to the skin, stabilizing the electrode quickly and minimizing artifacts from movement.
  • Ag/AgCl Sensor Material: The sensor is made from Silver/silver chloride (Ag/AgCl), known for delivering stable and high-quality electrical performance.
Does this ECG electrode have liquid-resistant backing?

Yes, the Ambu BlueSensor SU ECG Electrode features an occlusive backing material. This specialized backing provides resistance to liquids, ensuring the integrity of the electrode is maintained during use.

Is the electrode packaging convenient to use?

Yes, the packaging is highly convenient for rapid deployment. Ten Ambu BlueSensor SU electrodes are supplied on a single liner, which simplifies application by eliminating the need to peel off individual backing materials. This design facilitates a quick and efficient workflow during 12-lead diagnostic resting ECG monitoring.

What high-quality material is used for the sensor?

The sensor in the Ambu BlueSensor SU ECG Electrode is made from silver/silver chloride (Ag/AgCl), a high-quality material known for reliable performance during ECG procedures.

Are these electrodes single-use?

Yes, the Ambu BlueSensor SU ECG Electrode is designed for single use only to ensure optimal performance and hygiene for each diagnostic resting ECG application.
