Description

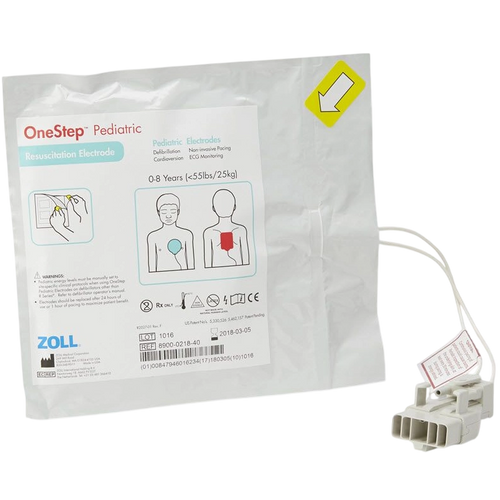

The ZOLL OneStep Pediatric Electrode is designed for pediatric patients - children who are under 8 years old, and up to 55 pounds, while also enabling defibrillation, pacing, and cardioversion.
Warranty: 90 Days (2 Year Shelf Life).
When used with the R Series defibrillators, this electrode uses a unique pediatric algorithm that reduces the likelihood that a compensating rhythm will be terminated and ensures any unique pediatric ECG morphology will be accurately identified when a shock or cardioversion is indicated. When attached to the R Series, the defibrillator will automatically lower the starting shock energy to pediatric levels (50 joules) to ensure safe defibrillation.
Keeping track of electrode expiration is easy with the OneStep Pediatric Electrodes, as alerts will let you know when expiration approaches. In addition, the R Series conducts a daily Code-Ready test automatically without disconnecting the electrodes. A green check mark will be displayed if the R Series is Code-Ready, a red X if it is not.
Specifications
ZOLL OneStep Pediatric Electrode Specifications
- Built-in CPR sensor.
- Age: 0 to 8 years.
- Weight: < 55 pounds (25 kg).
- Pacing Time: 1 hour.
- Pre-Connect: Yes (CodeReady Connector).
- Lead Wire Length: 34".
- Compatibility: E, M, R, and X Series defibrillators.
- Conductive Gel: Solid.
- Conductive Element: AgCl sensor.
- Packaging: Protective outer tray containing multilayer foil laminate pouch.
- Non-sterile.
Package Quantities
ZOLL OneStep Pediatric Electrode Package Quantities
- #8900-0218-40: 1 Pair.
- #8900-0215-40: 8 Pairs.
Literature
ZOLL OneStep Pediatric Electrode Literature
Zoll Pediatric Solutions Brochure
