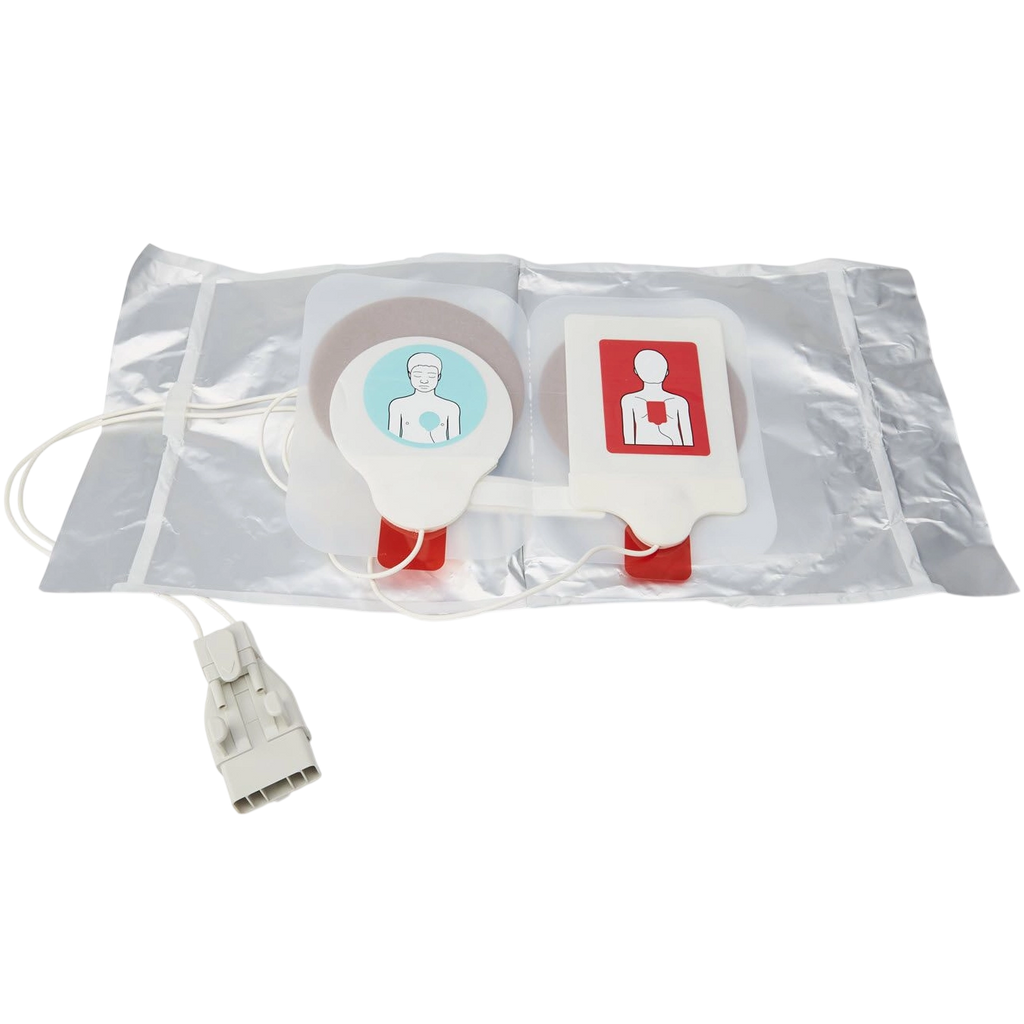

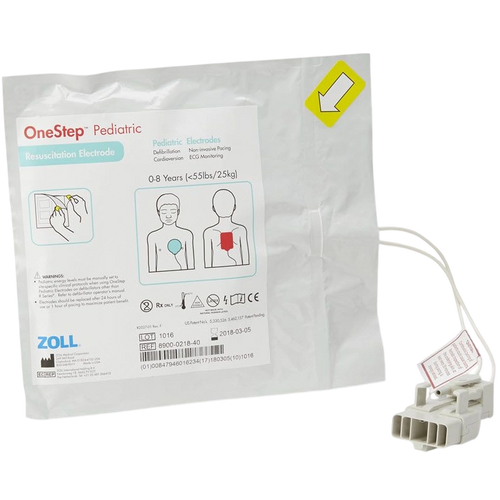

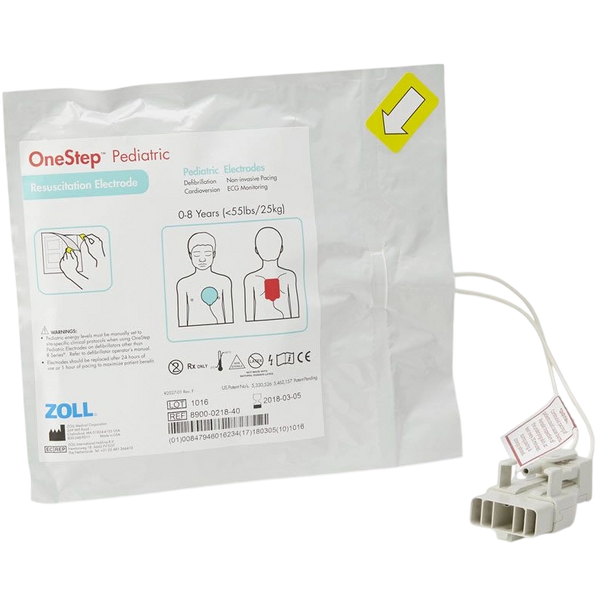

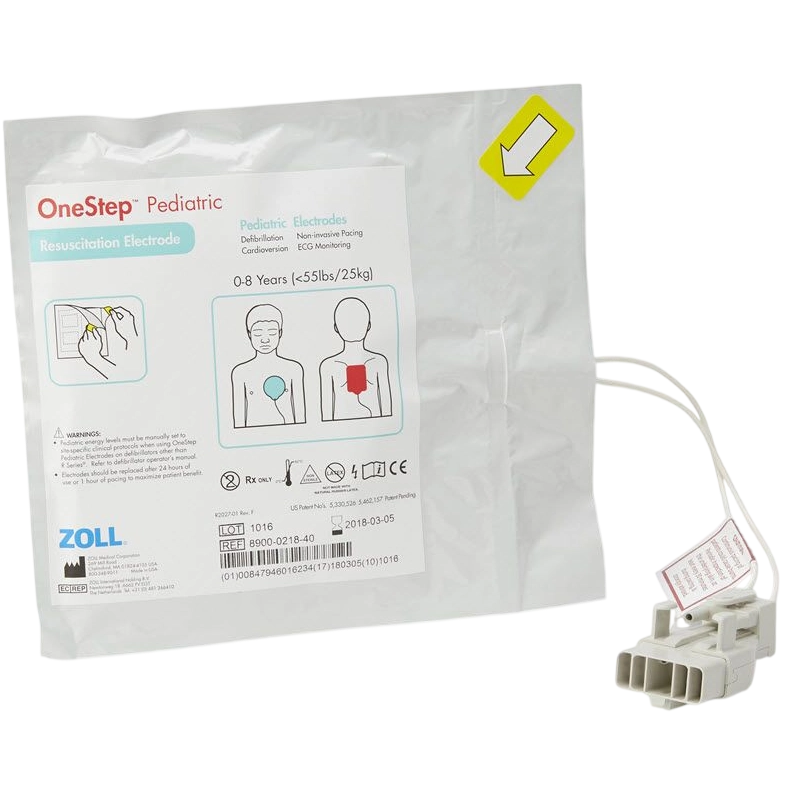

ZOLL OneStep Pediatric Electrode

These OneStep electrodes are engineered for the safe resuscitation of young patients, based on the following limits:

• Patient Age Range: 0 to 8 years
• Maximum Patient Weight: Less than 55 pounds (25 kg)

Enhanced Pediatric Safety Feature

When utilized with compatible Zoll R Series defibrillators, these electrodes automatically activate a unique pediatric algorithm. This system immediately sets the starting shock energy to an appropriate and safe level of 50 joules.

These electrodes are compatible with Zoll E, M, R, and X Series Defibrillators.

No, these electrodes are non-sterile.

Yes, the Zoll OneStep Pediatric Resuscitation Electrodes include an integrated CPR sensor built directly into the pad. This functionality is essential for providing real-time feedback on compression quality during pediatric resuscitation efforts.

These electrodes are specifically designed for pediatric patients (ages 0-8 or under 55 lbs / 25 kg) and offer powerful multi-functionality and safety integration:

• Multi-Function: A single set of electrodes supports defibrillation, pacing (up to 1 hour), and cardioversion.
• Pediatric Safety: When used with Zoll R Series defibrillators, a pediatric safety algorithm is automatically activated, limiting the starting shock energy to a safer 50 joules.
• Code-Ready System: The system supports daily automatic testing by the R Series, visually confirming readiness with a green check mark.
• Compatibility: They are compatible with Zoll E, M, R, and X Series Defibrillators.

Yes, these electrodes are engineered to integrate with compatible defibrillators to ensure safe and effective pediatric care.

When the Zoll OneStep Pediatric Electrodes are connected to a Zoll R Series Defibrillator, they automatically activate a specialized Pediatric Safety Algorithm. This integration provides crucial benefits for treating patients aged 0 to 8 years (under 55 pounds/25 kg):

• Automatic Energy Limiting: The defibrillator automatically reduces the initial starting shock energy to a safe, pediatric-appropriate level of 50 joules.
• Enhanced Diagnostics: The algorithm ensures accurate identification of pediatric ECG morphology.
• Integrated CPR Feedback: A built-in CPR sensor provides real-time feedback on the quality of resuscitation efforts.

These electrodes are also multi-functional, supporting defibrillation, pacing, and cardioversion.

Yes, these electrodes are designed with an integrated Pediatric Safety Algorithm to ensure appropriate and safe energy delivery for children.

Key safety features include:

• Automatic Energy Reduction: When these electrodes are connected to a compatible Zoll R Series defibrillator, the system automatically detects them. This integration limits the starting shock energy to a pediatric-appropriate level of 50 joules.
• Pediatric Algorithm Activation: The system activates a unique pediatric algorithm that helps ensure accurate identification of pediatric ECG morphology and prevents termination of compensating rhythms.
• Patient Specifications: These electrodes are specifically designated for patients aged 0-8 years and weighing less than 55 pounds (25 kg).
• Multi-Functionality: They support defibrillation, pacing, and cardioversion, and feature a built-in CPR sensor for real-time feedback on resuscitation quality.

Yes, these Zoll OneStep Pediatric Resuscitation Defibrillator Electrodes feature the CodeReady Connector system, specifically designed to ensure immediate operational readiness in critical moments.

Key benefits of the CodeReady System, especially when used with Zoll R Series defibrillators, include:

• Pre-Connect Capability: The electrodes can remain attached to the device, eliminating setup time in an emergency.
• Automated Readiness Testing: The R Series automatically performs a daily Code-Ready test without requiring the electrodes to be disconnected.
• Visual Confirmation: Readiness is visually confirmed by a green check mark on the device (or a red X if attention is needed).
• Expiration Management: The system provides alerts as the 2-year shelf life of the electrodes approaches, simplifying inventory management.

These pediatric electrodes (for patients 0–8 years, less than 55 pounds/25 kg) are compatible with Zoll E, M, R, and X Series Defibrillators.

Yes, the Zoll OneStep Pediatric Resuscitation Defibrillator Electrodes are designed for comprehensive multi-function therapy for pediatric patients (ages 0-8 years, weighing less than 55 pounds or 25 kg).

These electrodes support three primary therapeutic functions:

• Defibrillation
• Cardioversion
• Pacing (supports up to 1 hour of pacing time)

Key Features and Safety:

• Pediatric Safety Algorithm: When used with Zoll R Series defibrillators, the system automatically activates a pediatric algorithm, limiting the starting shock energy to a safe 50 joules.
• Integrated CPR Feedback: A built-in CPR sensor provides real-time feedback on the quality of resuscitation efforts.
• Compatibility: These electrodes are compatible with Zoll E, M, R, and X Series Defibrillators.
• Code-Ready: They feature a CodeReady Connector that enables the R Series to perform daily automatic readiness testing.

The Zoll OneStep Pediatric Resuscitation Defibrillator Electrodes have a standard 2-year shelf life.

For improved inventory management, when these electrodes are connected to compatible Zoll R Series defibrillators, the system provides alerts when the expiration date approaches.

The pacing time for these electrodes is 1 hour.
