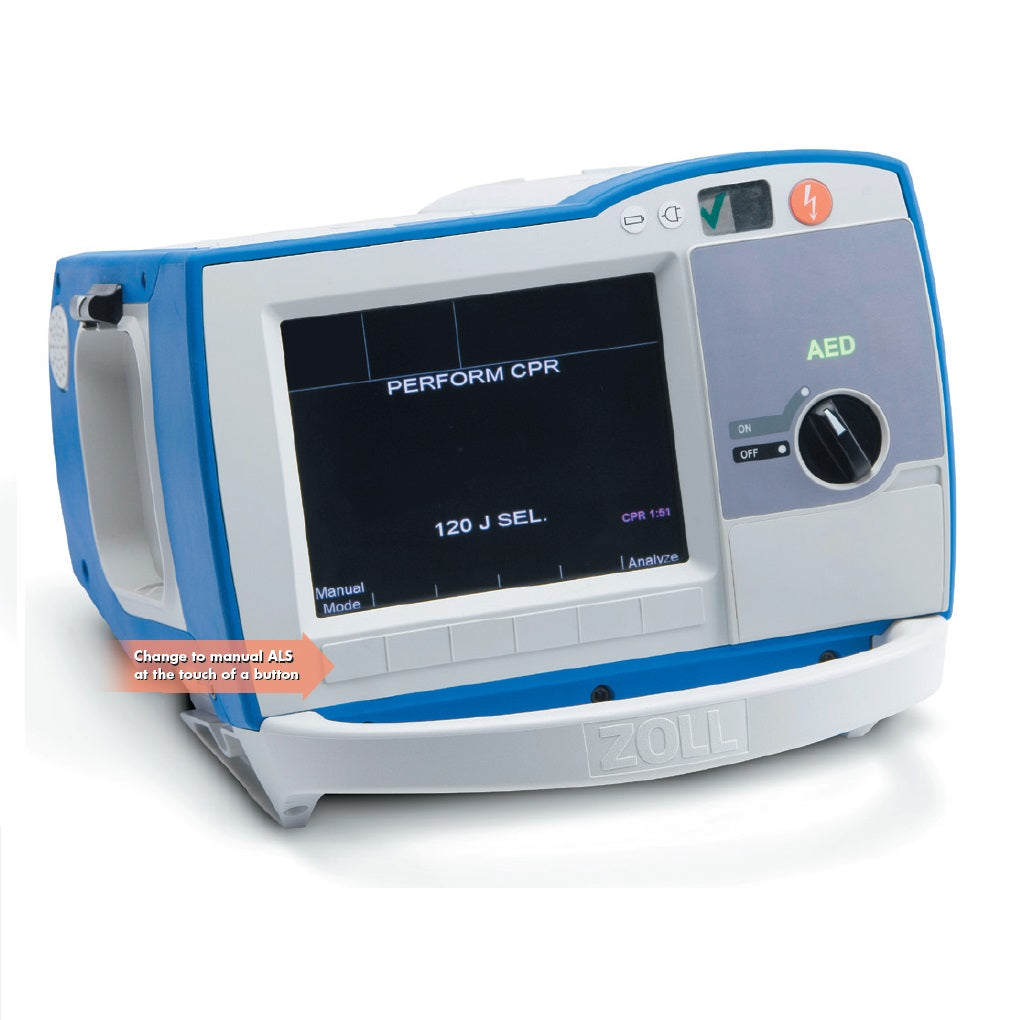

Zoll R Series BLS Defibrillator

Zoll R Series BLS Defibrillator
Key Features
  • SKU: ZOL-30210000001030013
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 10.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Zoll
    Ships from Manufacturer
  • MPN: 30210000001030000
  • Phone: (800) 348-9011
$10,505.00 $9,350.00

+ Free Shipping

Select a Configuration
Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Zoll R Series BLS Defibrillator includes Guidelines 2005-compatible AED with Real CPR Help, manual override, OneStep system, code-readiness testing system, rectilinear biphasic technology, compact flash card slot, 3 lead CG cable with AHA markings, built-in port, integrated AC Power, (120 VAC/ 60 Hz) and optional parameters.

Note: Batteries not included. Zoll SurePower Rechargeable Lithium Ion Battery Pack (#8019-0535-01) may be purchased separately and is compatible with R Series, E Series, and AED Pro Defibrillators.

Warranty: 5 Year Hospital Warranty.

The R Series BLS shows first time responders a simple, one-button AED interface. When the Code Team arrives, a member can simply press a button to turn the BLS device into a full-function manual defibrillator. If pressed, SpO2 becomes functional, and if installed, the pacing function is revealed. This entry _level model allows hospitals with tight budgets to deploy R Series technology. R Series BLS is particularly good for low-acuity area, where advanced capabilities are rarely needed.

R Series is the first device to provide a pediatric electrode with a built-in CPR sensor to help when performing CPR on a child. Because children are not small adults, all the R Series defibrillators feature a pediatric analysis algorithm that is activated when OneStep Pediatric CPR Electrodes are attached.

Configurations

Zoll R Series BLS Defibrillator Configurations

  • #30210000001030013: R Series BLS, Basic with all above features.
  • #30220000001130013: R Series BLS with all above features plus OneStep Pacing Cable (also supports CPR), OneStep Cable Manager, and OneStep ECG leads.
  • #30220001001130013: R Series BLS with all above features plus OneStep Pacing Cable (also supports CPR), OneStep Cable Manager, and OneStep ECG leads. SPO2 (Masimo Pulse Oximetry) is also a feature of this configuration; SPO2 monitors both ECG rate and pulse rate when pacing. Includes reusable adult sensor and 4-foot extension.

Literature

Frequently asked questions

Is a code-readiness testing system included?

Yes, the Zoll R Series BLS Defibrillator features a built-in code-readiness testing system. This functionality is critical for maintaining high reliability, ensuring the device is consistently prepared and operational for immediate use when needed during an emergency.

Does it include a pediatric analysis feature?

Yes, the Zoll R Series BLS Defibrillator supports pediatric patients using a dedicated pediatric analysis algorithm.

This algorithm ensures appropriate treatment analysis for children and is automatically activated when the required OneStep Pediatric CPR Electrodes are attached.

Is the Real CPR Help feedback system included?

Yes, the Zoll R Series BLS Defibrillator includes the proprietary Real CPR Help feedback system. This technology is a core feature designed to assist first responders in delivering high-quality CPR.

It provides real-time guidance on the depth and rate of chest compressions, ensuring they meet professional standards and guidelines for effectiveness.

Is the rechargeable battery pack included?

No, the rechargeable battery pack is not included with the standard configuration of the Zoll R Series BLS Defibrillator and must be purchased separately for portable use.

However, the unit is fully compatible with the recommended Zoll SurePower Rechargeable Lithium Ion Battery Pack (Part #8019-0535-01), available as an optional purchase.

For continuous operation when near an outlet, the device includes:

  • Integrated AC Power supply (120 VAC/ 60 Hz)
What is included with the defibrillator unit?

The Zoll R Series BLS Defibrillator comes standard with the following essential components:

  • Basic R Series BLS unit (configuration dependent)
  • 3-lead ECG cable with AHA markings
  • Integrated AC Power supply (120 VAC/ 60 Hz)

Important Note: The device does not include a battery pack, which is required for portable operation. The Zoll SurePower Rechargeable Lithium Ion Battery Pack (#8019-0535-01) is compatible with this unit and is available for separate purchase.

Does the unit include integrated AC power?

Yes, the Zoll R Series BLS Defibrillator comes standard with integrated AC Power (120 VAC/ 60 Hz). This built-in capability allows the unit to be directly connected to a wall outlet. This is ideal for clinical and hospital settings, ensuring the defibrillator has a continuous and reliable power supply for immediate readiness.

Does it easily transition from AED to manual mode?

Yes, the Zoll R Series BLS Defibrillator is specifically designed for a seamless transition between Basic Life Support (BLS) and Advanced Life Support (ALS).

It functions initially with a simple, one-button AED interface suitable for first responders. Upon the arrival of advanced care personnel, the device can instantly convert to a full-function manual defibrillator by pressing a designated button.

This manual override capability allows the device to adapt quickly to evolving patient needs and enables optional advanced features like pacing and SpO2 monitoring (if those modules are installed).

What configurations are available?

The Zoll R Series BLS Defibrillator is offered in three primary configurations, allowing you to select the appropriate level of monitoring and advanced life support capabilities. All configurations feature the Rectilinear Biphasic Technology and Real CPR Help for compression feedback.

  • Basic: Provides the core functionality, including the simple one-button AED interface and conversion to a full manual defibrillator.
  • OneStep: Includes all Basic features and adds the necessary components (like the Pacing Cable System) to activate the Pacing function when the unit is operating in manual mode.
  • OneStep & SpO2: This comprehensive configuration includes all OneStep features (Pacing) plus the capability for Masimo Pulse Oximetry (SpO2) monitoring, which becomes functional upon transition to manual mode.
Does the defibrillator use rectilinear biphasic technology?

Yes, the Zoll R Series BLS Defibrillator incorporates Rectilinear Biphasic Technology.

This technology is a key feature designed to deliver an optimized electrical waveform for effective defibrillation.

Does this device support comprehensive cardiac monitoring?

Yes, the Zoll R Series BLS Defibrillator is designed for clinical versatility and includes a 3-lead ECG cable featuring AHA markings. This allows for reliable cardiac monitoring alongside its defibrillation and pacing capabilities. For users requiring more extensive data, the unit also features a built-in connectivity port and a compact flash card slot for data management.
