Description

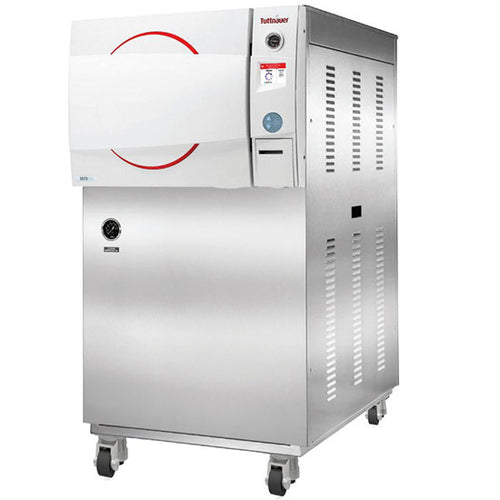

The Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave is an 85 liter autoclave sterilizer that's designed for large clinics and ASC's. It produces hospital grade sterilization with a medium load capacity, and is most ideal for medical clinics, dental clinics, and operating rooms.
Warranty: 2 Years.
As the name suggests, the Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave contains a built-in vacuum system designed for fractionated pre vacuum air removal and post vacuum drying. This removes air pockets from the chamber to ensure full steam sterilization on the entire load. The post vacuum process dries the load efficiently for a bone-dry finish.
The HSG-WS model specifically has been designed for water saving, through an efficient recycling system. In total, it will utilize only five liters of tap water per day. In terms of utility connection, it can be hooked up to existing utilities for distilled water, tap water, and electricity, or can be independent of utilities with only a power connection needed. With the independence feature, the water reservoirs must be manually filled prior to cycles.
Safety features include double-locking doors to prevent accidental openings while the chamber is pressurized, as well as a control lock-out switch that won't start a cycle until the door is locked.
Technical Standards and Compliance
The Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave fulfills the following directives and standards:
Quality Standards
- ISO 9001:2015 - Quality Management Systems.
- EN ISO 13485:2016 Quality Management System – Medical Devices.
- In compliance with 21 CFR part 820 & part 11.
Directives
- MDD 93/42/EEC amended in Directive 2007/47/EEC.
- PED 2014/68/EU - Pressure Equipment Directive.
- 2012/19/EU WEEE and 2017/2102 RoHS.
Technical Standards
- EN 285: 2015 Large steam sterilizer.
- EN 61010-1: 2010.
- EN 61326-1: 2013.
- EN 61010-2-40: 2015.
- FDA Approved.
- ANSI/AAMI/ST8:2013 (R2018).
- ANSI/AAMI - ST55:2016.
- ASME Code section I and section VIII. Div.I.
Features
Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave Features
- For medical clinics, dental clinics, and operating rooms.
- Built-in vacuum system designed for pre vacuum air removal and post vacuum drying.
- Uses up to five liters of tap water per day.
- Can be connected to utilities for water, or stand independent and be manually filled with water.
- Double-locking doors and control lock-out switch prevents accidental openings.
Specifications
Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave Specifications
- Chamber Dimensions: 15.2" x 29.9".
- Chamber Volume: 85 liters.
- No. of Trays: 2.
- Tray Dimensions:
- Small: 11.3" x 1" x 26.6".
- Large: 13.8" x 1" x 26.6".
- Overall Dimensions: 28.4" x 53.8" x 46.5".
- Autoclave Weight: 397 lb.
- Voltage/Frequency: 3 ph, 230 Volts, 25 Volts, 25 Amp., 60Hz.
- Power: 9 kW.
