Description

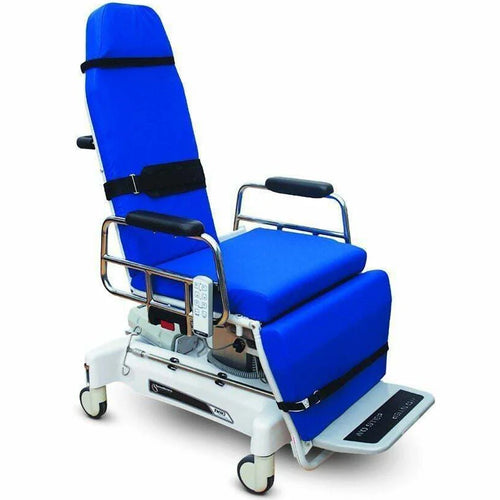

The TransMotion Medical TMM3 Video Fluoroscopy Swallow Study Stretcher-Chair (#TMM3-B) includes a set of new mattress pads, a new battery, and a charger.
Warranty: 90 Days - Parts and Labor.
Note: Patient straps and belts pictured as well as the Back Rest Extension with Pad (#TMA13-150) are sold separately.
Featuring powered patient positioning designed specifically to aid in performing barium swallow studies, the TransMotion Medical TMM3 Stretcher-Chair serves as a procedure chair, transport device, and recliner all in one. It is extremely easy to convert from chair to stretcher configurations and utilizes a 90° rotating seat to eliminate transfers and allow patients to remain in-chair for both lateral and A/P imaging.
Features
TransMotion Medical TMM3 Video Fluoroscopy Swallow Study Stretcher-Chair Features
- 350 lb patient weight capacity is the highest capacity for any available swallow-chair.
- 90° rotating seat.
- Radiolucent back.
- Powered patient positioning.
- Auto-extending footrest.
- Swing-and-tuck side rails.
- Manual quick release back.
Specifications
TransMotion Medical TMM3 Video Fluoroscopy Swallow Study Stretcher-Chair Specifications
- Seat Height:
- Low: 2.1" (64 cm).
- High: 33" (83.82 cm).
- Seat Width: 24" (61 cm).
- Back Width:
- No Extension: 15" (38 cm).
- With Optional Extension: 24" (61 cm).
- Overall Width (rails up): 30.5" (77.47 cm).
- Patient Surface Length:
- Standard: 77" (195.58 cm).
- With optional Manual Folding Foot-Rest: 70.4" (179 cm).
- Overall Chair Height:
- Low: 55.5" (141 cm).
- High: 63" (160 cm).
- Backrest Articulation: 0 to 86°.
- Side Rail Height When Up (seat pan to rail top): 10.88" (27.64 cm).
- Side Rail Length: 21.1" (54 cm).
- Wheelbase:
- Standard: 30" (L) x 20" (W) (76 cm x 51 cm).
- Short (S) Option: 26" (L) x 20" (W) (66 cm x 51 cm).
- Maximum Patient Weight: 350 lb (158 kg).
- Charging System:
- Input Volts: 100 - 240 VAC.
- Current: 1.0 A (max).
- Frequency: 50/60 Hz.
- Output: +24 V DC 1.4 a.
- Max Power: 36.0 W.
- Battery: 24 V - 4.5 AH Sealed Lead Acid.
Configurations
TransMotion Medical TMM3 Video Fluoroscopy Swallow Study Stretcher-Chair Configurations
- #TMM3-A: with 120 V A/C.
- #TMM3-B: with Battery.
- #TMM3-FB: with Folding Foot Rest and Battery.
- #TMM3-SB: with Short Wheel Base and Battery.
Literature
TransMotion Medical TMM3 Video Fluoroscopy Swallow Study Stretcher-Chair Literature
TransMotion Medical TMM3 Video Fluoroscopy Stretcher Chair Owners Operating and Maintenance Manual
