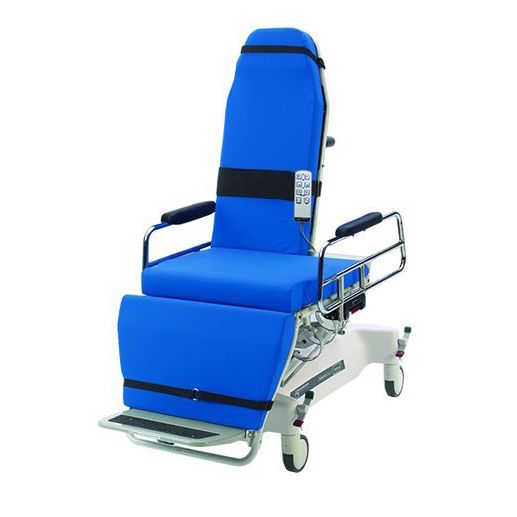

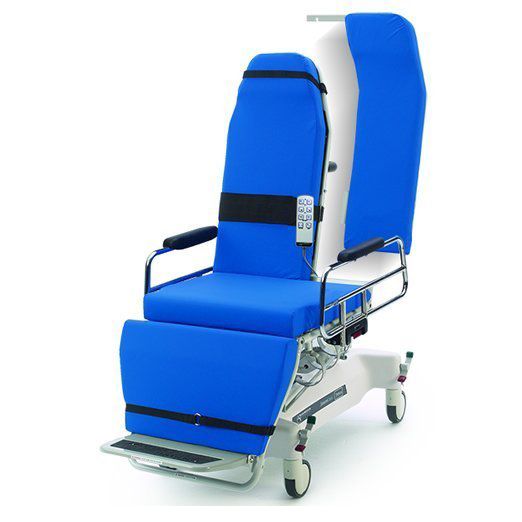

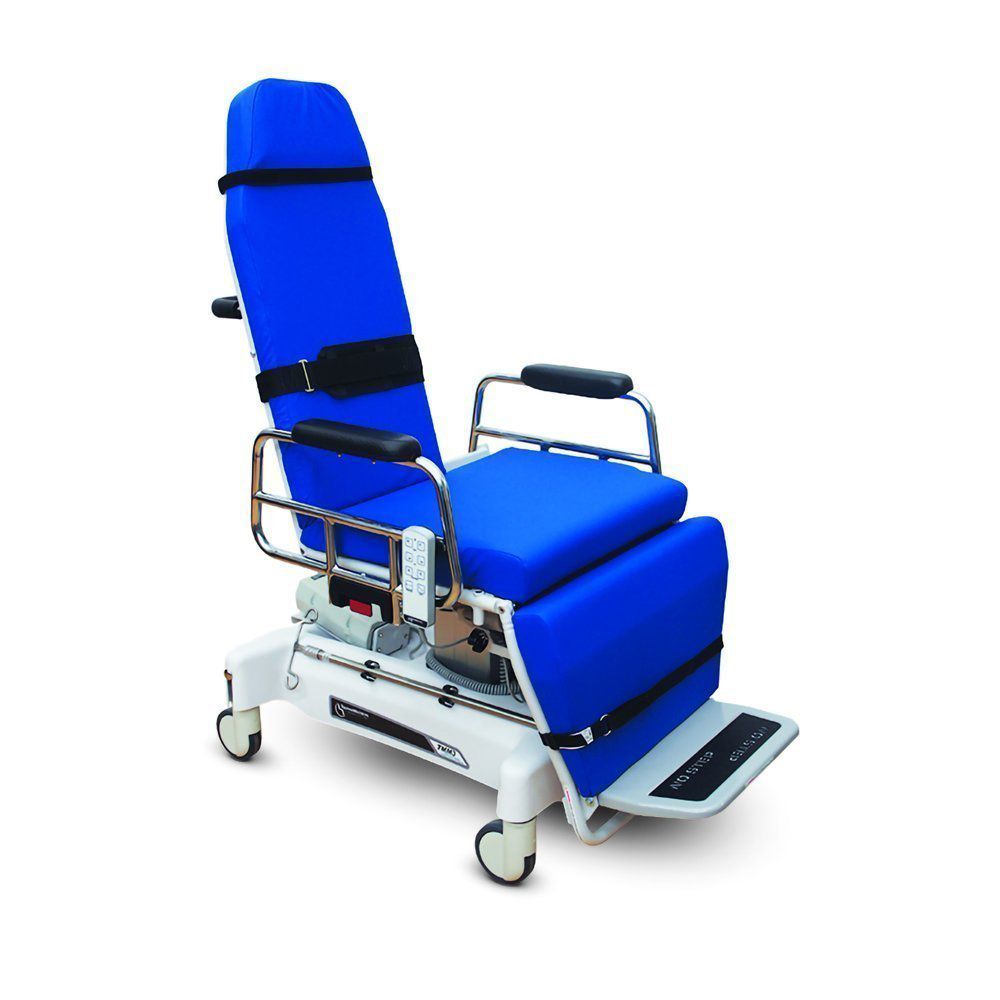

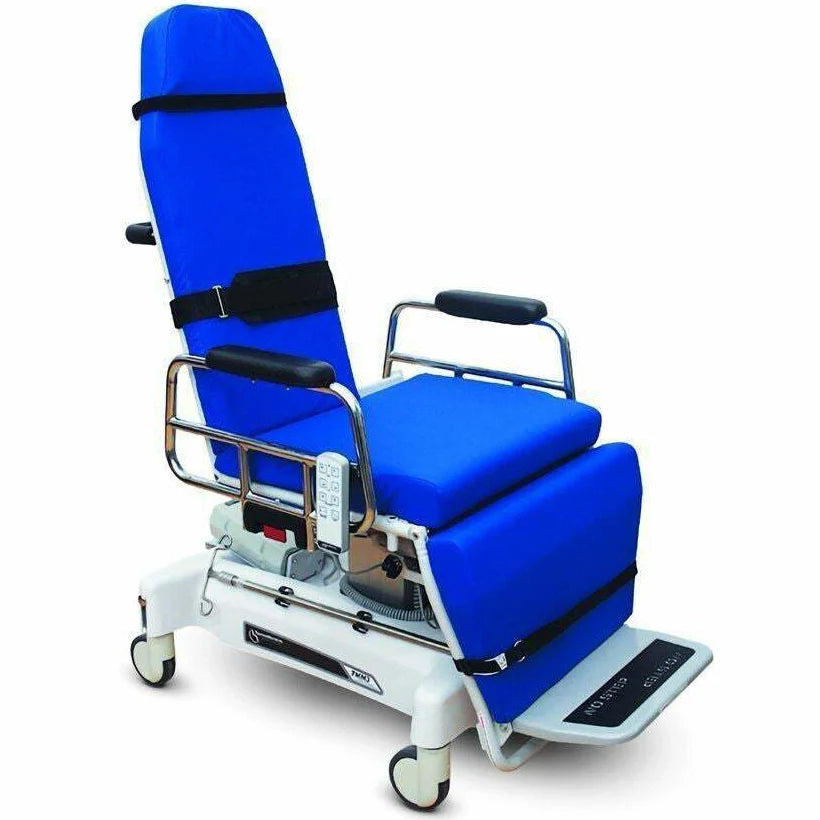

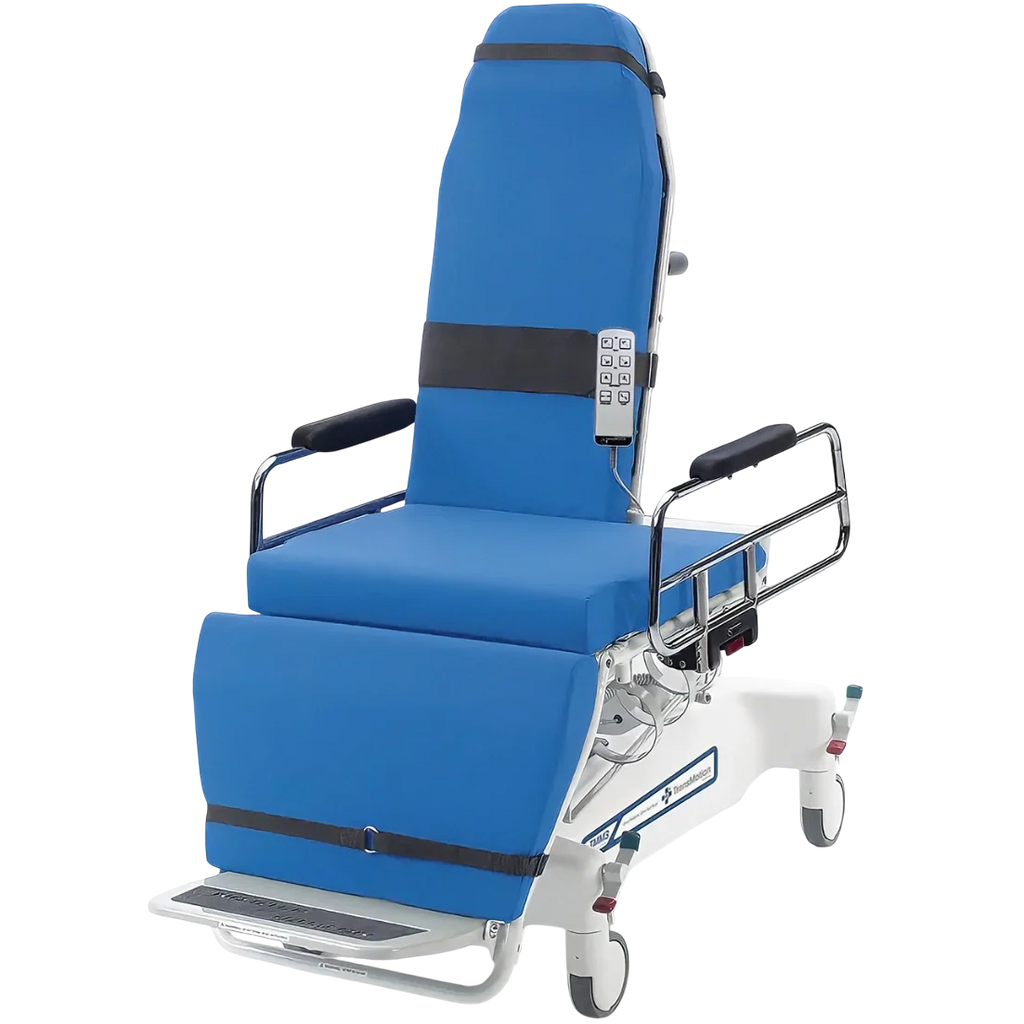

The TransMotion Medical TMM3 Video Fluoroscopy Swallow Study Stretcher-Chair (#TMM3-B) includes a new battery and a charger.

Warranty: 90 Days - Parts and Labor.

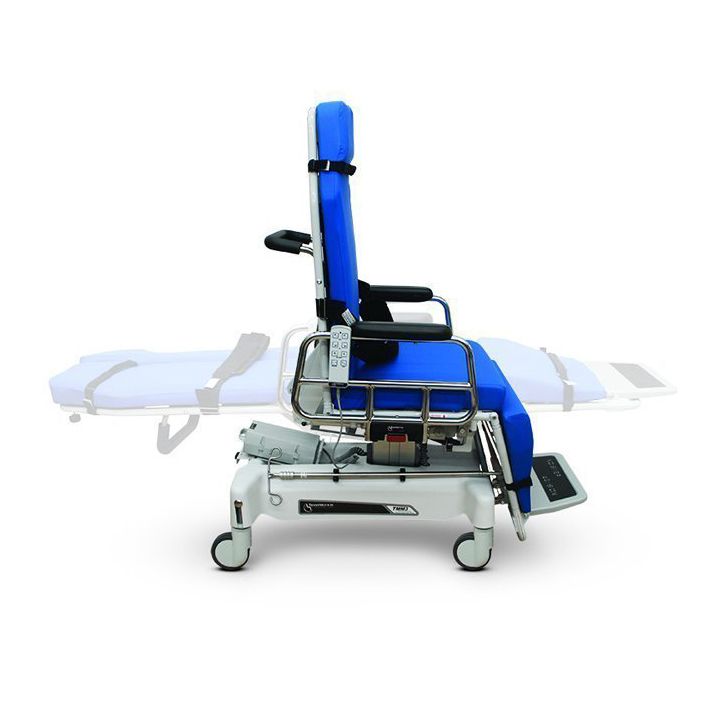

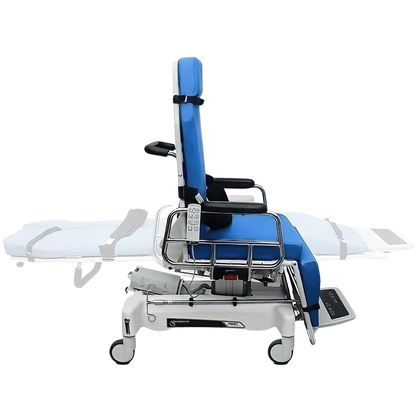

Featuring powered patient positioning designed specifically to aid in performing barium swallow studies, the TransMotion Medical TMM3 Stretcher-Chair serves as a procedure chair, transport device, and recliner all in one. It is extremely easy to convert from chair to stretcher configurations and utilizes a 90° rotating seat to eliminate transfers and allow patients to remain in-chair for both lateral and A/P imaging.

TransMotion Medical TMM3 Video Fluoroscopy Swallow Study Stretcher-Chair Features

  • 350 lb patient weight capacity is the highest capacity for any available swallow-chair.
  • 90° rotating seat.
  • Radiolucent back.
  • Powered patient positioning.
  • Auto-extending footrest.
  • Three patient belts - head, leg, and wide width torso.
  • Swing-and-tuck side rails.

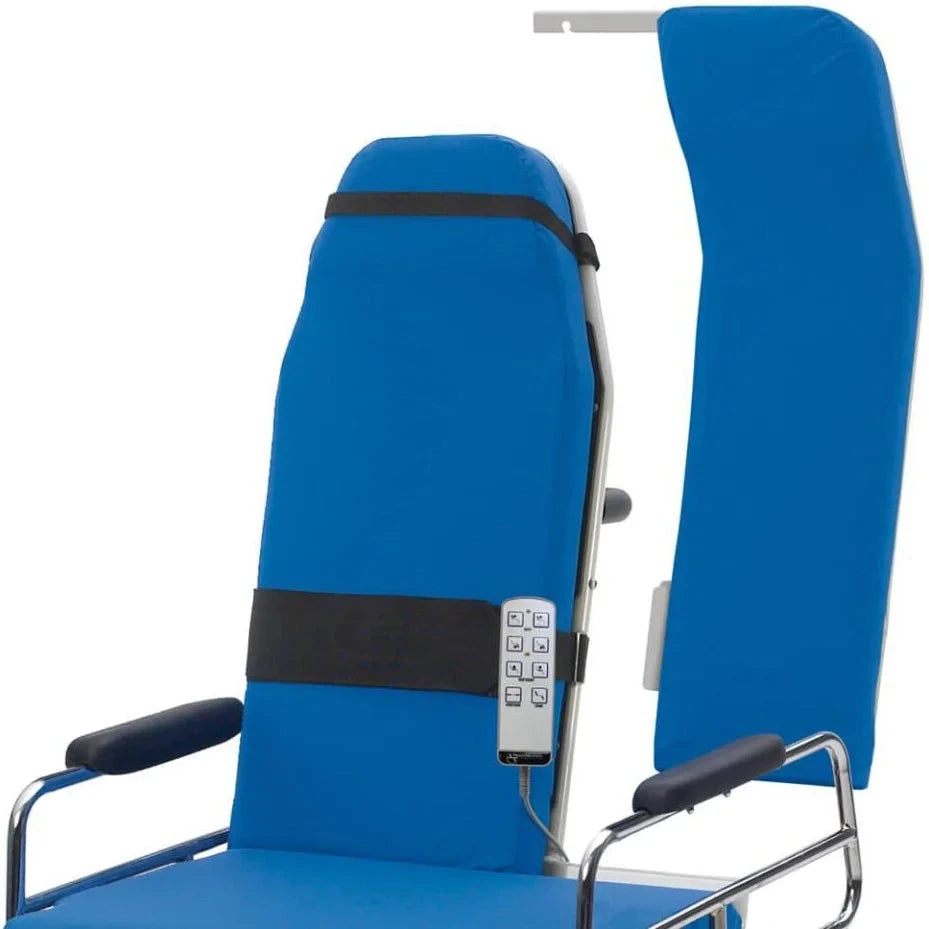

  • Manual quick release back.
  • Two quick-change batteries and wall-mount charge.

TransMotion Medical TMM3 Video Fluoroscopy Swallow Study Stretcher-Chair Specifications

  • Seat Height:
    • Low: 2.1" (64 cm).
    • High: 33" (83.82 cm).
  • Seat Width: 24" (61 cm).
  • Back Width:
    • No Extension: 15" (38 cm).
    • With Optional Extension: 24" (61 cm).
  • Overall Width (rails up): 30.5" (77.47 cm).
  • Patient Surface Length:
    • Standard: 77" (195.58 cm).
    • With optional Manual Folding Foot-Rest: 70.4" (179 cm).
  • Overall Chair Height:
    • Low: 55.5" (141 cm).
    • High: 63" (160 cm).
  • Backrest Articulation: 0 to 86°.
  • Side Rail Height When Up (seat pan to rail top): 10.88" (27.64 cm).
  • Side Rail Length: 21.1" (54 cm).
  • Wheelbase:
    • Standard: 30" (L) x 20" (W) (76 cm x 51 cm).
    • Short (S) Option: 26" (L) x 20" (W) (66 cm x 51 cm).
  • Maximum Patient Weight: 350 lb (158 kg).
  • Charging System:
    • Input Volts: 100 - 240 VAC.
    • Current: 1.0 A (max).
    • Frequency: 50/60 Hz.
    • Output: +24 V DC 1.4 a.
    • Max Power: 36.0 W.
  • Battery: 24 V - 4.5 AH Sealed Lead Acid.

TransMotion Medical TMM3 Video Fluoroscopy Swallow Study Stretcher-Chair Configurations

  • #TMM3-A: with 120 V A/C.
  • #TMM3-B: with Battery.
  • #TMM3-FB: with Folding Foot Rest and Battery.
  • #TMM3-SB: with Short Wheel Base and Battery.
