Description
The Stryker 5050 Eye Surgery Stretcher includes new mattress pad and foot pad.
Warranty: 90 Days - Parts and Labor.

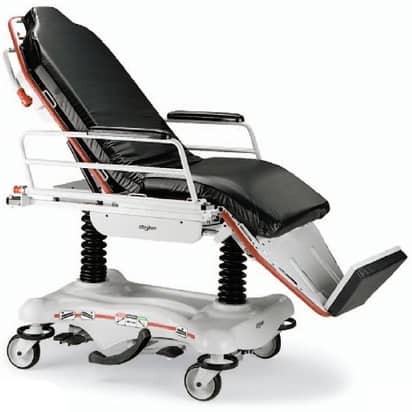

Stryker's versatile 5050 Stretcher Chair offers multiple position options for superior versatility. The chair's easy positioning from a flat horizontal stretcher to a chair position helps achieve superior clinical performance and patient comfort. Ideal for surgery centers and small spaces, the stretcher chair maximizes patient throughput.
The pneumatic backrest maneuvers 0 to 90°. Twin jacks also allow the Model 5050 to be placed in a comfortable "recliner" position. The foot section can be moved dependently or independently of the backrest.
The durable Stryker Stretcher Chair performs multiple functions while enhancing stability, ease of use, comfort, mobility, and safety.
Features
Stryker 5050 Stretcher Chair Features
- Dual hydraulic jacks optimize stability for greater comfort and a more secure treatment platform.
- Solid steel rings securely clamp down over all four wheels to ensure a firmly locked working surface.
- Lumbar support, ergonomic seat tilt, and a 24" wide patient surface all add up to enhanced patient comfort.
- Four IV receptacles.
- Four-wheel brake system.
- CPR capable design.
- Fiberesin pneumatic Fowler.
- Fixed-position push bar.
- Hands-free Trendelenburg.
- Locking caster steering.
- Variable control descent.
- Swing-down side rails with comfort armrest.
Specifications
Stryker 5050 Stretcher Chair Specifications
- Overall Length: 76" (193 cm).
- Width:
- Overall: 30" (76 cm).
- Litter: 27.5" (70 cm).
- Weight Capacity: 400 lb (182 kg).
- Height Range:
- High: 33.5" (85 cm).
- Low: 22" (56 cm).
- Litter Positioning:
- Backrest: 0 to 90°.
- Leg: 0 to 80°.
- Trendelenburg/Reverse Trendelenburg: +/- 45°.
- Siderails: +/- 45°.
- Standard: 10" x 31" (25 cm x 79 cm).
- Patient Surface: 24" x 74" (61 cm x 188 cm).
- Caster Diameter: 6" (15 cm).
Configurations
Stryker 5050 Stretcher Chair Configurations
- #MFI-SYK-5050-DF: Dependent Footrest.
- #MFI-SYK-5050: Independent Footrest.
Accessories
Stryker 5050 Stretcher Chair Accessories
The following accessories are compatible and commonly purchased with the 5050 Stretcher Chair:
- IV Pole:
- #0390-025-010: Standard.
- #5050-075-001: Tethered.
- Restraint Strap:
- #0946-043-001: Ankle.
- #0390-019-000: Body.
- #1010-058-000: Chest.
- Wrist Rest:
- #1068-251-000: Temporal.
- #1068-250-000: Superior.
- #5050-050-000: Wrist Rest Mounting Bracket.
Literature
Stryker 5050 Stretcher Chair Literature
Stryker Stretcher Chair Spec Sheet
