Description
The Stryker 1080 Fluoroscopy Stretcher includes a new stretcher pad.
Note: IV Pole is sold separately.
Warranty: 90 Days - Parts and Labor.

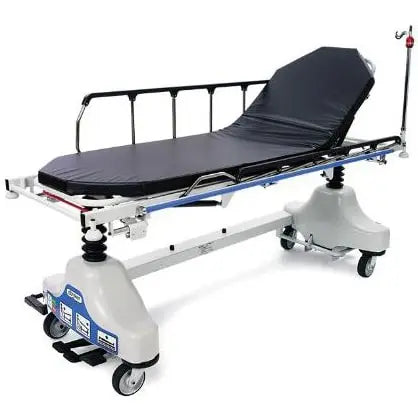

Access, functionality, and safety are the hallmarks of Stryker's Fluoroscopy Stretcher. The specialty platform integrates multiple advanced features for enhanced application and control. The stretcher's features are designed to simplify operation and minimize the need to re-position the patient during fluoroscopic imaging. The full-length C-arm access, fold down siderails, and dual foot controls increase flexibility and ease of imaging.
Features
Stryker 1080 Fluoroscopy Stretcher Features
- Radiolucent platform.
- C-arm access.
- Dual end-mounted foot control hydraulics.
- 2" (5 cm) mattress.
- 6" (15 cm) non-conductive casters.
- Dual fiberesin pneumatic backrest.
- Fold-down siderails.
- Four-corner roller bumpers.
- Four IV receptacles.
- Four-wheel, steel-ring brake system with dual end activators.
- Radiolucent litter top.
- Locking-caster steering with dual end activators.
- U-shaped base.
Specifications
Stryker 1080 Fluoroscopy Stretcher Specifications
- Overall Length: 87" (221 cm).
- Overall Width: 30.5" (77 cm).
- C-Arm Access Width: 54" (137.2 cm).
- Weight Capacity: 500 lb (228 kg).
- Height Range (to litter top):
- High: 32.75" (83.2 cm).
- Low: 23.5" (59.7 cm).
- Litter Positioning:
- Dual Backrest Operation: 0 to 90°.
- Trendelenburg/Reverse Trendelenburg: ± 8°.
- Patient Surface: 26" x 84" (66 cm x 213 cm).
- Siderails: 13" x 55" (33 cm x 140 cm).
- Fluoroscopy Window: 27.5" x 66" (69.9 cm x 167.6 cm).
- Caster Diameter: 6" (15 cm).
