Description
The Skytron UltraSlide 3600B Surgery Table includes new battery, pad, and 10' power cord.
Warranty: 90 Days - Parts and Labor.

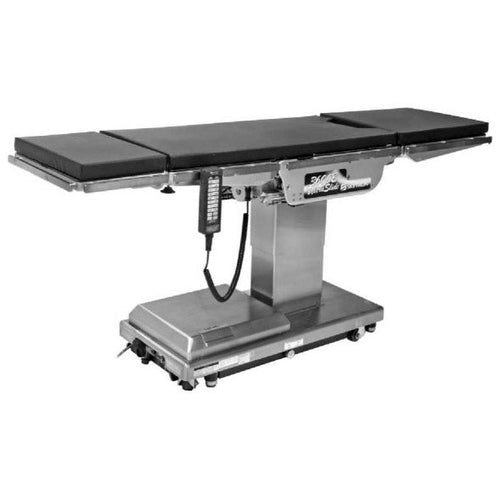

The Skytron UltraSlide 3600B Surgery Table is a full function, electrohydraulic battery powered surgical table that offers flexible patient positioning options for every procedure. The 3600B features optimal patient positioning for C-arm access and removable back and leg sections to provide surgeons more leg room, lower height positioning for Urology, Cysto/Gyn, and enhanced imaging capabilities for Vascular and other lower body procedures.
With a maximum permissible load of 1,000 pounds, this surgery table is ideal for treating bariatric patients. The simple one touch pendant control can be used from any location around the surgical table, and features back-lighting for high visibility as well as recessed buttons to eliminate accidental activation.
The TransMotion Medical Standard Arm Board with Pad (#TMA17-15) is compatible with and recommended for purchase with this Skytron UltraSlide 3600B Surgery Table.
Features
Skytron UltraSlide 3600B Surgery Table Features
- Adjustable head section with quick release bar for emergencies.
- Full length x-ray top accessory for image capture.
- Secondary function switches for backup to primary control.
- Power kidney bridge for safe and easy positioning.
- Self leveling brakes for stability on uneven floors.
- Manual emergency brake unlock knob.
- Simple one touch operation.
- Back-lit control for high visibility in low lighting.
- Audible alarm for kidney bridge/ back up articulation.
- Anatomically correct return-to-level.
- Anatomically correct beach chair position.
- Removable leg section permits surgeons more leg room, lower table height positioning for Urology, Cysto/Gyn, as well as enhanced imaging capabilities for Vascular and other lower body procedures.
- Recessed buttons to eliminate accidental activation.
- Exceptionally durable, water resistant.
Specifications
Skytron UltraSlide 3600B Surgery Table Specifications
- Length without Headrest: 69" (1750 mm).
- Length with Headrest: 82" (2080 mm).
- Width: 19.5" (500 mm).
- Width with Side Rails: 22" (560 mm).
- Weight: 800 lb (365 kg).
- Max. Permissible Load:
- Lift: 1000 lb (455 kg).
- Articulation: 800 lb (365 kg).
- Adjustments via Pendant Control:
- Height: 24" to 42.5" (610 mm to 1080 mm).
- Lateral Tilt (Left/Right): 30 degrees.
- Trendelenburg: 30 degrees.
- Reverse Trendelenburg: 30 degrees.
- Power Kidney Bridge: 5.75" (145 mm).
- Back Up/Down: 90 degrees / 40 degrees.
- Return to Level (Anatomically correct return to horizontal position from articulated positions):
- Top Slide/Head: 9.5" (240 mm).
- Top Slide/Foot: 13.5" (340 mm).
- Flex/Reflex: 40 degrees / 90 degrees.
- Base Braking (Lock/Unlock).
- Beach Chair.
