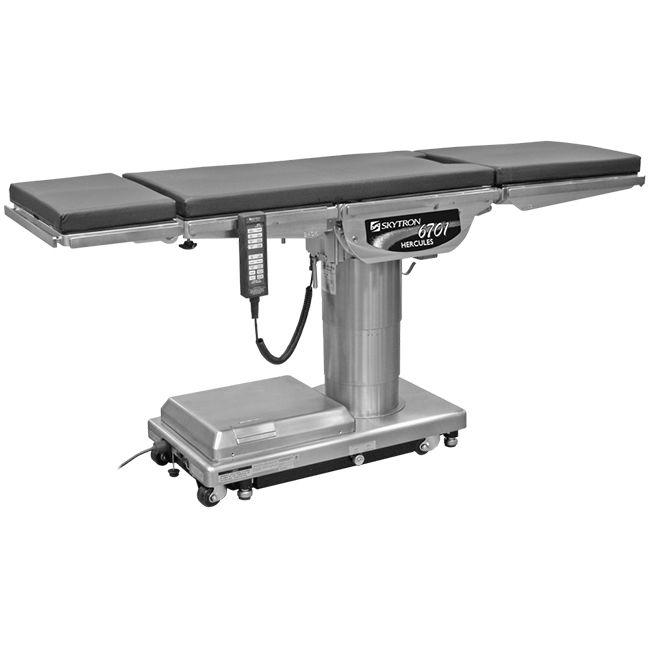

Skytron Hercules Surgical Table

Yes, the Skytron Hercules Surgical Table is specifically engineered for unparalleled imaging access, making it ideal for procedures requiring extensive fluoroscopy or C-arm usage. The design incorporates several features to facilitate optimal access:

• High Top Rotation: Features up to 210° of top rotation (on Models 6700B and 6701) to optimize C-arm positioning.
• Removable Sections: The back and leg sections can be easily removed to enhance C-arm accessibility and provide flexibility for patient positioning, such as the lithotomy position.

Yes, the Skytron Hercules Surgical Table is engineered for exceptional stability and structural confidence, even in demanding environments. This is achieved through several key features:

• Auto-Leveling Braking System: It uses an advanced 4-point “auto-leveling” braking system that automatically detects and compensates for uneven operating room floors, guaranteeing a solid and secure work surface.
• High Structural Capacity: The table is rigorously tested to ensure structural integrity. The 6700 Series (Models 6700B and 6701) are capable of supporting larger patients, boasting a 1200 lb lifting limit and a 1000 lb articulating limit.
• Electrical Safety: Safety is prioritized with extremely low current leakage, measured at less than 100 microamps.

The Skytron Hercules Surgical Table is engineered for superior patient capacity. The highest limits are offered by the high-performance 6700 Series models (6700B and 6701).

These models provide:

• Maximum Patient Lifting Capacity: Up to 1200 lb
• Maximum Patient Articulating Capacity: Up to 1000 lb

Note that other models may have different limits.

Yes, the Skytron Hercules Surgical Table offers an Automatic “Beach-Chair” position, making it ideal for procedures like shoulder arthroscopy. Additionally, it provides extensive articulation ranges for flexible patient positioning, including the ability to adjust the head section from 0° to 90° (lowered) and the back section from 40° (down) to 90° (up).

Yes, the Skytron Hercules Surgical Table features a fully electric operation system, controlled by an easy-to-use, one-touch hand pendant. This allows for precise and versatile patient positioning.

Key control features include:

• One-Touch Hand Pendant: Manages all table functions from any perimeter point.
• Return to Level: A standard function for quickly resetting the table to a neutral position.

The Skytron Hercules Surgical Table offers extensive articulation to meet various procedural requirements, all managed via the one-touch electric hand pendant. Both the Trendelenburg and lateral tilt functions have a generous range:

• Trendelenburg/Reverse Trendelenburg: The table can tilt up to ± 30°.
• Lateral Tilt: The table offers a lateral tilt of up to ± 30°.

The Skytron Hercules Surgical Table operates using the following standard electrical specifications:

• Voltage/Frequency: 120 VAC, 60 Hz
• Power Consumption: 450 Watts
• Current Leakage: Less than 100 microamps

Additionally, Models 6700B and 6701 include an internal battery for enhanced operational flexibility.

The certified refurbished Skytron Hercules Surgical Table comes ready for use with several essential components, ensuring it is operational upon arrival:

• New Pads: Provided for optimal patient comfort.
• Operating Hand Control: The intuitive, one-touch electric pendant used to manage all table functions.
• Power Cord: A removable 15-foot power cord with a hospital-grade connector.

Internal Battery

It is important to note that a new internal battery for operational redundancy is included only with the high-capacity 6700 Series models (6700B and 6701).

The Skytron Hercules Surgical Table is engineered for exceptional versatility and patient positioning, designed specifically to maximize surgical and C-arm imaging access through an intuitive, one-touch hand pendant.

Key features that enhance surgical access include:

• Superior Imaging Flexibility: Models like the 6700 series feature a rotating top (up to 210°) to provide excellent C-arm clearance.
• Advanced Tilt Control: The table provides precise positioning with 30° of Trendelenburg and Reverse Trendelenburg movement, along with ± 30° of lateral tilt.
• Modular Design: Removable back and leg sections allow for optimized patient positioning, providing surgeons with improved legroom and unobstructed access to the surgical site.
• Specialized Positioning: The 6700 series models include an automatic “Beach-Chair” position feature specifically designed to streamline shoulder arthroscopy and other upper-body procedures.

The Skytron Hercules Surgical Table is designed for precise, fully electric positioning to support a wide variety of surgical needs. The system offers extensive articulation capabilities:

• Trendelenburg/Reverse Trendelenburg: ± 30°
• Lateral Tilt: ± 30°
• Back Section: -40° (Down) to +90° (Up)
• Leg Section: -100° (Down) to +20° (Up)
• Head Section: 0 to 15° (Raised) and 0 to 90° (Lowered)
• Seat Section: 0 to 40° (Flex) and 0 to 90° (Reflex)

Enhanced Imaging Flexibility:
The table is engineered for superior C-arm access, featuring up to 210° of tabletop rotation on 6700 series models. All adjustments are managed via an intuitive, one-touch hand pendant that allows surgical teams to adjust table positioning seamlessly from any point around the table’s perimeter.
