Description

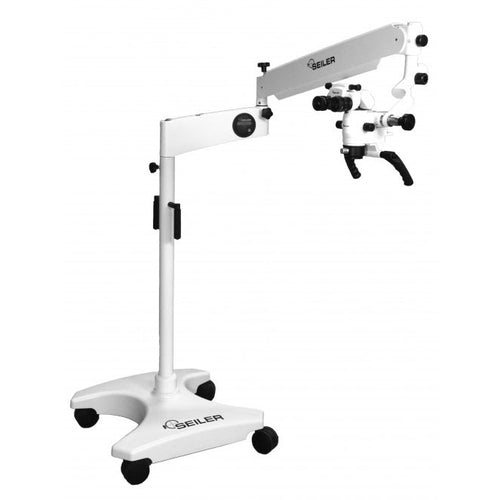

The Seiler Alpha Air 3 Dental Microscope includes user guide, choice of mounting option (floor, ceiling, wall, high wall, or tabletop), LED illumination system, pantographic arm, optic pod, and binocular head.
Warranty: Lifetime - Optics and Mechanics.
The Seiler Alpha Air 3 Dental Microscope is a high quality dental microscope with three levels of magnification, apochromatic lenses for superior optics, standard 150,000 LUX LED illumination and a specially engineered Gas Piston Pantographic Arm for superior maneuverability. This multi-purpose microscope uses high quality German optics and the brightest standard LED light source on the market. The Air 3 has a compact design that allows it to function in any environment, no matter the size constraints.
Features
Seiler Alpha Air 3 Dental Microscope Features
- True Coaxial illumination.
- Composite and Red Free Filter standard.
- USB and 12V DC power support directly on optic pod.
- Three-Step Turret magnification system.
- Over 50,000 hours of bulb life.
Configurations
Seiler Alpha Air 3 Dental Microscope Configurations
- #AA3-100-LED: Fixed Head; Floor Stand.
- #AA3-100-LED: Fixed Head; Wall Mount.
- #AA3-100-LED: Fixed Head; High Wall Mount.
- #AA3-100-LED: Fixed Head; Ceiling Mount.
- #AA3-100-LED: Fixed Head; Tabletop Mount.
- #AA3-100-LED220: Inclinable Head; Floor Stand.
- #AA3-200-LED220: Inclinable Head; Wall Mount.
- #AA3-300-LED220: Inclinable Head; High Wall Mount.
- #AA3-400-LED220: Inclinable Head; Ceiling Mount.
- #AA3-500-LED220: Inclinable Head; Tabletop Mount.
Specifications
Seiler Alpha Air 3 Dental Microscope Specifications
- Minimum Possible Working Distance: 6.89" (175 mm).
- Maximum Possible Working Distance: 15.75" (400 mm).
- Microfocus Vertical Adjustment Range: 13 mm.
- Microscope Weight (Floor Model): 162 lb (73.48 kg).
- Objective Lens: Æ’ = 250 mm.
- Eyepieces: 10x.
- Diopter Setting: -6 to +6.
- Field of Vision: 10 - 66 mm.
- Magnification Levels: 2.8x, 4.1x, 5.3x, 8.7x, 11x, 17x.
- Power Supply: Mains Power 96 - 264 VAC; 47 - 63 Hz.
- Auxiliary Power: 12 VDC .5 A maximum.
- Fuses: (2) 1.5A 250 VC, type GMA.
- USB Jack: 5.0 VDC / .5 AMP.
- Power Cable: IEC 320/C13 Hospital Grade.
- Light Source Type: LED (Light Emitting Diode).strong>
- Color Temperature: 5700 CCT.
- LED Life: >50,000 Hours.
- Typical Illuminance: 120,000 - 150,000 LUX.
- Brightness Control: Digital - 1024 Resolution.
- Mode of Operation: On/Off/Standby (Continuous).
- Input Voltage: 96 - 264 VAC.
- Rated Power: 80 watts.
- Water Resistance: IPXO.
- Operating Temperature: 40°F to 100°F (4.4°C to 37.8°C).
- Storage Temperature: 20°F to 122°F (-6.7°C to 50°C).
- Operating Relative Humidity: 30 - 75%.
- Storage Relative Humidity: 0 - 100% Non-Condensing.
- Air Pressure: 700 HPA to 1060 HPA.
