Regular price$11,495.00 Sale price$10,158.12
Earn 10158 points

Ships from Manufacturer

Est. Delivery:

Shop with Confidence

Package:

Description

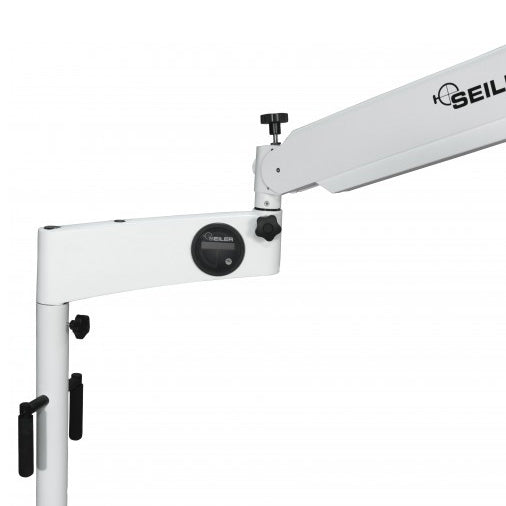

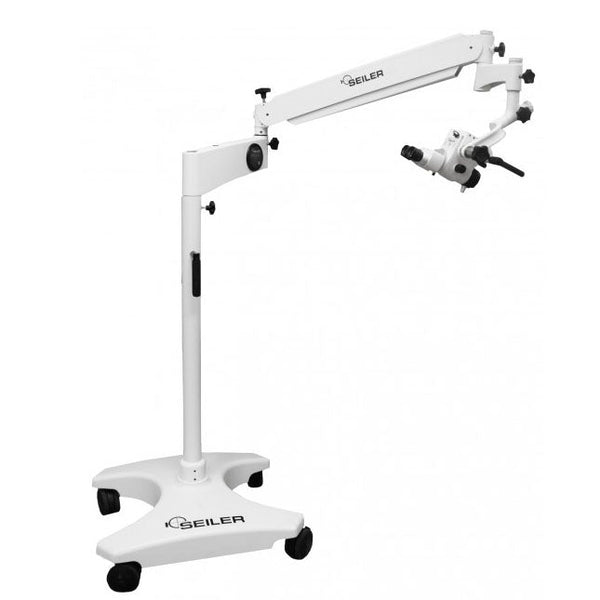

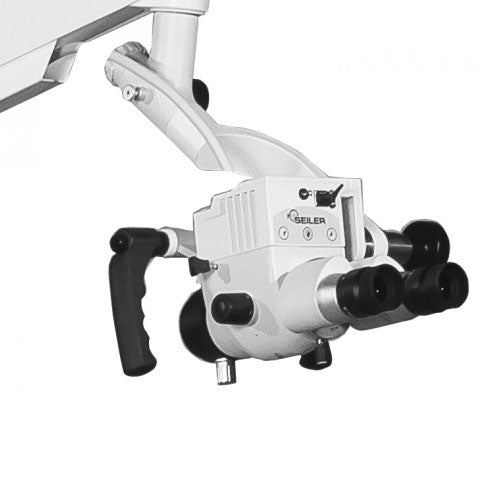

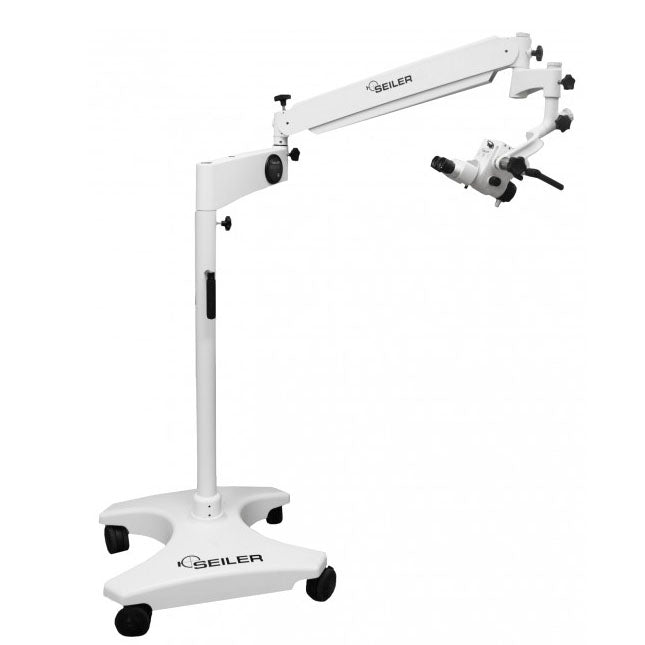

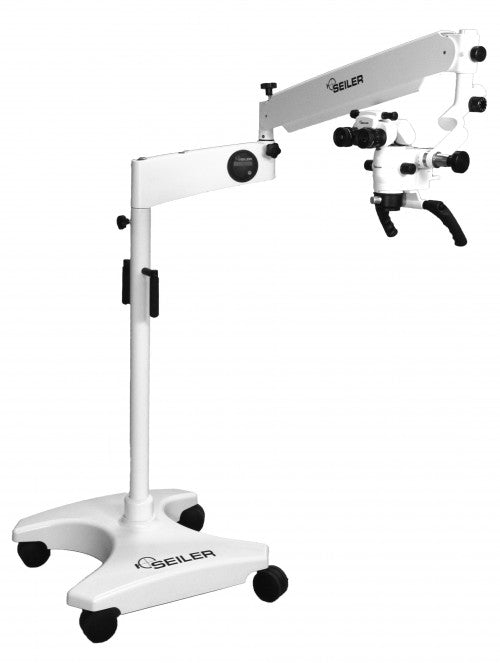

The Seiler Alpha Air 3 ENT Microscope is a high quality ENT microscope with three levels of magnification, apochromatic lenses for superior optics, standard 150,000 LUX LED illumination and a specially engineered Gas Piston Pantographic Arm for superior maneuverability.

Warranty: Lifetime - Optics and Mechanics.

The Seiler Alpha Air 3 ENT Microscope is a multi-purpose, extremely powerful microscope. It uses high quality German optics and the brightest standard LED light source on the market. The Air 3 has a compact design that allows it to function in any environment, no matter the size constraints.

Features

Seiler Alpha Air 3 ENT Microscope Features

  • Three-Step Turret magnification system.
  • LED illumination + 150,000 LUX.
  • 10x widefield eyepieces with dioptic locks.
  • True Coaxial Illumination: Shadow Free.
  • USB and 12 VDC power support directly on optic pod.
  • Red free filter standard.
  • Five Mounting Options Available: Floor, Wall, High Wall, Ceiling, and Tabletop.
  • Two Head Options Available: Fixed 45° Head or Inclinable 0 - 220° Binocular Head.

Specifications

Seiler Alpha Air 3 ENT Microscope Specifications

  • Weight: 162 lb (73.48 kg).
  • Working Distance:
    • Minimum possible: 6.89" (175 mm).
    • Maximum possible: 15.75" (400 mm).
  • Microfocus Vertical Adjustment Range: 13 mm.
  • Objective Lens:
    • Standard Setup: Æ’=250 mm.
    • Optional Setup: 175 - 400 mm.
  • Eyepieces:
    • Standard Setup: 10x.
    • Optional Setup: 12.5x, 16x, 20x.
  • Diopter Setting: -6 to +6.
  • Field of Vision:
    • Standard Setup: 9 - 72 mm.
    • Optional Setup: 4.95 - 105.88 mm.
  • Magnification Levels:
    • Standard Setup: 2.8x, 4.8x, 5.3x, 8.7x, 11x, 17x.
    • Optional Setup:
      • Max Low: 1.7x.
      • Max High: 48.5x.
  • Power Supply: Mains Power 96 - 264 VAC; 47 - 63 Hz.
  • Auxiliary Power Jack: 12 VDC 1.0 A maximum.
  • Fuses: (2) 3 AMP 250 V Fast Blow 5x20 mm.
  • Illumination Bulb: USB 2 Jack; 5.0 VDC; 1 AMP.
  • Power Cable: IEC 320/C13 Hospital Grade.
  • Light Source Type: LED.
  • Color Temperature: 5700 CCT.
  • LED Life: > 50,000 hours.
  • Typical Illuminance: 120,000 - 150,000 LUX.
  • Operating Temperature: 50° F - 70° F (10° C - 25° C).
  • Storage Temperature: 38° F - 122° F (10° C - 50° C).
  • Operating Relative Humidity: 30 - 75%.
  • Storage Relative Humidity: 0 - 100% Non-Condensing.
  • Air Pressure: 700 HPA to 1060 HPA.

Configurations

Seiler Alpha Air 3 ENT Microscope Configurations

  • #AA3-ENT1-LED: Floor Mounted Unit with Fixed Head.
  • #AA3-ENT2-LED: Wall Mounted Unit with Fixed Head.
  • #AA3-ENT3-LED: High Wall Mounted Unit with Fixed Head.
  • #AA3-ENT4-LED: Ceiling Mounted Unit with Fixed Head.
  • #AA3-ENT5-LED: Tabletop Mounted Unit with Fixed Head.
  • #AA3-ENT1-LED220: Floor Mounted Unit with Inclinable Head.
  • #AA3-ENT2-LED220: Wall Mounted Unit with Inclinable Head.
  • #AA3-ENT3-LED220: High Wall Mounted Unit with Inclinable Head.
  • #AA3-ENT4-LED220: Ceiling Mounted Unit with Inclinable Head.
  • #AA3-ENT5-LED220: Tabletop Mounted Unit with Inclinable Head.

Literature

Seiler Alpha Air 3 ENT Microscope Literature

Seiler Alpha Air Series Brochure

Seiler Alpha Air 3 User Manual
