Condition:
-
Warranty:
- Weight: 162.0 lb
-
Learn more:
-
MFR:
Seiler
Ships from Manufacturer
-
MPN: AA3-100-LED
- Phone: (800) 489-2282
Frequently asked questions
Does the Alpha Air 3 include a comprehensive warranty?
Yes, the Seiler Alpha Air 3 Dental Microscope is backed by a robust warranty.
It features a Lifetime Warranty specifically covering the following components:
- Optics
- Mechanics
Does the microscope use true coaxial illumination?
Yes, the Seiler Alpha Air 3 features True Coaxial illumination. This design is crucial for eliminating shadows and providing clear, deep visibility essential for precise dental and surgical procedures.The illumination is powered by one of the brightest standard LED light sources on the market:
- Exceptional Brightness: Delivers powerful illuminance ranging from 120,000 to 150,000 LUX.
- Clarity and Longevity: The high-intensity LED light source is rated to last for over 50,000 hours and operates at a precise 5700 CCT color temperature for accurate tissue color rendering.
- Precision Control: Brightness is controlled digitally, offering 1024 levels of resolution for fine-tuning.
How long is the expected lifespan of the LED bulb in the Seiler Alpha Air 3?
The LED bulb in the Seiler Alpha Air 3 Dental Microscope has an expected lifespan of over 50,000 hours, ensuring long-term reliability.
What is the working distance range for the objective lens?
The objective lens (f = 250 mm) offers a working distance range from a minimum of 6.89 inches (175 mm) to a maximum of 15.75 inches (400 mm).
Does the microscope offer versatile mounting options?
Yes, the Seiler Alpha Air 3 Dental Microscope is designed for exceptional versatility and can be integrated into virtually any operatory layout. It offers five comprehensive mounting configurations:

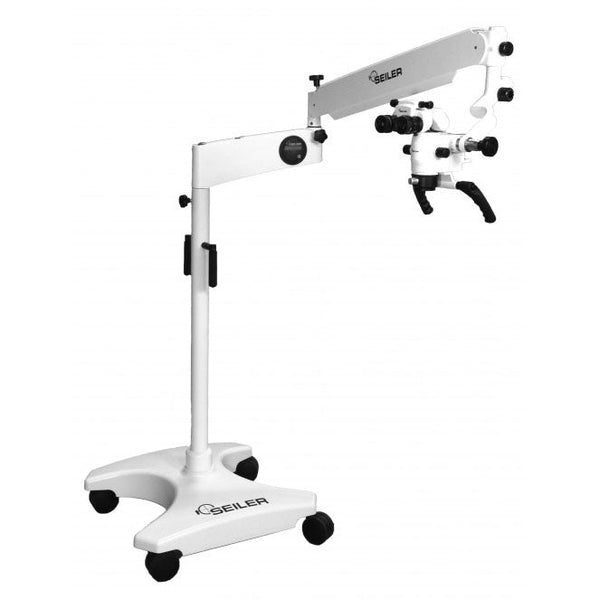

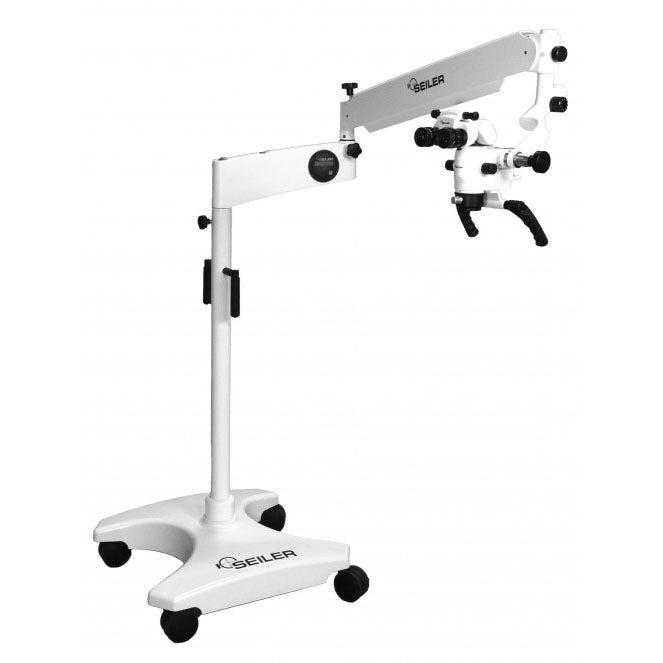

- Floor Stand

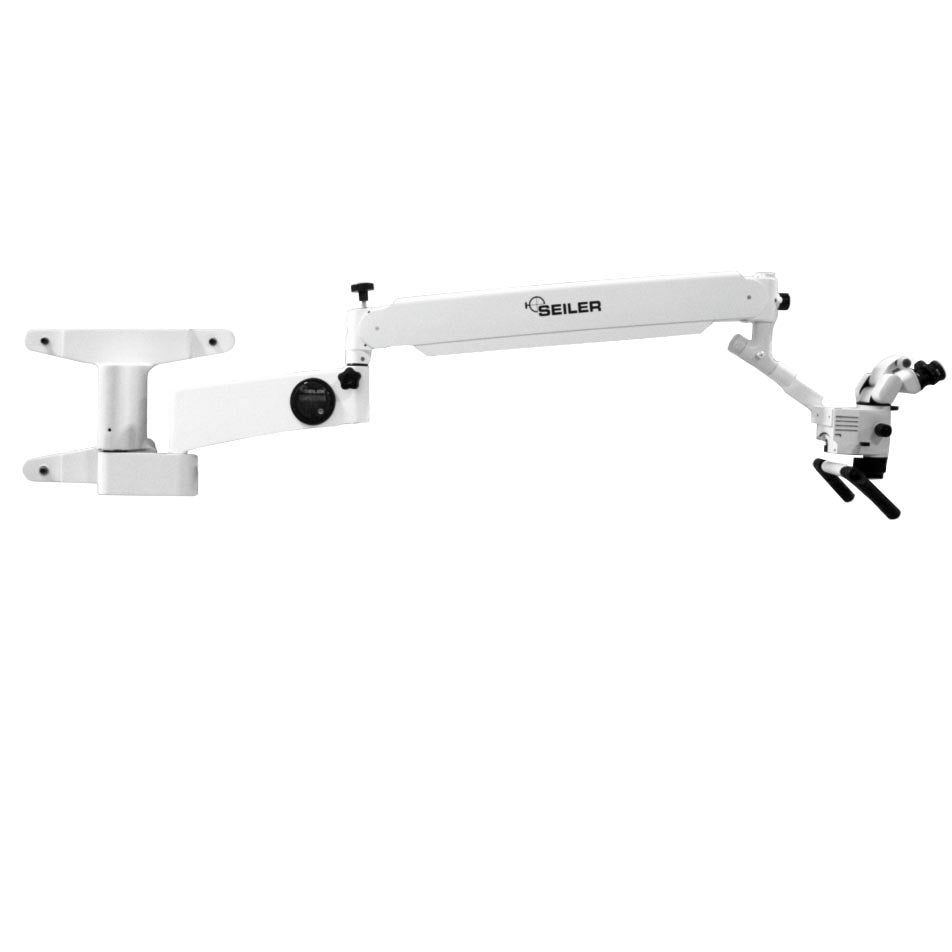

- Wall Mount

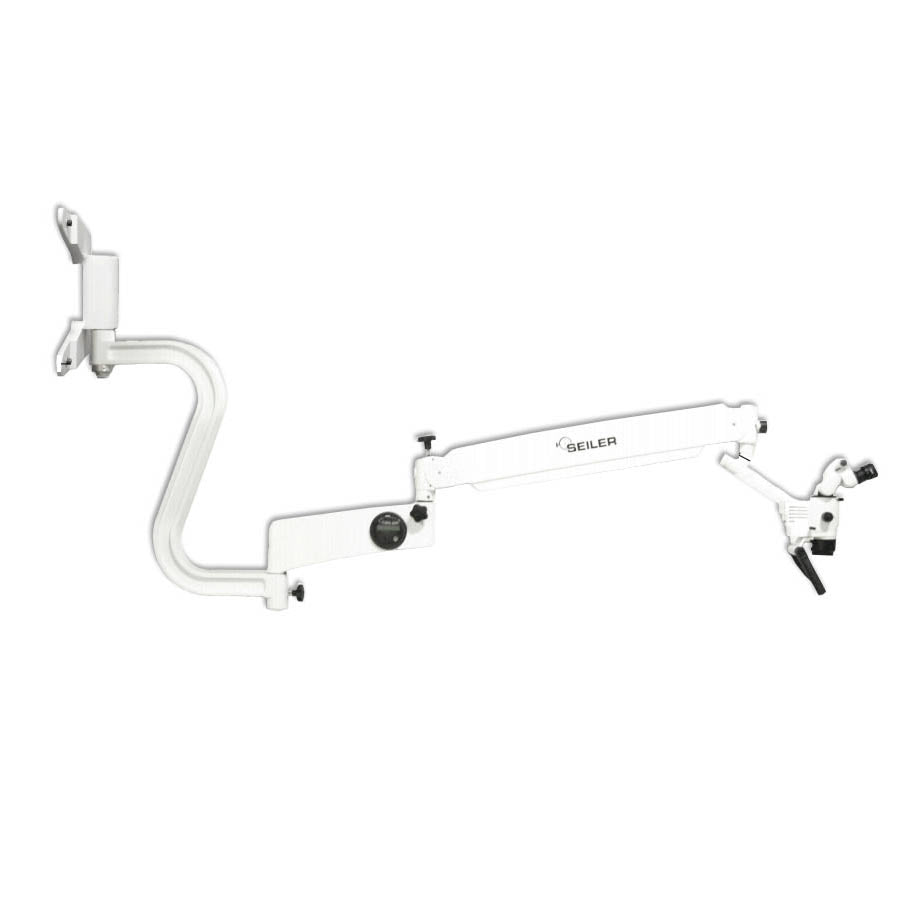

- High Wall Mount

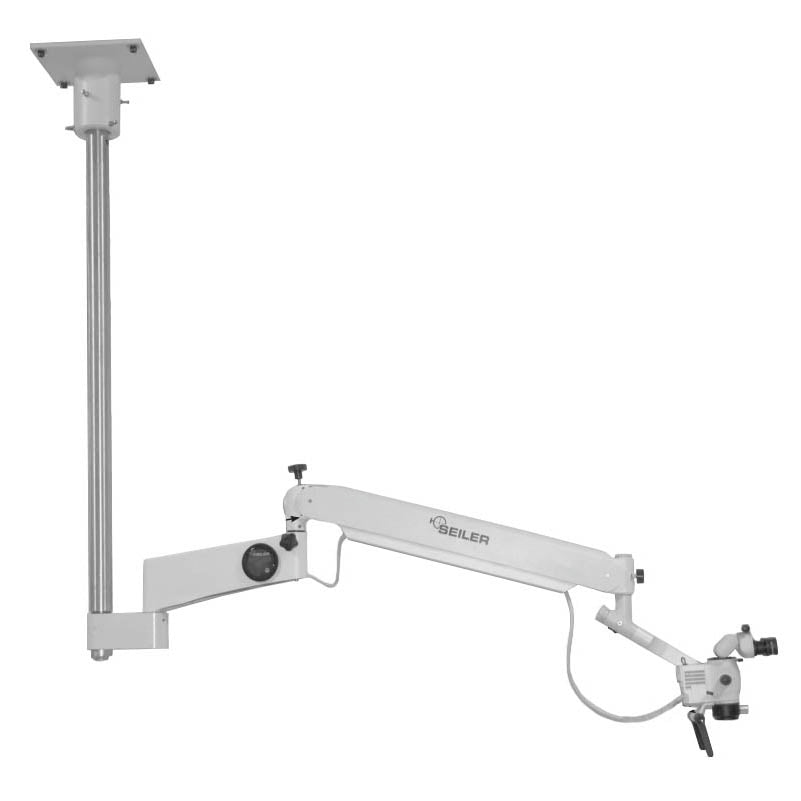

- Ceiling Mount

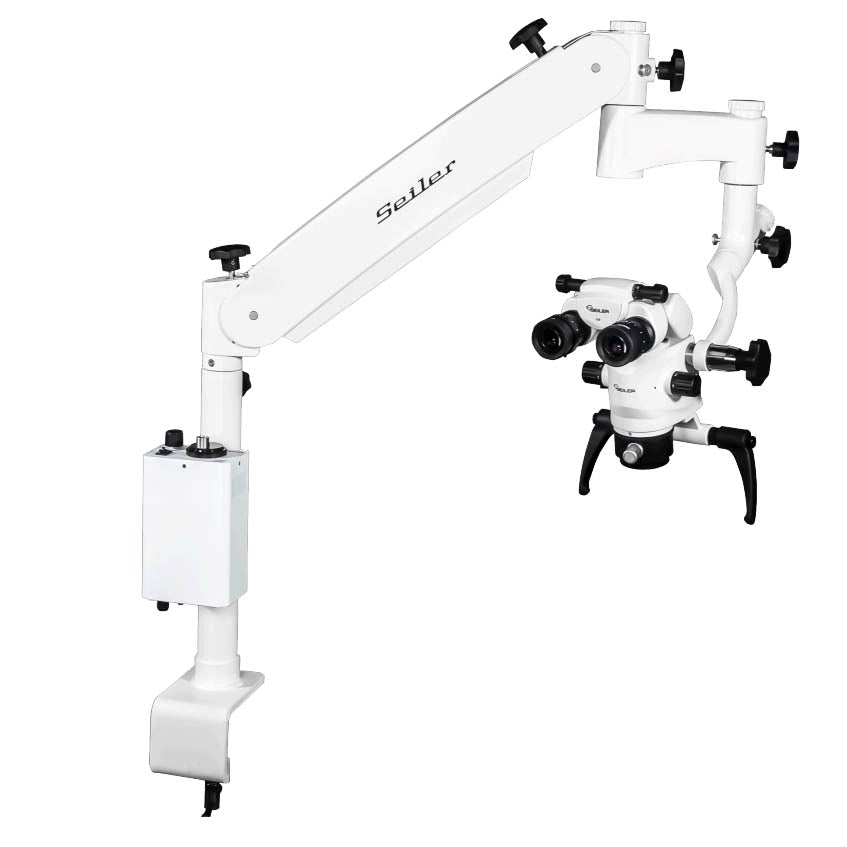

- Tabletop Mount
These options are available whether you choose the Fixed Head or Inclinable Head configuration.
Does the optic pod provide convenient auxiliary power?
Yes, the optic pod on the Alpha Air 3 supports direct auxiliary power connectivity for external accessories or digital devices, enhancing operational flexibility. The specific auxiliary power outputs available directly on the optic pod are:
- USB Jack: 5.0 VDC / 0.5 AMP maximum.
- 12V DC Port: 12 VDC / 0.5 A maximum.
Which filters are standard on the Alpha Air 3?
The Alpha Air 3 Dental Microscope comes standard with both a Composite Filter and a Red Free Filter. These features are included to enhance visual clarity and specificity during various dental procedures.
Does the Gas Piston Pantographic Arm offer superior positioning?
Yes, the Seiler Alpha Air 3 is equipped with a specially engineered Gas Piston Pantographic Arm designed for exceptional control and superior maneuverability. This system ensures precise, fluid positioning throughout various dental and surgical procedures: * Superior Range of Motion: Allows effortless adjustment to cover a wide operational area. * Fluid Positioning: The gas piston mechanism ensures smooth, stable, and quick adjustments. * Working Distance: The arm supports a wide operational range, facilitating working distances between 6.89 in (175 mm) and 15.75 in (400 mm).
Is the microscope suitable for constrained spaces?
Yes, the Seiler Alpha Air 3 Dental Microscope is highly suitable for constrained clinical environments. Its design and features prioritize efficiency in space-limited settings:
- Compact Design: The unit is intentionally compact to ensure effective functionality even in areas with size limitations.
- Superior Maneuverability: It utilizes a specially engineered Gas Piston Pantographic Arm which provides excellent, fluid positioning and a wide range of motion, facilitating precise placement in tight spots.
- Versatile Mounting: It is available in multiple configurations (Wall Mount, Ceiling Mount, Tabletop Mount, etc.), allowing you to select the option that best minimizes its footprint for your specific space.
Does this microscope include superior apochromatic lenses?
Yes, the Seiler Alpha Air 3 is equipped with high-quality German optics and apochromatic lenses.
This technology is essential for delivering superior optical clarity and high resolution, as apochromatic lenses are designed to minimize chromatic aberration across the entire visible spectrum. This ensures maximum image fidelity for detailed dental and surgical procedures.
Furthermore, the unit is backed by a Lifetime Warranty covering both the optics and the mechanics.
