Description

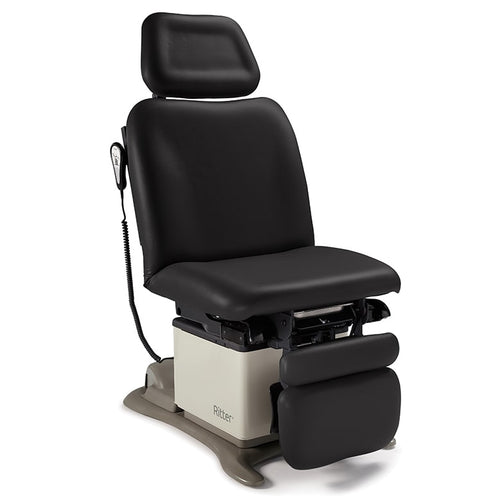

The Ritter 230 Procedure Chair includes a wired hand control.
Note: Upholstered Top is sold separately for factory new configurations.
Warranty:
- Certified Refurbished: 90 Days - Parts and Labor.
- Factory New: 1 Year - Parts and Labor.
Upholstery: When purchasing a table base with an upholstery top, please specify your desired color by contacting MFI Medical (Note: Actual colors may vary).
With over 50 years of quality professional healthcare experience, the Ritter brand is recognized as an industry leader. The Ritter 230 Procedure Chair is a great investment for any practice. It is designed to improve office efficiency by allowing the physician and staff to easily position patients with the touch of a button - reducing the likelihood of fatigue, back and neck strain, and workplace injury.
Designed to make patients feel comfortable, secure, and at ease during any procedure, the Ritter 230 gives your patients the most comfortable positioning. Patients can easily get onto the table and experience smooth and steady movement during positioning, allowing for a more comfortable doctors office experience and helping them feel satisfied with the level of care you provide.
The 230 Procedure Chair was previously called the 230 Universal Power Procedures Table.
Features
Ritter 230 Procedure Chair Features
- Built in stirrups are included standard.
- Control: Ergonomic, intuitive standard hand control in an easy-to-find location.
- Power height, back, foot, and tilt allows you to effortlessly and precisely position patients for a multitude of procedures.
- Multi-Positioning Capabilities:
- Knee-Chest: Tool-less reconfigure of the foot support provides the perfect position for lower body exams.
- Lithotomy: Extending the stirrups and treatment pan, lowering the foot support, and tilting the seat provide the perfect position for lower body exams and procedures.
- Flat: The table supports exams and procedures requiring supine, prone, left lateral, or right lateral positioning.
- Low Entry: Designed to make it easy and safe for the patient to get on and off the table.
- Trendelenburg: Whether better positioning for the patient, treating for shock or faintness, or increasing anesthesia onset, the Trendelenburg position offers a full 30° of tilt.
Specifications
Ritter 230 Procedure Chair Specifications
- Weight: 455 lb.
- Patient Weight Capacity: 450 lb (204 kg).
- Height:
- Minimum: 22.5" (57.2 cm).
- Maximum: 40" (101.6 cm).
- Seat Tilt Angle Range: 0 to 30°.
- Back Support Angle Range: 0 to 85°.
- Foot Support Angle Range: 0 to 90°.
- Upholstery Width Dimensions:
- Headrest: 18" (45.7 cm).
- Back Support: 28" (71.1 cm).
- Seat: 28" (71.1 cm).
- Foot Support: 18" (45.7 cm).
- Patient Support Surface Length:
- Flat Position: 72" (185.4 cm).
- Flat Position with Headrest Extended: 83" (213.4 cm).
- Paper Roll Holder Capacity: Holds 18" x 3.5" paper roll (45.7 cm x 8.9 cm).
- Stainless Steel Treatment Pan Dimensions: 11.5" (L) x 9" (W) x 2.5" (D) (29.2 cm x 22.9 cm x 6.4 cm).
- Electrical Ratings:
- Standard: 115/230 VAC, 7.5/3.8 A, 50/60 Hz.
- With Receptacle: 115 VAC, 10 Amps, 50/60 Hz.
- With Rotation: 115/230 VAC, 7.5/3.8 A, 50/60 Hz.
- Shipping Weight: 525 lb.
Configurations
Ritter 230 Procedure Chair Configurations
| MPN | Condition | Configuration |
|---|---|---|
| #MFI-MMK-230-CUS | Certified Refurbished | Table with Upholstered Top |
| #MFI-MMK-230-003-CUS | Certified Refurbished | Table with Upholstered Top and Rotation |
| #230-001 | Factory New | Table Base Only |
| #230-002 | Factory New | Table Base with Receptacle |
| #230-003 | Factory New | Table Base with Rotation |
The Receptacle option provides duplex, hospital-grade electrical outlets on each side of the base.
The Rotation option allows the chair to rotate 350° and adds 3.5" to the minimum and maximum seat height specifications.
Accessories
Ritter 230 Procedure Chair Accessories
The following accessories are compatible and commonly purchased with the 230 Procedure Chair:
- Arm Systems/Armboards:
- #9A328001: Adjustable Arm System, Plant-Installed.
- #9A328002: Adjustable Arm System, Field-Installed.
- #9A350001: Adjustable Arm System (receiver only), Plant-Installed.
- #9A350002: Adjustable Arm System (receiver only), Field-Installed.
- #9A350003: Adjustable Arm System (arms only).
- #9A81001-XXX: Articulating Armboard.
- #9A82001-XXX: Hand Surgery Armboard.
- Casters: (not available on Rotation models)
- #9A330001: Caster Base, Swivel Wheels.
- #9A365001: Casters.
- #9A371003: Foot Control, linear style.
- Headrests/Footrests:
- #9A337001-XXX: Larger 24" Wide Footrest.
- #9A51001-XXX: Facial Pad.
- Instrument Trays/Work Shelves/IV Poles:
- #9A427002: Swing Arm Instrument Tray, Extension Top.
- #9A267003: Instrument Tray, Double Arm (not available on Rotation models).
- #9A77001: IV Pole (not available on Rotation models).
- Knee Crutches:
- #9A411001: Articulating Knee Crutches.
- #9A411002: Articulating Knee Crutch System.
- #9A412001: Knee Crutch Mounting Brackets.
- Miscellaneous:
- #253-011: Ritter 253 LED Exam Light.
- #9A457001: Midmark LED Light Mounting Hardware.
- #9A152010: 3' Power Cord.
- #9A157003: Security Side Panels.
- #9A205003: Base Rails, Plant-Installed.
- #9A205004: Base Rails, Field-Installed.
- #9A214002: Security Straps, Field-Installed.
- #9A329003: Urology Drain System, Plant-Installed.
- #9A329004: Urology Drain System, Field-Installed.
- #9A78001-XXX: Vision Block Screen (not available on Rotation models).
- #002-0950-XXX: Flat Upholstery Top - 24".
- #002-10135-XXX: Flat UltraFree Upholstery Top - 24".
Literature
Ritter 230 Procedure Chair Literature
Midmark Upholstery Care and Maintenance Guide
Ritter 230 Camilla Automática Universal Para Uso Médico
Ritter 230 Universal Procedures Chair User's Guide
Ritter 230 Universal Procedures Chair Quick Reference Guide
