Description

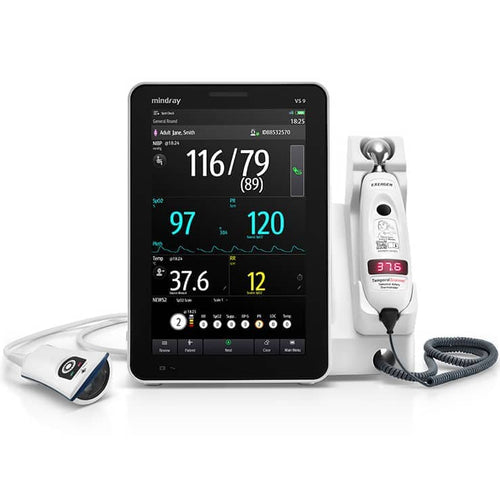

The Mindray VS 9 Wireless Vital Signs Monitor is available in several configurations to meet your needs including NIBP, pulse rate, SpO, and temperature options.
Warranty: 3 Years.
Note: Pictured barcode scanner is sold separately. The exergen thermometer and other optional accessories are ONLY included WHEN selected as an option on the configurations drop down menu.
Boasting a variety of functionality and parameters that provide tools to support clinical decisions, the VS 9 Wireless Vital Signs Monitor is ideally suited for spot check and continuous vital signs monitoring which helps clinicians get a complete picture of patient health. By elevating a department's workflow to new heights, it also addresses the needs of low acuity areas. Thanks to capacitive touchscreen technology, like you see with your smartphone, the VS 9 Wireless is extremely easy and efficient to use. It can be connected so clinicians can send vital signs at the point of care (POC) reducing the possibility of errors. With Mindray’s innovative BeneVision Distributed Monitoring System (DMS) caregivers can centrally view patient information sent from the POC and wireless capabilities allow for mobility between patients and real-time data sent from the POC directly to the EMR.
Features
Mindray VS 9 Wireless Vital Signs Monitor Features
- 10.1″ multi-gesture, capacitive touchscreen display with an intuitive user interface.
- Configurable workflows defined by department.
- TrueBP quickly measures blood pressure on inflation in about 15 seconds.
- Manual, automatic, and customizable NIBP measurement modes offer flexibility for various clinical applications.
- Orthostatic BP helps to assess a patient’s fall risk.
- BP Average functionality provides an average BP over a specified time and a number of measurements.
- Available SpO technology includes Masimo SET (standard) or Nellcor Oximax.
- Temperature options include: Exergen Temporal Scanner, and Welch Allyn stand-alone SureTemp Plus.
- Low flow sidestream CO provides measurements of FiCO, etCO, and awRR with a CO waveform.
- Standard Modified Early Warning Score (MEWS) offers support for clinical decisions.
- Customize up to 30 manual inputs, such as respiration rate, glucose, and height.
- Infographic pain scale to document pain level.
- Stores up to 5,000 measurements, accessible by patient ID for easy review.
Specifications
Mindray VS 9 Wireless Vital Signs Monitor Specifications
Physical Specifications:
- Dimensions: 10.8" H x 7.3" W x 5.3" D (27.5 cm H x 18.5 cm W x 13.5 cm D).
- Screen: 10.1-inch, 1280 x 800 pixels standard capacitive touchscreen supports multi-touch operation.
- Weight: 7.5 lb (3.4 kg).
Bluetooth:
- Protocol: Bluetooth 5.
- Modulation Mode: GFSK.
- Operating Frequency: 2402 MHz to 2480 MHz.
- Wireless Data Rate: 2 Mbps, 1 Mbps, 125 kbps.
- Output Power: ≤ 8 dBm ± 4 dB
- Data Security: AES128.
Interfacing:
- Main Unit: AC power connector (1), Network connector (1), RJ45 USB 2.0 connector (2), Multi-Functions connect (1), Equipotential grounding terminal (1), External battery connector (1).
- Barcode Scanner: Support 1D and 2D barcode.
- Thermal Recorder: 3 traces (paper 50 mm width, 20 m length).
- Data Output: HL7, eGateway, VitalsLink (Cerner).
- Auth. Management: MLDAP, Imprivata.
Power:
- Line Voltage: 100 to 240 VAC (±10 %).
- Current: 0.9 to 0.5A.
- Frequency: 50/60 Hz (±3 Hz).
- Battery: 5600mAh rechargeable smart Li-ion battery.
- Recharge Time (Power Off): 4 hours to 100%.
Environmental Requirements:
- Temperature:
- Operating: 0 to 40 °C (without CO). 5 to 40 °C (with CO).
- Storage: -20 to 60 °C.
- Humidity:
- Operating: 15 to 95 % (non condensing).
- Storage: 10 to 95 % (non condensing).
- Barometric:
- Operating: 120 to 805.5 mmHg (57 to 107.4 kPa) (without CO). 430 to 790 mmHg (57.3 to 105.3 kPa) (with CO).
- Storage: 120 to 805.5 mmHg (16 to 107.4 kPa) (without CO). 430 to 790 mmHg (57.3 to 105.3 kPa) (with CO).
Configurations
Mindray VS 9 Wireless Vital Signs Monitor Configurations
- #121-002192-00: Standard NIBP and Pulse Rate.
- #121-002193-00: NIBP and Pulse Rate with SmarTemp.
- #121-002198-00: NIBP and Pulse Rate with Exergen Temporal Temp.
- #121-002195-00: NIBP and Pulse Rate with Nellcor OxiMax SpO.
- #121-002197-00: NIBP and Pulse Rate with Nellcor OxiMax SpO and SmarTemp.
- #121-002194-00: NIBP and Pulse Rate with Masimo SpO.
- #121-002196-00: NIBP and Pulse Rate with Masimo SpO and SmarTemp.
- #121-002200-00: NIBP and Pulse Rate with Nellcor OxiMax SpO and Exergen Temporal Temp.
- #121-002199-00: NIBP and Pulse Rate with Masimo SpO and Exergen Temporal Temp.
- #121-002204-00: NIBP and Pulse Rate with Nellcor OxiMax SpO and Mindray Integrated CO.
- #121-002206-00: NIBP and Pulse Rate with Nellcor OxiMax SpO, SmarTemp, and Mindray Low Flow Sidestream CO.
- #121-002203-00: NIBP and Pulse Rate with Masimo SpO and Mindray Low Flow Sidestream CO.
- #121-002427-00: NIBP and Pulse Rate with Masimo SpO, TrueTemp, and Mindray Low Flow Sidestream CO.
- #121-002222-00: NIBP and Pulse Rate with Nellcor OxiMax SpO, Exergen Temporal Temp, and Mindray Low Flow Sidestream CO.
- #121-002208-00: NIBP and Pulse Rate with Masimo SpO, Exergen Temporal Temp, and Mindray Low Flow Sidestream CO.
