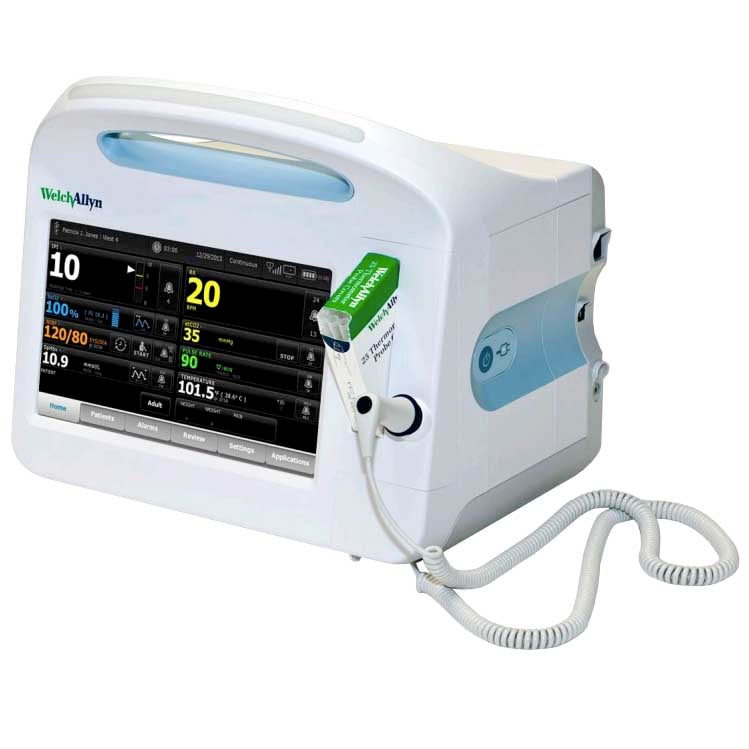

Welch Allyn Connex 6700 Vital Signs Monitor

Welch Allyn Connex 6700 Vital Signs Monitor
Key Features
  • SKU: WLA-67MXTX-B
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 2 Years

  • Learn more:

Contact The Manufacturer
  • MFR: Welch Allyn
    Ships from Manufacturer
  • MPN: 67MXTX-B
  • Phone: (800) 535-6663
$5,380.00 $4,954.00
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

Free Returns

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

The Welch Allyn Connex 6700 Vital Signs Monitor includes SureBP Non-invasive Blood Pressure, Pulse Rate, MAP, Custom Scoring, Nurse Call, Four USB Ports for Accessories, and power cord.

Warranty: 2 Years.

The Welch Allyn Connex 6700 Vital Signs Monitor is a proven connected vital signs solution for busy general care floors with the option to expand to continuous monitoring for higher-risk patients. Its intuitive, touchscreen monitor features bright, vivid colors for improved workflows and training. Adaptable for most low-acuity healthcare environments and clinical workflow, it can measure pulse oximetry, non-invasive blood pressure, temperature, EtCo2, respiration, and more. Multiple profiles support spot check vitals, averaging, intervals, and continuous monitoring workflows.

Features

Welch Allyn Connex 6700 Vital Signs Monitor Features

  • SureBP technology can provide BP in only 15 seconds.
  • SureTemp Plus Oral/Axillary or Braun ThermoScan PRO 6000 Tympanic Thermometry.
  • Choice of leading SpO2 technologies: Masimo and Nellcor.
  • Medtronic Microstream Capnography (EtCo2) with Integrated Pulmonary Index (IPI).
  • 3- or 5-Lead ECG with arrhythmia detection.
  • Masimo Acoustic Respiratory Monitoring (RRa).
  • Secure: FIPS-approved encryption of transmitted data and a range of additional security features.
  • Customizable workflow options for documenting patient observations (ie. Is and Os, Pain Scale) and vitals modifiers (ie. BP cuff location).
  • Automated Early Warning Scoring to help clinicians identify and respond to signs of patient deterioration (ie. MEWS, NEWS).
  • Single sign-on options - including integration with Imprivata - available for quick, secure clinician login.
  • Connectivity to Detecto, Health o meter, and SECA scales.
  • Masimo non-invasive continuous monitoring of total hemoglobin(spHb).
  • EarlySense contact-free respiratory monitoring and motion sensing.
  • Connex Central Station integration for centralized monitoring and alarm management.
  • Options for WiFi and Ethernet connectivity to EMR systems.

Specifications

Welch Allyn Connex 6700 Vital Signs Monitor Specifications

  • Physical Dimensions: 10" x 11" x 6" (25.4 cm x 27.9 cm x 15.2 cm).
  • Weight (including battery): 9.5 lb (4.3 kg).
  • Display Area: 8" x 4" (20.3 cm x 10.2 cm).
  • Resolution: 1024 x 600 pixels.
  • Battery: 9-cell battery.
    • Rating: 10.8 V, 6.75 Ah (73 Wh).
    • Composition: Lithium-ion.
    • Charge Time to 80% Capacity: 2 hr 25 min.
    • Charge Time to 100% Capacity: 4 hr.
    • Battery Life: 7.8 hr.
  • NIBP:
    • Systolic Range:
      • Adult: 30 to 260 mmHg (StepBP, SureBP).
      • Pediatric: 30 to 260 mmHg (StepBP, SureBP).
      • Neonate: 20 to 120 mmHg (StepBP).
    • Diastolic Range:
      • Adult: 20 to 220 mmHg (StepBP, SureBP).
      • Pediatric: 20 to 220 mmHg (StepBP, SureBP).
      • Neonate: 10 to 110 mmHg (StepBP).
    • Cuff Inflation Target:
      • Adult: 160 mmHg (StepBP).
      • Pediatric: 120 mmHg (StepBP).
      • Neonate: 90 mmHg (StepBP).
    • Maximum Target Pressure:
      • Adult: 280 mmHg (StepBP, SureBP).
      • Pediatric: 280 mmHg (StepBP, SureBP).
      • Neonate: 130 mmHg (StepBP).
  • Blood Pressure Determination Time (Typical): 15 seconds (SureBP).
  • Blood Pressure Accuracy Meets or Exceeds: ANSI.AAMI SP10:2002 standards.
  • SureTemp Temperature Range: 80 degrees F to 110 degrees F (26.7 degrees C to 43.3 degrees C).
  • Braun Temperature Range: 68 degrees F to 108 degrees F (20 degrees C to 42.2 degrees C).
  • SpO2 Performance Measurement Range: 1 to 100%.
  • Operating Temperature: 50 degrees F to 104 degrees F (10 degrees C to 40 degrees C).
  • Storage Temperature: -4 degrees F to 122 degrees F (-20 degrees C to 42.2 degrees C).
  • Operating Altitude: -557 to 10,000 feet (-170 m to 3,048 m).
  • Operating Humidity: 15 to 95% non-condensing.
  • Storage Humidity: 15% to 95% non-condensing.

    • Configurations

    Welch Allyn Connex 6700 Vital Signs Monitor Configurations

    • #67MXTX-B: Masimo SpO2, SureTemp Plus Thermometry.
    • #67NXEX-B: Nellcor SpO2, Braun ThermoScan PRO 6000 Thermometry.
    • #67NXTX-B: Nellcor SpO2, SureTemp Plus Thermometry.
    • #67MXEX-B: Masimo SpO2, Braun ThermoScan PRO 6000 Thermometry.
    • #67MXTP-B: Masimo SpO2, SureTemp Plus Thermometry, Internal Printer.
    • #67NXTP-B: Nellcor SpO2, SureTemp Plus Thermometry, Internal Printer.
    • #67MCTX-B: Masimo SpO2, Covidien Capnography, SureTemp Plus Thermometry.
    • #67NCTX-B: Nellcor SpO2, Covidien Capnography, SureTemp Plus Thermometry.
    • #67MSTX-B: Masimo SpO2, EarlySense Contact-Free Monitoring (Includes One Contact-Free Sensor #105481), SureTemp Plus Thermometry.
    • #67NSTX-B: Nellcor SpO2, EarlySense Contact-Free Monitoring (Includes One Contact-Free Sensor # 105481), SureTemp Plus Thermometry.
    • #67MCTP-B: Masimo SpO2, Covidien Capnography, SureTemp Plus Thermometry, Internal Printer.
    • #67NCTP-B: Nellcor SpO2, Covidien Capnography, SureTemp Plus Thermometry, Internal Printer.
