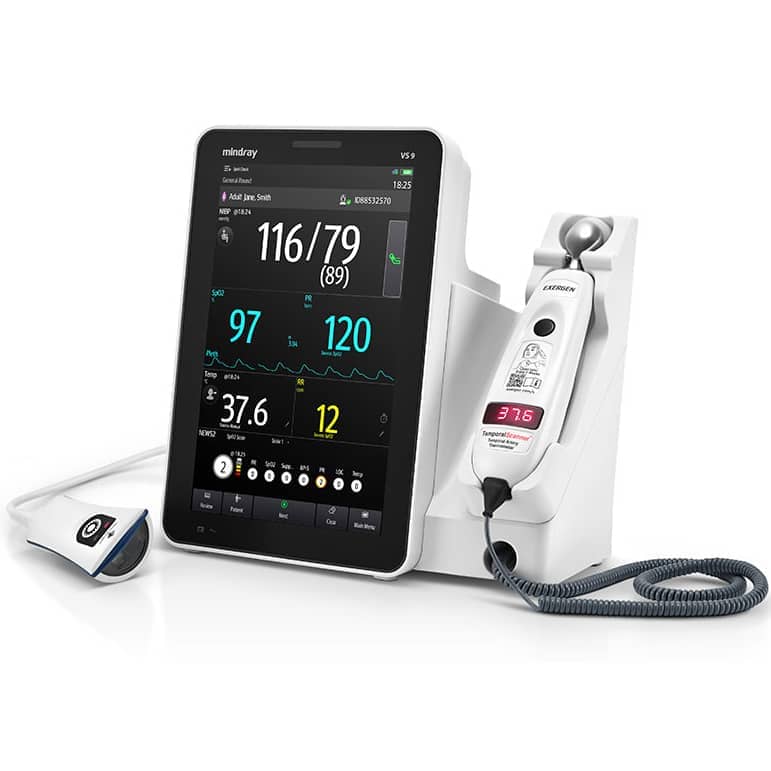

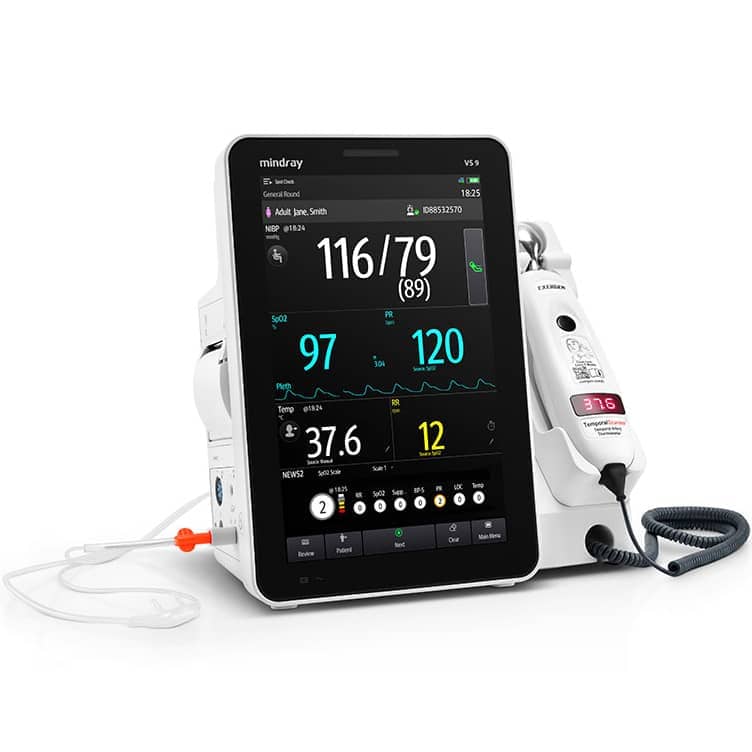

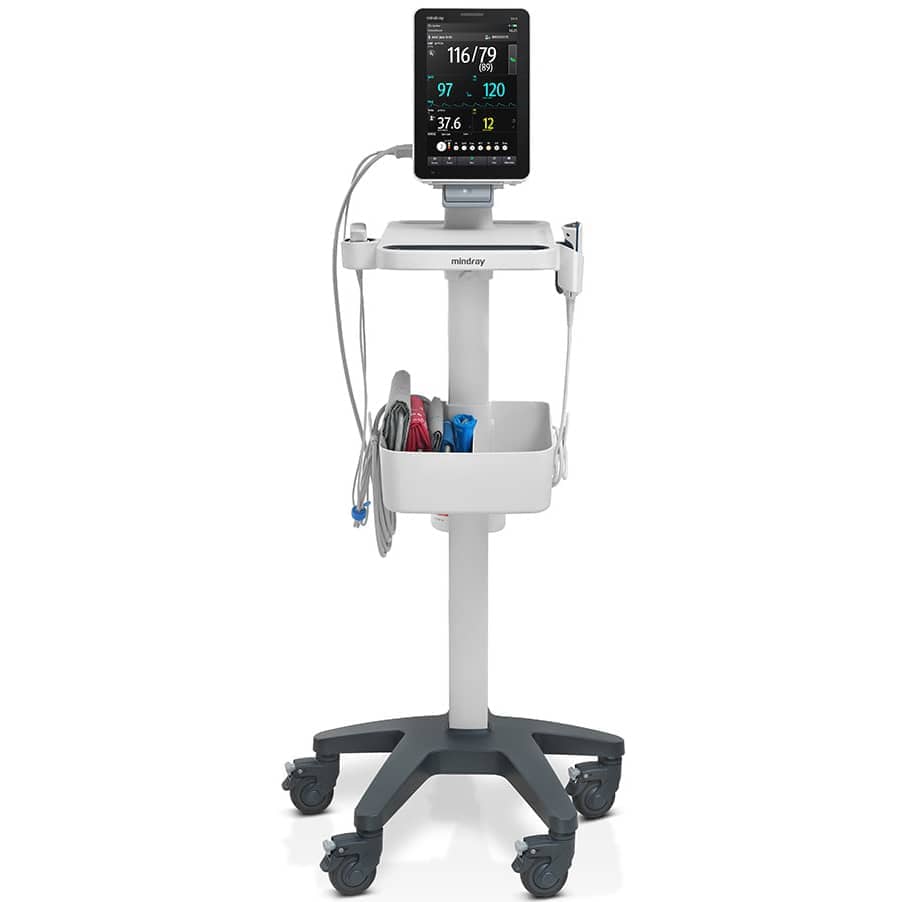

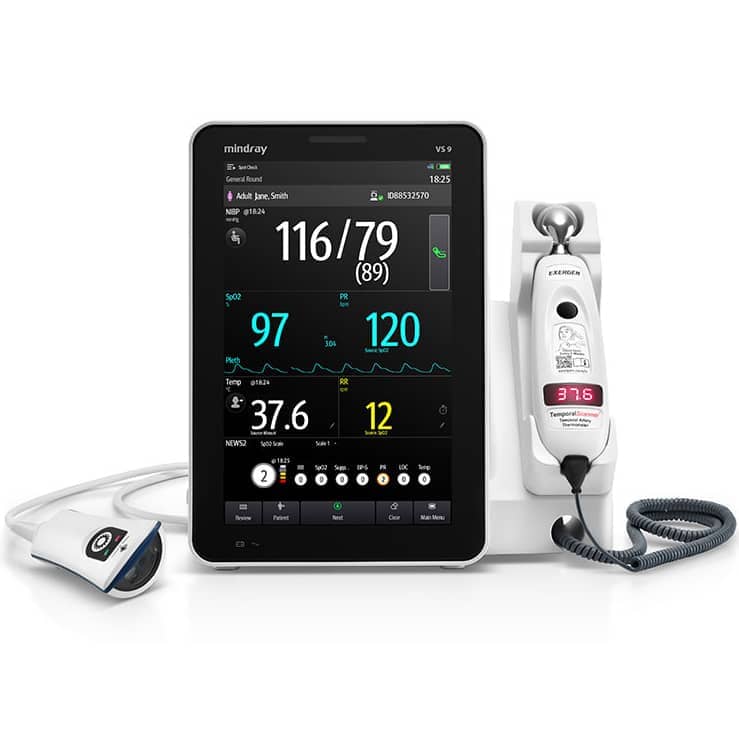

Mindray VS 9 Wireless Vital Signs Monitor (2.4/5 GHz)
- SKU: MDY-121-002192-00
-
Condition:
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
-
Country of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: ChinaCountry of Origin: China
-
Warranty:
Warranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 YearsWarranty: 3 Years
- 10.1″ multi-gesture, capacitive touchscreen display with an intuitive user interface
- TrueBP quickly measures blood pressure on inflation in about 15 seconds
- Stores up to 5,000 measurements, accessible by patient ID for easy review
- Wireless capabilities allow for mobility between patients and real-time data sent from the POC directly to the EMR
-
Learn more:
-
MFR:
Mindray
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
This item ships from MFI Medical
The displayed information indicates the present stock level of this item. Additional quantity is available and may have an extended estimated delivery range. We will provide you with regular updates throughout the order process.
Items shipped from the manufacturer
This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.
Special order item
A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
-
MPN: 121-002192-00
MPN: 121-002193-00
MPN: 121-002198-00
MPN: 121-002195-00
MPN: 121-002197-00
MPN: 121-002194-00
MPN: 121-002196-00
MPN: 121-002200-00
MPN: 121-002199-00
MPN: 121-002204-00
MPN: 121-002206-00
MPN: 121-002203-00
MPN: 121-002205-00
MPN: 121-002222-00
MPN: 121-002208-00
MPN: 121-002427-00
- Phone: (888) 850-4597
Shop with Confidence
Free Shipping
Free Returns
Price Match Guarantee
Sales Tax Exemption
Dedicated Account Managers
Description
The Mindray VS 9 Wireless Vital Signs Monitor is available in several configurations to meet your needs including NIBP, pulse rate, SpO2, and temperature options.
Warranty: 3 Years.
Note: Pictured barcode scanner is sold separately. The exergen thermometer and other optional accessories are ONLY included WHEN selected as an option on the configurations drop down menu.
Boasting a variety of functionality and parameters that provide tools to support clinical decisions, the VS 9 Wireless Vital Signs Monitor is ideally suited for spot check and continuous vital signs monitoring which helps clinicians get a complete picture of patient health. By elevating a department's workflow to new heights, it also addresses the needs of low acuity areas. Thanks to capacitive touchscreen technology, like you see with your smartphone, the VS 9 Wireless is extremely easy and efficient to use. It can be connected so clinicians can send vital signs at the point of care (POC) reducing the possibility of errors. With Mindray’s innovative BeneVision Distributed Monitoring System (DMS) caregivers can centrally view patient information sent from the POC and wireless capabilities allow for mobility between patients and real-time data sent from the POC directly to the EMR.
Features
Mindray VS 9 Wireless Vital Signs Monitor Features

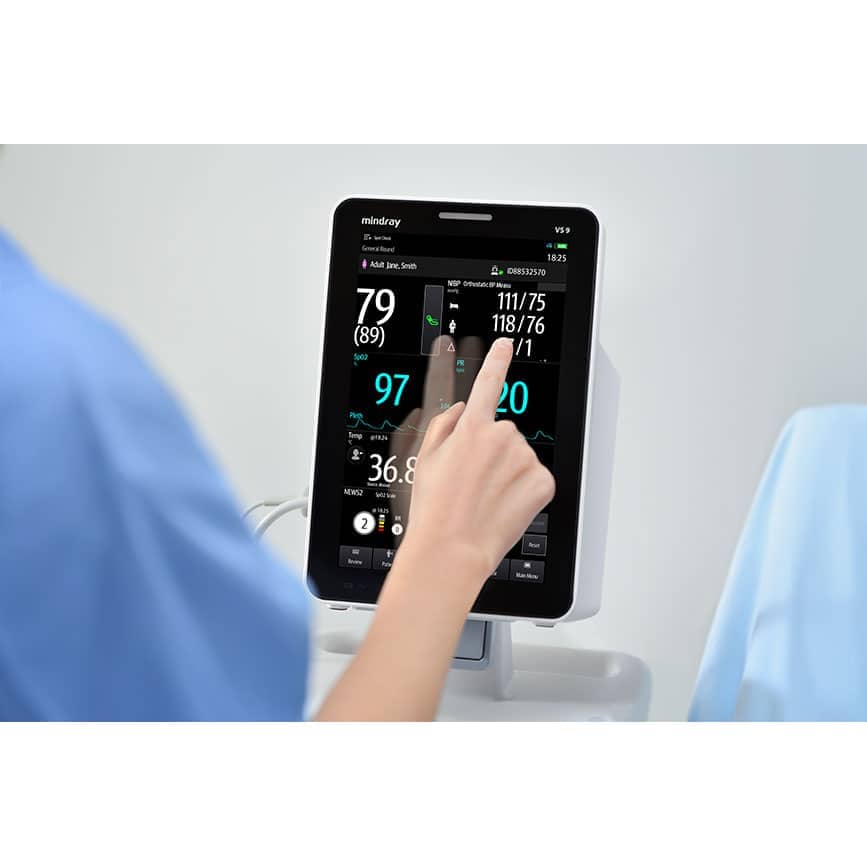

- 10.1″ multi-gesture, capacitive touchscreen display with an intuitive user interface.
- Configurable workflows defined by department.
- TrueBP quickly measures blood pressure on inflation in about 15 seconds.
- Manual, automatic, and customizable NIBP measurement modes offer flexibility for various clinical applications.
- Orthostatic BP helps to assess a patient’s fall risk.
- BP Average functionality provides an average BP over a specified time and a number of measurements.
- Available SpO2 technology includes Masimo SET (standard) or Nellcor Oximax.
- Temperature options include: Exergen Temporal Scanner, and Welch Allyn stand-alone SureTemp Plus.
- Low flow sidestream CO2 provides measurements of FiCO2, etCO2, and awRR with a CO2 waveform.
- Standard Modified Early Warning Score (MEWS) offers support for clinical decisions.
- Customize up to 30 manual inputs, such as respiration rate, glucose, and height.
- Infographic pain scale to document pain level.
- Stores up to 5,000 measurements, accessible by patient ID for easy review.
Specifications
Mindray VS 9 Wireless Vital Signs Monitor Specifications
Physical Specifications:
- Dimensions: 10.8" H x 7.3" W x 5.3" D (27.5 cm H x 18.5 cm W x 13.5 cm D).
- Screen: 10.1-inch, 1280 x 800 pixels standard capacitive touchscreen supports multi-touch operation.
- Weight: 7.5 lb (3.4 kg).
Bluetooth:
- Protocol: Bluetooth 5.
- Modulation Mode: GFSK.
- Operating Frequency: 2402 MHz to 2480 MHz.
- Wireless Data Rate: 2 Mbps, 1 Mbps, 125 kbps.
- Output Power: ≤ 8 dBm ± 4 dB
- Data Security: AES128.
Interfacing:
- Main Unit: AC power connector (1), Network connector (1), RJ45 USB 2.0 connector (2), Multi-Functions connect (1), Equipotential grounding terminal (1), External battery connector (1).
- Barcode Scanner: Support 1D and 2D barcode.
- Thermal Recorder: 3 traces (paper 50 mm width, 20 m length).
- Data Output: HL7, eGateway, VitalsLink (Cerner).
- Auth. Management: MLDAP, Imprivata.
Power:
- Line Voltage: 100 to 240 VAC (±10 %).
- Current: 0.9 to 0.5A.
- Frequency: 50/60 Hz (±3 Hz).
- Battery: 5600mAh rechargeable smart Li-ion battery.
- Recharge Time (Power Off): 4 hours to 100%.
Environmental Requirements:
- Temperature:
- Operating: 0 to 40 °C (without CO2). 5 to 40 °C (with CO2).
- Storage: -20 to 60 °C.
- Humidity:
- Operating: 15 to 95 % (non condensing).
- Storage: 10 to 95 % (non condensing).
- Barometric:
- Operating: 120 to 805.5 mmHg (57 to 107.4 kPa) (without CO2). 430 to 790 mmHg (57.3 to 105.3 kPa) (with CO2).
- Storage: 120 to 805.5 mmHg (16 to 107.4 kPa) (without CO2). 430 to 790 mmHg (57.3 to 105.3 kPa) (with CO2).
Configurations
Mindray VS 9 Wireless Vital Signs Monitor Configurations
- #121-002192-00: Standard NIBP and Pulse Rate.
- #121-002193-00: NIBP and Pulse Rate with SmarTemp.
- #121-002198-00: NIBP and Pulse Rate with Exergen Temporal Temp.
- #121-002195-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2.
- #121-002197-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2 and SmarTemp.
- #121-002194-00: NIBP and Pulse Rate with Masimo SpO2.
- #121-002196-00: NIBP and Pulse Rate with Masimo SpO2 and SmarTemp.
- #121-002200-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2 and Exergen Temporal Temp.
- #121-002199-00: NIBP and Pulse Rate with Masimo SpO2 and Exergen Temporal Temp.
- #121-002204-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2 and Mindray Integrated CO2.
- #121-002206-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2, SmarTemp, and Mindray Low Flow Sidestream CO2.
- #121-002203-00: NIBP and Pulse Rate with Masimo SpO2 and Mindray Low Flow Sidestream CO2.
- #121-002427-00: NIBP and Pulse Rate with Masimo SpO2, TrueTemp, and Mindray Low Flow Sidestream CO2.
- #121-002222-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2, Exergen Temporal Temp, and Mindray Low Flow Sidestream CO2.
- #121-002208-00: NIBP and Pulse Rate with Masimo SpO2, Exergen Temporal Temp, and Mindray Low Flow Sidestream CO2.
Literature
Mindray VS 9 Wireless Vital Signs Monitor Literature
Cleaning and Disinfecting Mindray Patient Monitoring Products Flyer
Mindray Supplies and Accessories Catalog
Mindray VS 9 Vital Signs Monitor with Cerner CareAware Vitals Link
Mindray VS 9 Vital Signs Monitor Lifecycle Solutions Guide
