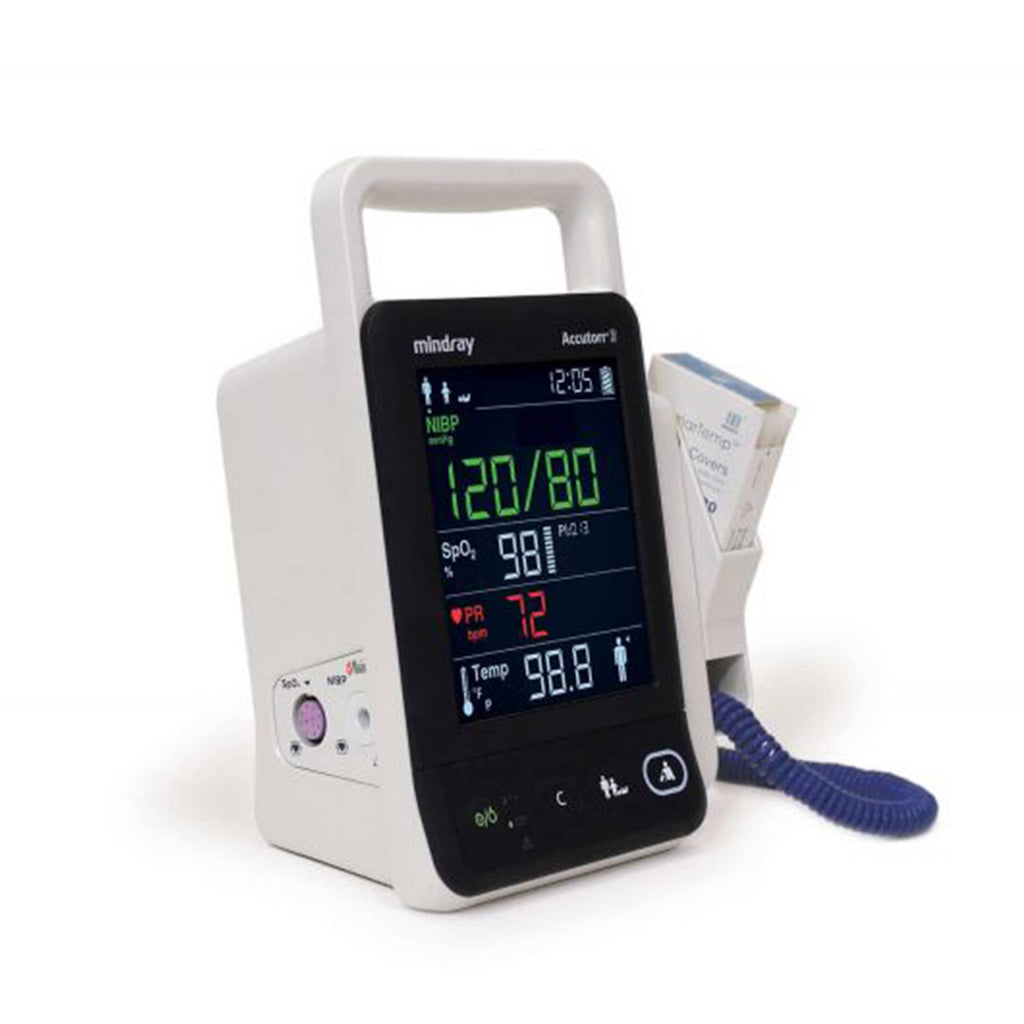

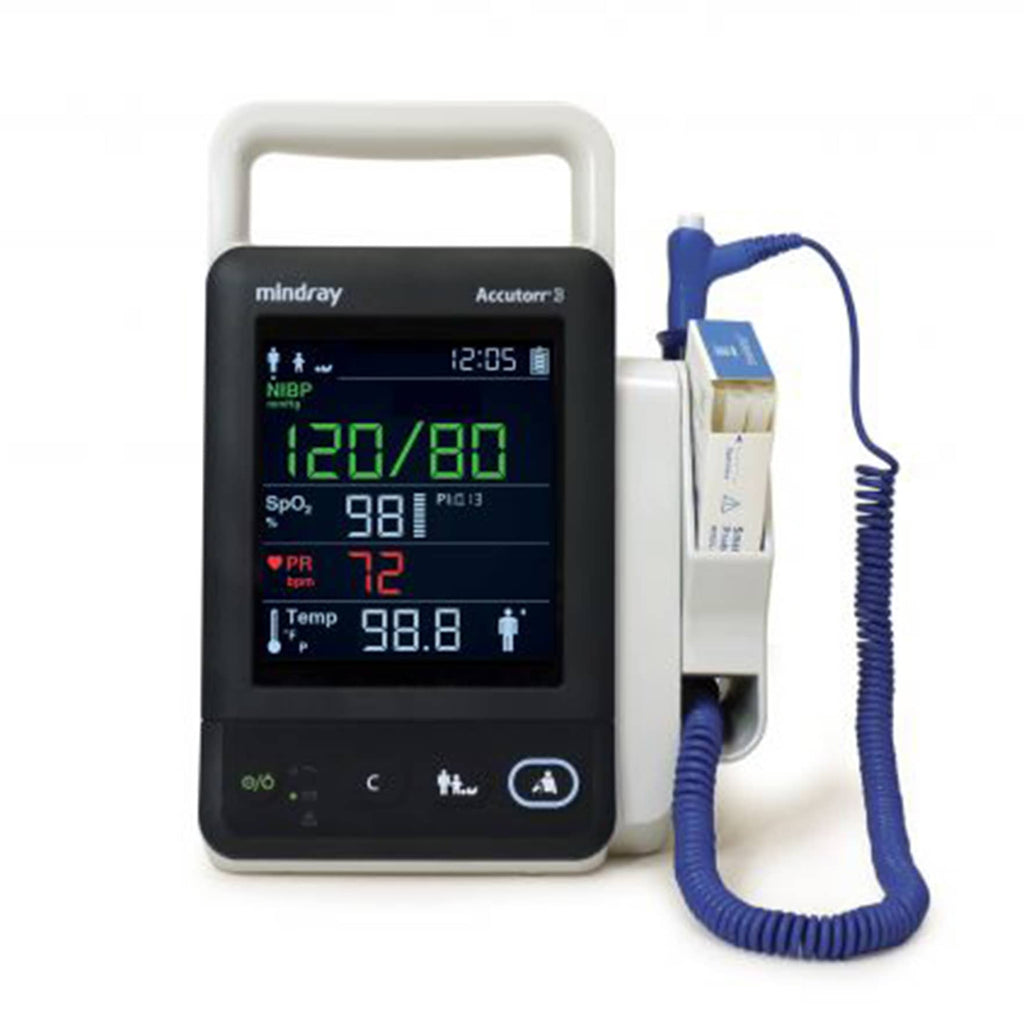

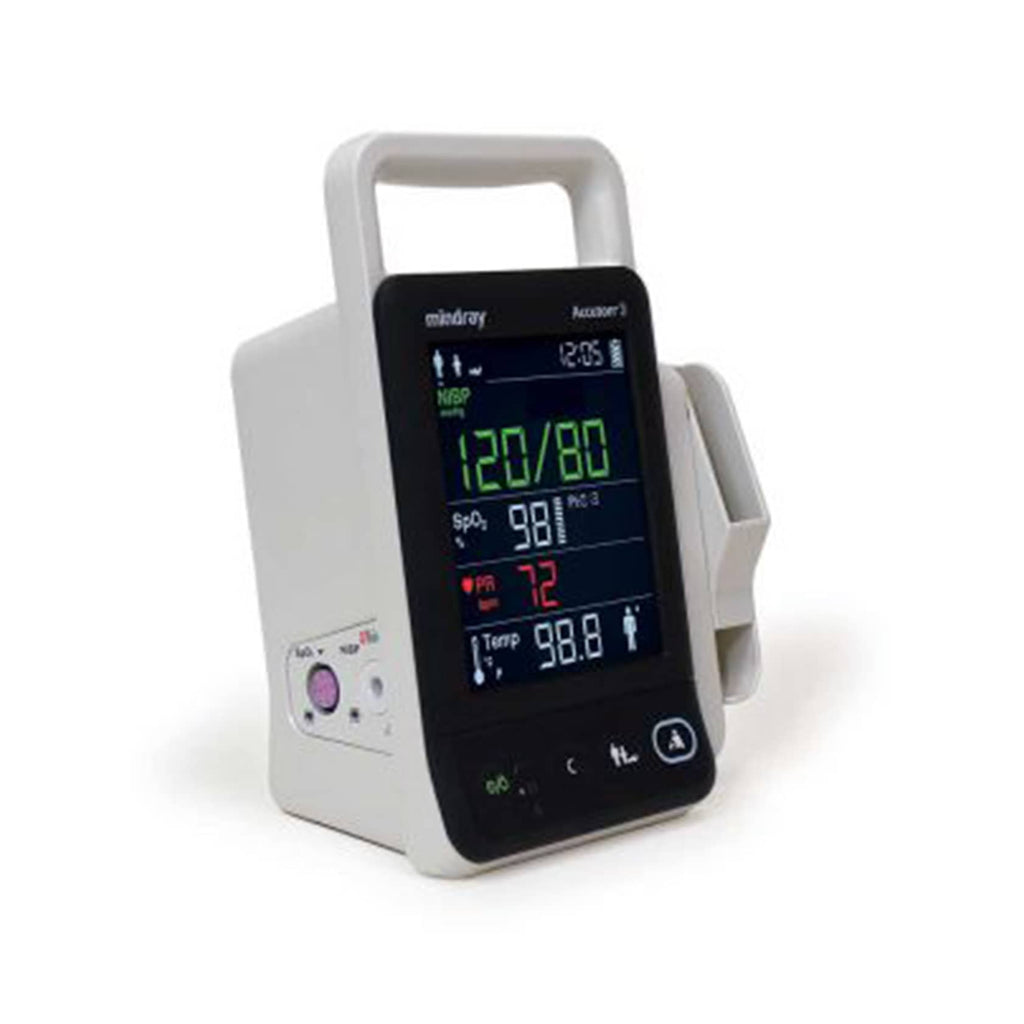

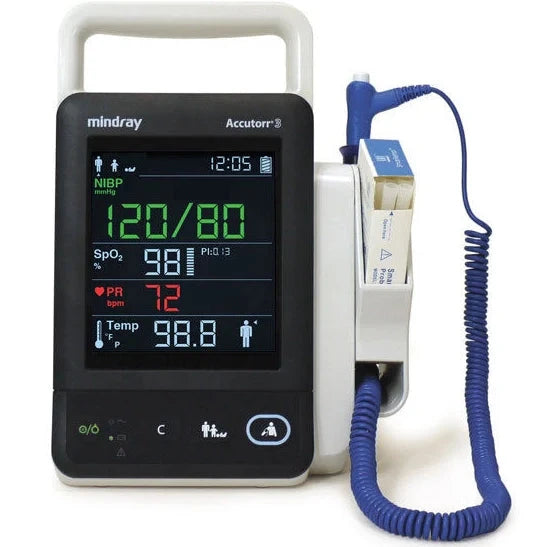

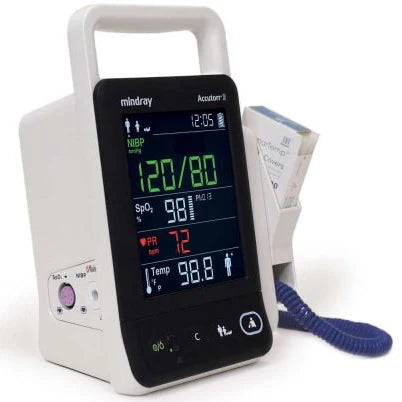

Mindray Accutorr 3 Spot Check Monitor

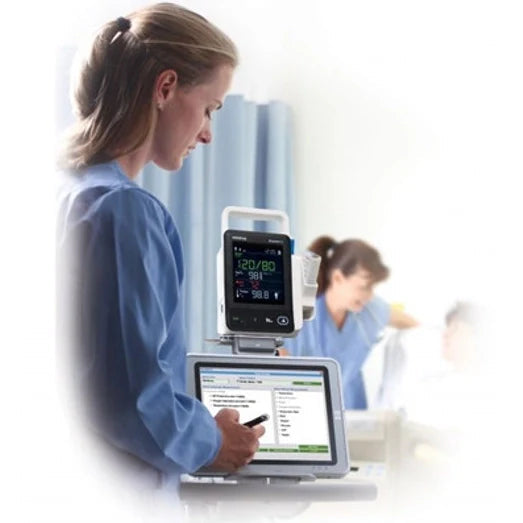

The Mindray Accutorr 3 Spot Check Monitor is ideally suited for the low acuity areas of a hospital thanks to it's compact, lightweight, and portable design. It can be easily transported from bed to bed with its integrated handle or the optional compact rolling stand. The touchpad user interface also makes it incredibly user friendly and easy to use.

Warranty: 3 Years.

The Accutorr 3 features a standard RS-232 interface that allows for the direct export of vital signs data into an Electronic Medical Record (EMR) and a high definition LCD screen that provides a clear view of patient data. The Li-ion battery delivers up to 22 hours of continuous use.

The following accessories are included standard with every configuration: an NIBP Cuff & Hose, a Power Cord, and a Manual. If an SpO₂ or SmarTemp configuration is selected the appropriate SpO₂ sensor & cable and the necessary Temperature probe & covers are also included. The Mindray Lithium Ion Battery Pack (#115-018012-00) is NOT required and sold separately.

Mindray Accutorr 3 Spot Check Monitor Features

• High definition LCD provides clear view of patient data.
• Highly mobile vital signs solution weighing 4 lb (1.9 kg).
• All functions accessible through the four button touchpad.
• Standard parameters include NIBP and pulse rate.
• Available SpO₂ technology includes Masimo SET (standard) or Nellcor Oximax.
• PI (Perfusion Index) provides indication of SpO₂ measurement reliability.
• Comfortable carrying handle.
• Li-ion battery provides up to 22 hours of continuous use.
• The four button user interface allows for simple navigation through all the Accutorr 3’s parameters and settings.
• Easy to select between adult, pediatric, and neonatal patient size settings.
• Standard RS-232 communication supports connections to EMR solutions.
• Mounting options include an easy to maneuver rolling stand and wall mounts with quick release mounting brackets.

Mindray Accutorr 3 Spot Check Monitor Specifications

Interfacing

• Connectors: Serial port for software upgrade and DIAP protocol.

Battery

• Type: Rechargeable lithium ion.
• Run Time: Up to 22 hours when powered by a new fully-charged battery at 77° F ± 41° F (25° C ± 5° C) with SpO₂ and NIBP measurements at an interval of 15 minutes.
• Charge Time
  • Monitor Power Off: Less than 5.5 hours to 90%. Less than 6.5 hours to 100%.
  • Monitor Power On: Less than 10.5 hours to 90%. Less than 11.5 hours to 100%.

Physical Dimensions

• Dimension: 9.6" H x 4.7" W x 5.3" D (24.4 cm H x 11.9 cm W x 13.5 cm D).
• Weight: < 4.2 lb (< 1.9 kg) including battery.

Environmental Conditions

• Operating Temperature: 0° C to 40° C (SmarTemp: 5° C to 40° C).
• Operating Humidity: 15% to 95%, non-condensing.
• Barometric: 427.5 to 805.5 mmHg (57.0 to107.4 kPa).

Power

• Power Requirements: 100 to 240 VAC, 0.9 to 0.5 A, 50/60 Hz.

Safety

• Type of Protection: Meets the requirements of IEC 60601series.

Mindray Accutorr 3 Spot Check Monitor Configurations

• #6102F-PA00017: Standard NIBP and Pulse Rate.
• #6102F-PA00031: Standard NIBP and Pulse Rate with SmarTemp.
• #6102F-PA00035: Standard NIBP and Pulse Rate with Nellcor OxiMax SpO₂.
• #6102F-PA00025: Standard NIBP and Pulse Rate with Masimo SpO₂.
• #6102F-PA00036: Standard NIBP and Pulse Rate with SmarTemp and Nellcor OxiMax SpO₂.
• #6102F-PA00028: Standard NIBP and Pulse Rate with SmarTemp and Masimo SpO₂.

Mindray Accutorr 3 Spot Check Monitor Accessories

The Mindray Accutorr 3 Spot Check Monitor is commonly purchased with the compatible:

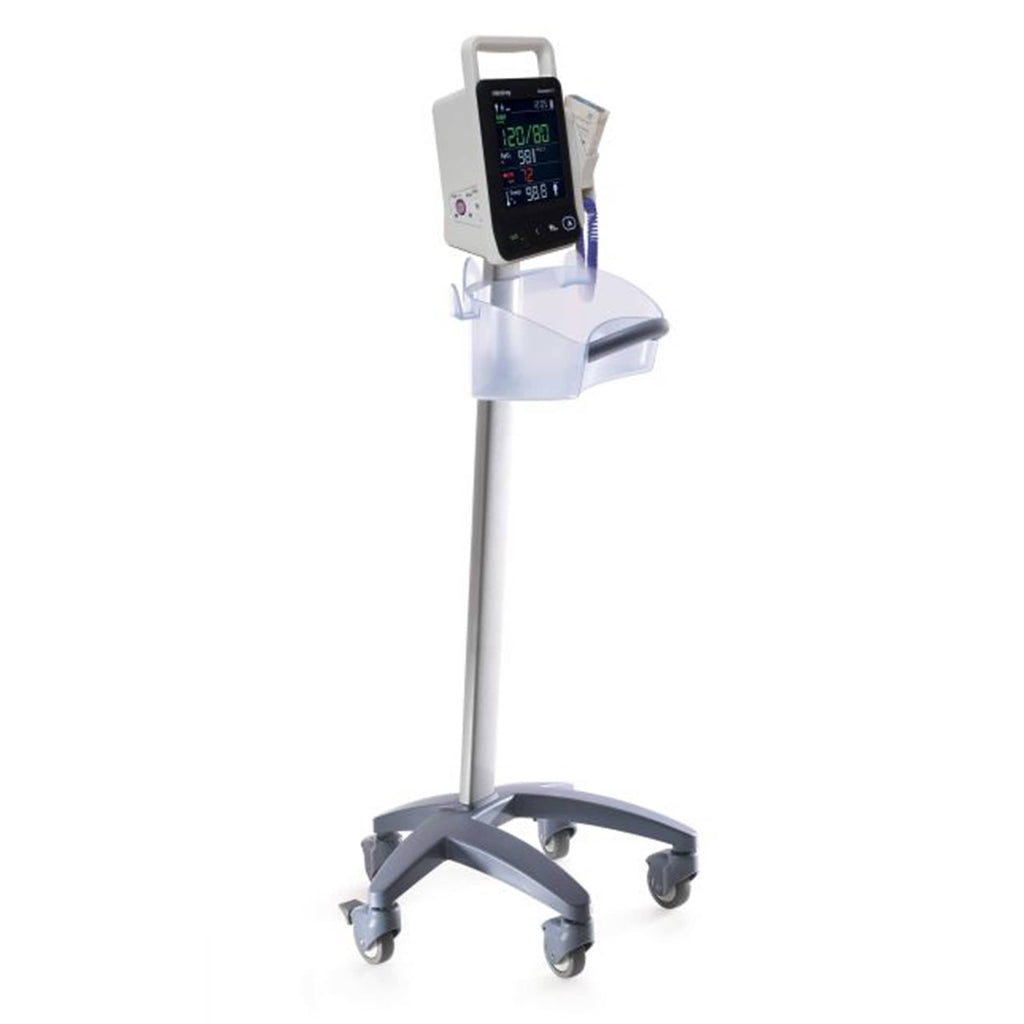

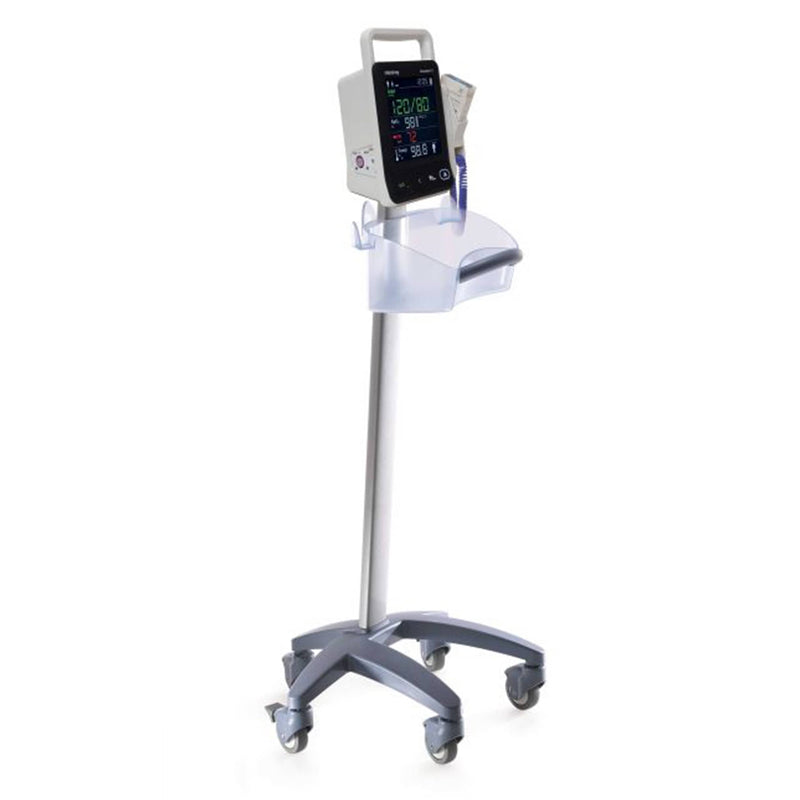

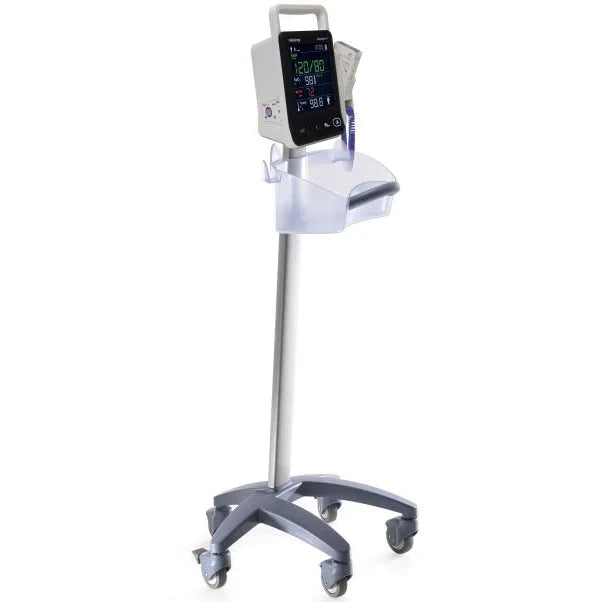

• #045-002960-00: Mindray Rolling Stand with Quick Release Mount and Cable Management.
