Description

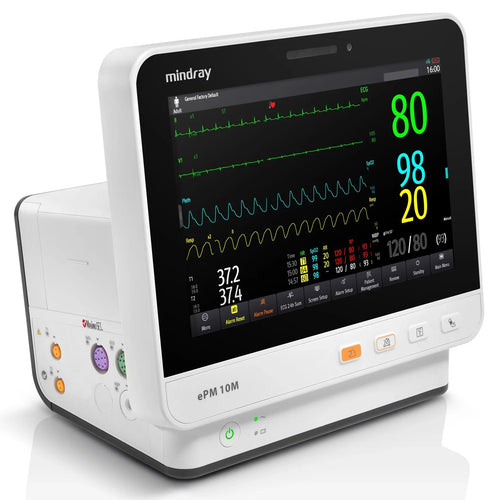

The Mindray ePM 10M Patient Monitor utilizes a unique plug-and-play module structure for more advanced monitoring functions such as CO. This helps assist clinicians to identify signs of patient deterioration due to respiratory distress. The ePM 10M is integrated with 3 and 5-lead ECG, SpO, NIBP, respiration, and temperature to provide a robust parameter platform to meet the needs of the ambulatory surgical care environment.
Warranty: 3 Years - Free from Defects in Workmanship and Materials.
The next evolution of the Passport legacy of monitoring the ePM 10M Patient Monitor features a smartphone-like user interface that delivers 90% of all common monitoring functions with just two gestures. In fact, one simple swipe enables clinicians to see patient data in large numerics mode and when followed with an additional swipe, a mini-trend window provides an immediate view of critical patient data which improves workflow at the point-of-care.
Features
Mindray ePM 10M Patient Monitor Features
- 10" multi-gesture, capacitive touchscreen display with an intuitive user interface.
- 8 waveforms.
- Integrated parameters include 3/5-lead ECG, SpO, NIBP, respiration, and temperature.
- Arrhythmia analysis with atrial fibrillation (Afib) detection.
- Extensive data storage capability for trend data, alarms, events, and 48 hours of full disclosure.
- Integrated HL7 and DIAP communication protocol for interface to EMR.
- Optional ST and QT/QTc monitoring.
- Available wireless monitoring.
- Optional JADAK 2D barcode scanner.
Specifications
Mindray ePM 10M Patient Monitor Specifications
Physical Dimensions:
- Size: 10.6" x 9.9" x 6.3" (26.9 cm x 25.2 cm x 15.9 cm).
- Weight: 8.8 lb (4.0 Kg).
Power Requirements:
- Line Voltage: 100 to 240 VAC (± 10 %).
- Maximum Current: 2.0 A.
- Frequency: 50/60 Hz (± 3 Hz).
- Battery: Rechargeable lithium-ion, 4500mAh. ≥ 4 hours run time.
- Recharge Time (Power Off): 5 hours to 90%.
Environmental Requirements:
- Temperature:
- Operating: 0 to 40 °C (without AG and CO module). 10 to 40 °C (with AG and CO module).
- Storage: -20 to 60 °C.
- Humidity:
- Operating: 15 to 95% (non condensing).
- Storage: 10 to 95% (non condensing).
- Barometric:
- Operating: 427.5 to 805.5 mmHg (57.0 to 107.4 kPa without AG and CO module).
- Storage: 120 to 805.5 mmHg (16.0 to 107.4 kPa without AG and CO module).
Interfacing:
- Main Unit: AC power connector, VGA port, USB 2.0 connectors (2x), Analog output/nurse call/defib. Sync/Serial Port, Integrated module rack, for 2 slots.
- Barcode Scanner: Supports 1D and 2D barcode.
- Thermal Recorder: 3 traces (paper 50 mm width, 20 m length).
- Network Printer: Support.
Configurations
Mindray ePM 10M Patient Monitor Configurations
- #121-001874-00: With Nellcor OxiMax SpO.
- #121-001870-00: With Masimo SET SpO.
- #121-001875-00: With Nellcor OxiMax SpO and 2.4/5 GHz Wireless.
- #121-002116-00: With Masimo SpO and 5 GHz Wireless.
