Mindray ePM 12M Patient Monitor

Name: Mindray ePM 12M Patient Monitor
Brand: Mindray
SKU: MDY-121-001888-00
Price: 4906.02 USD
Availability: InStock

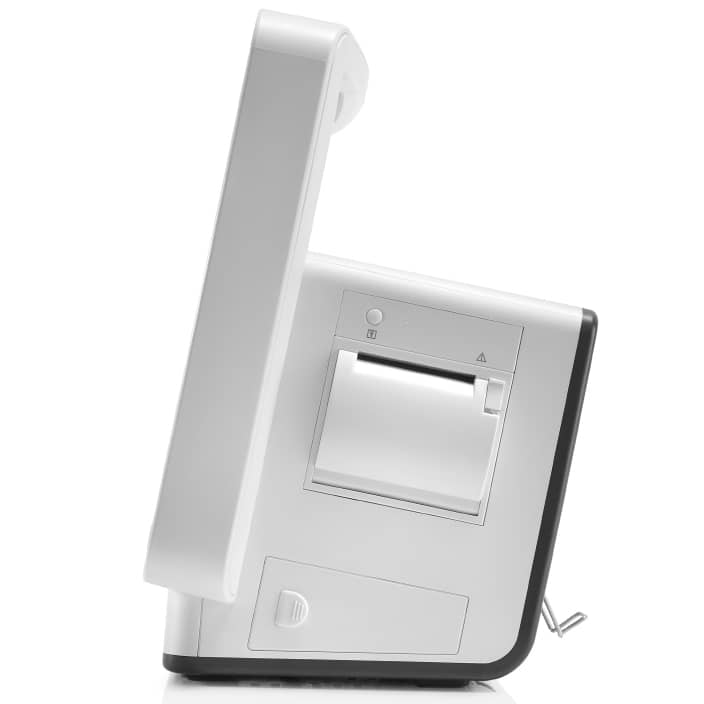

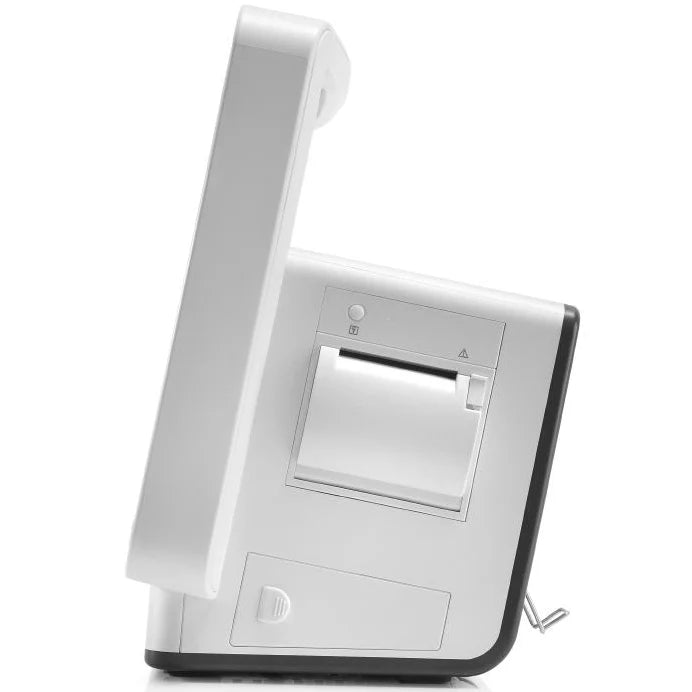

Mindray ePM 12M Patient Monitor Side View

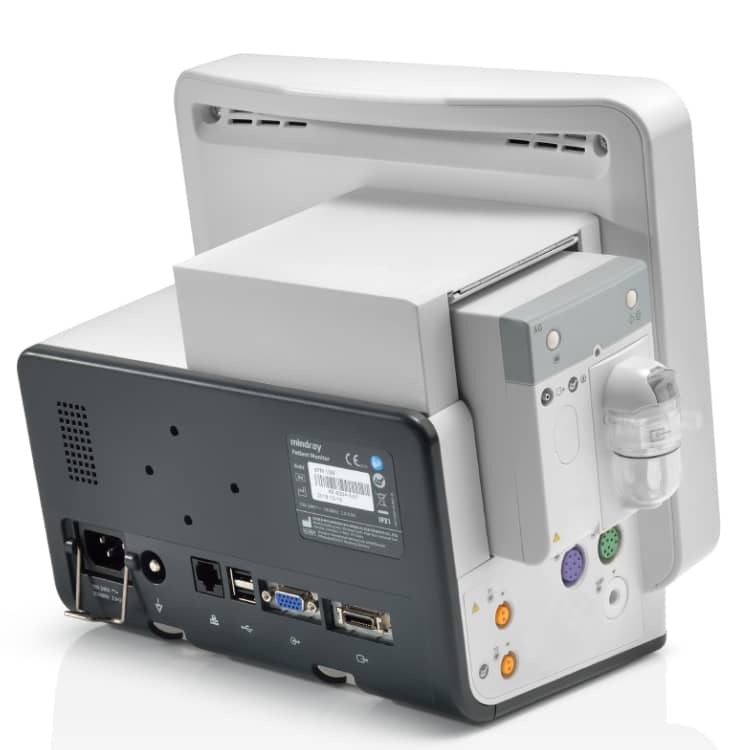

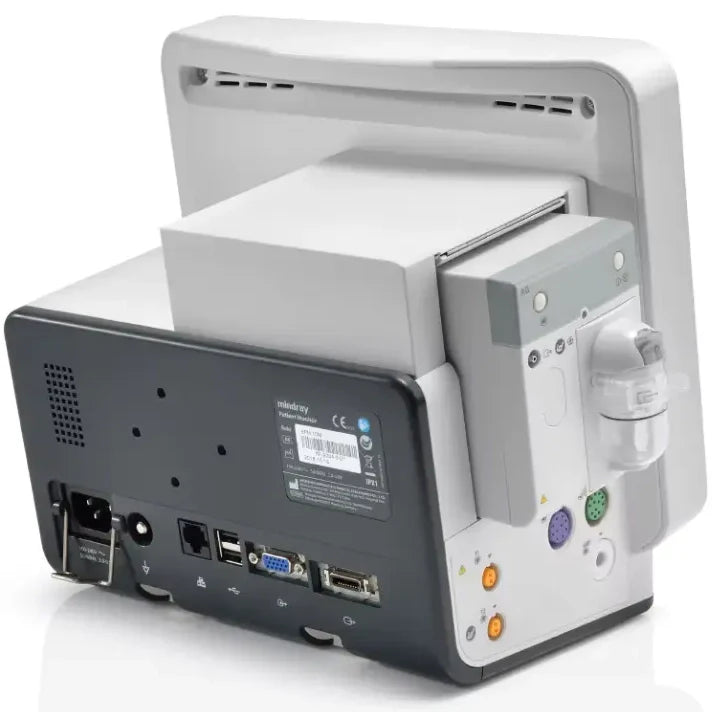

Mindray ePM 12M Patient Monitor Rear View

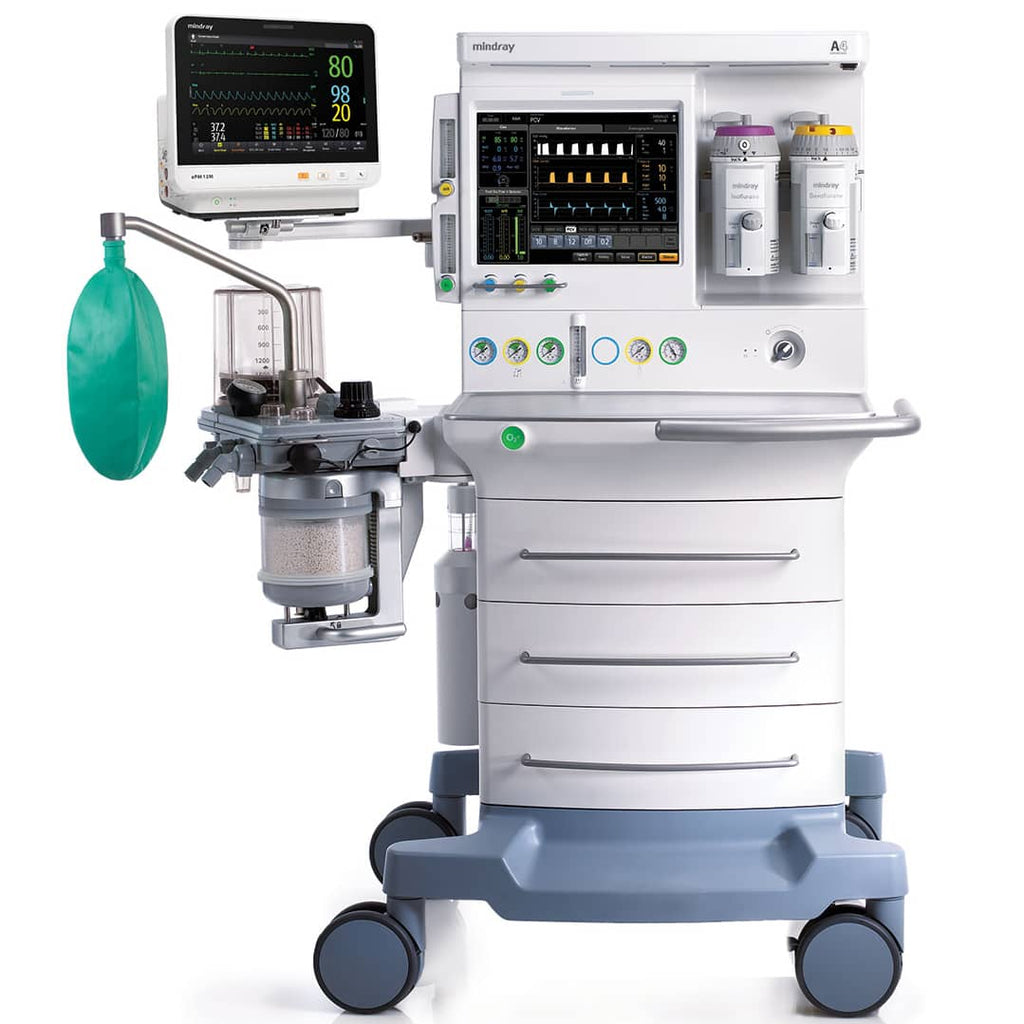

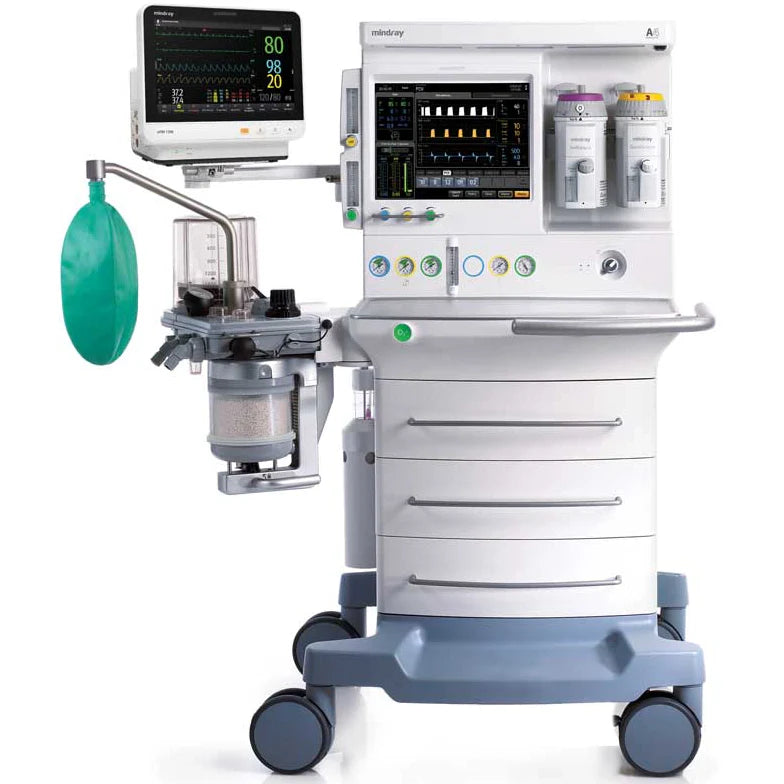

Mindray ePM 12M Patient Monitor with Cart

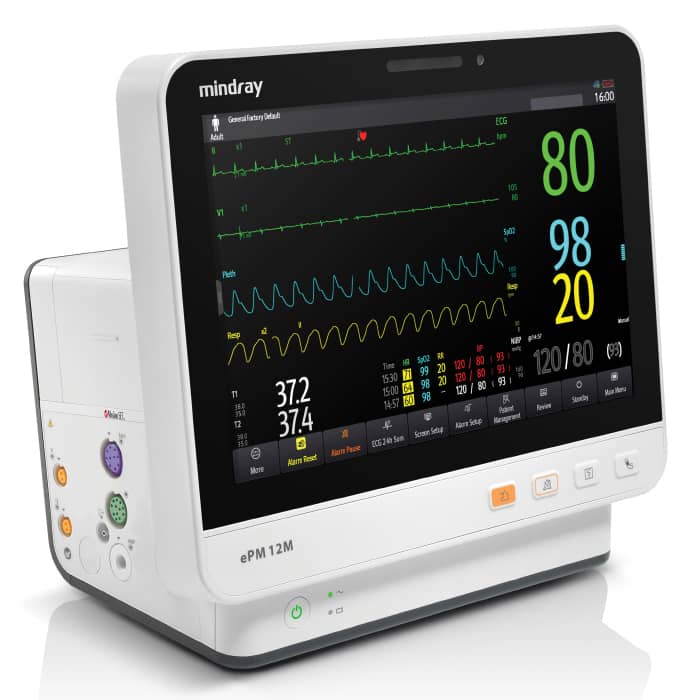

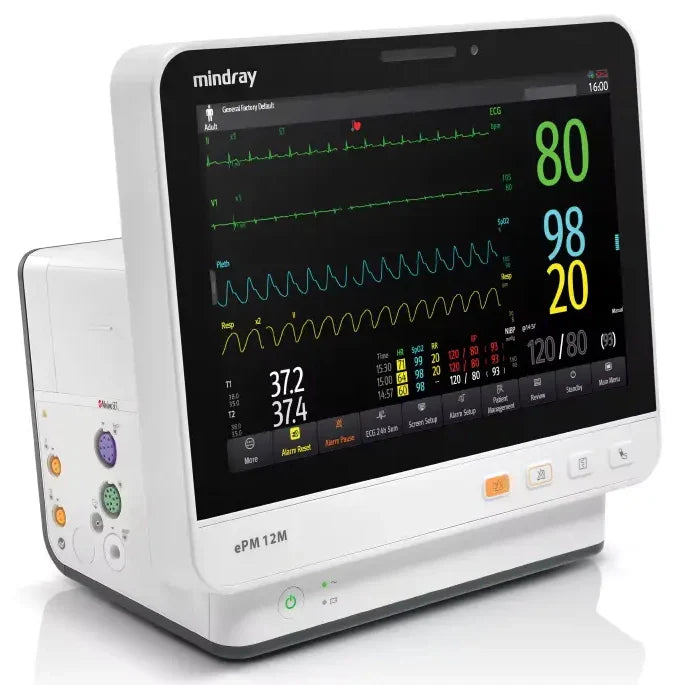

Mindray ePM 12M Patient Monitor

Liquid error (snippets/ced-product-media line 113): external_video_tag does not support String

Key Features

SKU: MDY-121-001888-00
Condition: Factory New
Country of Origin: China
Warranty: 3 Years
12" multi-gesture, capacitive touchscreen display with an intuitive user interface
10 waveforms
Integrated parameters include 3, 5-lead ECG, Masimo SET SpO2, NIBP, respiration, and temperature
Arrhythmia analysis with atrial fibrillation (Afib) detection comes standard
Learn more:

Contact The Manufacturer

MFR: Mindray

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from MFI Medical

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 121-001888-00

MPN: 121-001879-00

MPN: 121-001890-00

MPN: 121-002120-00

MPN: 121-001884-00

MPN: 121-002119-00

MPN: 121-001894-00

MPN: 121-001881-00

MPN: 121-001892-00

MPN: 121-001886-00
Phone: (888) 850-4597

$4,906.02

Select a Configuration

Variant

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

The Mindray ePM 12M Patient Monitor utilizes a unique plug-and-play module structure for more advanced monitoring functions such as CO₂. This helps assist clinicians identify signs of patient deterioration due to respiratory distress. The ePM 10M is integrated with 3 and 5- lead ECG, SpO₂, NIBP, respiration, and temperature to provide a robust parameter platform to meet the needs of the ambulatory surgical care environment.

Warranty: 3 Years.

Note: Requires the Mindray ePM 12M AG Module and Accessory Kit (#121-001936-00) for the multi-gas function to work.

The next evolution of the Passport legacy of monitoring, the ePM 12M Patient Monitor comes paired with the ePM multi-gas module which automatically identifies and measures the inspired and expired values of O₂, CO₂, N₂O and five anesthetic agents. This makes the ePM 12M one of the most compact and powerful OR monitoring solutions on the market today.

Features

Mindray ePM 12M Patient Monitor Features

12" multi-gesture, capacitive touchscreen display with an intuitive user interface.
10 waveforms.
Integrated parameters include 3, 5-lead ECG, Masimo SET SpO₂, NIBP, respiration, and temperature.
Optional Nellcor OxiMax SpO₂.
Arrhythmia analysis with atrial fibrillation (Afib) detection comes standard.
Optional ST and QT/QTc monitoring.
Extensive data storage capability for trend data, alarms, events, and 48 hours of full disclosure.
Optional Sidestream or Microstream CO₂ module and Multi-gas module.
Available wireless monitoring.
Integrated HL7 and DIAP communication protocol for interface to EMR.
Optional JADAK 2D barcode scanner.

Specifications

Mindray ePM 12M Patient Monitor Specifications

Physical Dimensions:

Size: 12.2" x 11.4" x 6.7" (31.0 cm x 28.9 cm x 16.9 cm).
Weight: 10.6 lb (4.8 Kg).

Power Requirements:

Line Voltage: 100 to 240 VAC (± 10 %).
Maximum Current: 2.0 A.
Frequency: 50/60 Hz (± 3 Hz).
Battery: Rechargeable lithium-ion battery, 4500mAh. ≥ 4 hours run time.
Recharge Time (Power Off): 5 hours to 90%.

Environmental Requirements:

Temperature

Operating: 0 to 40 °C (without AG and CO₂ module). 10 to 40 °C (with AG and CO₂ module).
Storage: -20 to 60 °C.

Humidity

Operating: 15 to 95 % (non condensing).
Storage: 10 to 95 % (non condensing).

Barometric

Operating: 427.5 to 805.5 mmHg (57.0 to 107.4 kPa without AG and CO2 module).
Storage: 120 to 805.5 mmHg (16.0 to 107.4 kPa without AG and CO2 module).

Interfacing:

Main Unit: AC power connector (1), VGA port (1), USB 2.0 connector (2), Analog output/nurse call/defib. Sync/Serial Port (1), Integrated module rack (1), for 2 slots.
Barcode Scanner: Supports 1D and 2D barcode.
Thermal Recorder: 3 traces (paper 50 mm width, 20 m length).
Network Printer: Support.

Configurations

Mindray ePM 12M Patient Monitor Configurations

#121-001888-00: with 3/5 lead ECG, arrhythmia analysis, Nellcor SpO2, NIBP, temperature, respiration.
#121-001879-00: with 3/5 lead ECG, arrhythmia analysis, Masimo SpO2, NIBP, temperature, respiration.
#121-001890-00: with 2.4/5 GHz wireless, 3/5 lead ECG, arrhythmia analysis, Nellcor SpO2, NIBP, temperature, respiration.
#121-002120-00: with 3/5 lead ECG, arrhythmia analysis, Nellcor SpO2, ST/QT/QTc, NIBP, temperature, respiration.
#121-001884-00: with 2.4/5 GHz wireless, 3/5 lead ECG, arrhythmia analysis, Masimo SpO2, NIBP, temperature, respiration.
#121-002119-00: with 3/5 lead ECG, arrhythmia analysis, Masimo SpO2, ST/QT/QTc, NIBP, temperature, respiration.
#121-001894-00: with 3/5 lead ECG, arrhythmia analysis, ST/QT/QTc Nellcor SpO2, NIBP, dual IBP, temperature, respiration.
#121-001881-00: with 3/5 lead ECG, arrhythmia analysis, ST/QT/QTc, Masimo SpO2, NIBP, dual IBP, temperature, respiration.
#121-001892-00: with 2.4/5 GHz wireless, 3/5 lead ECG, arrhythmia analysis, ST/QT/QTc, Nellcor SpO2, NIBP, dual IBP, temperature, respiration.
#121-001886-00: with 2.4/5 GHz wireless, 3/5 lead ECG, arrhythmia analysis, ST/QT/QTc, Masimo SpO2, NIBP, dual IBP, temperature, respiration.
