Description
The Mettler Digital TENS 212 Neuromuscular Stimulator (#ME 212) comes with a carrying case, set of four V-Trode Self-Adhesive Electrodes, 9 Volt battery, lead wires, and instructions.
Before Purchasing: Before we can proceed with your order, please let us know whether you are a doctor, therapist, or have a prescription for the Digital TENS 212 Neuromuscular Stimulator. If you have a prescription, please forward a copy of the prescription to orders@mfimedical.com.
Warranty: 1 Year (Unit) / 90 Days (Accessories) - Defects in Materials and Workmanship.

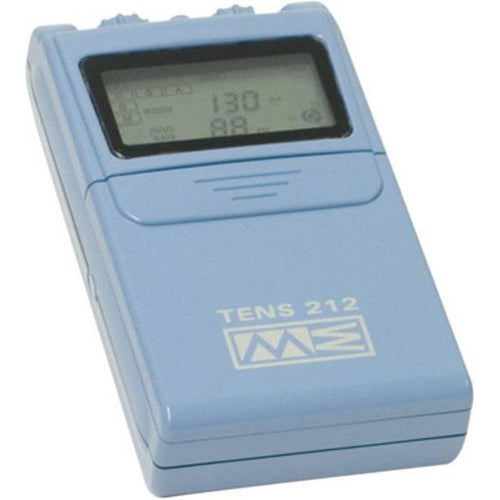

The TENS 212 is an affordable two-channel TENS unit that has continuous, modulated, and burst modes. A digital display shows all treatment parameters while the unit is in use. Pulse frequency and width may be set independently.
The soft Mettler blue color is a nice change from the typical black color of today's TENS units. The blue color makes the 212 easy to see from across the room.
Transcutaneous Neuromuscular Electrical Stimulation (TENS) has proven its high value as a method of pain therapy and is a great help to the experienced clinician. With some indications, medical practitioners can prescribe a unit to patients for use at home. The TENS 212 is a dual-channel electric stimulator for active treatment application, which is equipped with a Liquid Crystal Display indicating operation modes and output as well as a microprocessor for controlling the system.
The electronics of the unit create electric impulses: the intensity, pulse duration, pulse frequency, and modulation of these impulses can be adjusted by a button or a knob.
The TENS 212 can be plugged into the Sonicator 740 using a pin to banana adapter to perform combination therapy.
Features
Mettler Digital TENS 212 Neuromuscular Stimulator Features
- Channel: Dual, isolated between channels.
- Patient Compliance Meter: Shows the treatment times in hours.
- LCD: Shows modes, pulse rate (frequency), pulse width, timer, CH1/CH2. Easy to see from any angle.
- Function Modes:
- B: Cycle Bursts, 2 Bursts/sec, 9 pulses/Burst, 100 Hz, width is adjustable.
- C: Continuous mode. Pulse rate, pulse width, and intensity are adjustable.
- M: Modulated Width: Pulse width is automatically varied in an interval of six seconds. The modulation range of pulse width is from setting value to 35% less than the control setting value, then returns to the setting value. Rate, width, and intensity are fully adjustable.
- Wave Form: Asymmetrical Biphasic square pulse.
- Very easy to use device controls.
- A cover prevents accidental changes in the settings during treatment.
- Easy to use, lightweight, and high quality.
Specifications
Mettler Digital TENS 212 Neuromuscular Stimulator Specifications
- Pulse Intensity: Adjustable 0 - 80 mA peak into 500 Ω load each channel, constant current.
- Pulse Rate: 1 - 160 Hz (adjustable), 1 Hz/step (1 - 20 Hz), 5 Hz/step (20 - 160 Hz).
- Pulse Width: 50 - 260 µs (adjustable), 10 µs/steps.
- Timer: 15, 30, 60 minutes and continuous mode.
- Voltage: 0 - 110 Volts (open circuit).
- Max Charge per Pulse: 21 micro-coulombs.
- Power Source: 9-Volt Battery.
- Dimensions: 1" (T) x 2.4" (W) x 4.25" (H) (25 mm x 61.5 mm x 108 mm).
- Weight: 0.31 lb (140 grams), battery included.
Accessories
Mettler Digital TENS 212 Neuromuscular Stimulator Accessories
The following accessories are compatible and commonly purchased with the Digital TENS 212 Neuromuscular Stimulator:
- #2120: TENS Lead Wires - For Digital TENS 212 Neuromuscular Stimulator.
- EZ-Trode Self-Adhesive Electrode with Aloe Vera:
- #2221: 2" Diameter Round.
- #2222: 2.75" Diameter Round.
- #2223: 2" x 5" Rectangular.
- #2224: 2" Square.
- V Trode Self-Adhesive Electrode:
- #2702: Round - 2".
- #2703: Round - 2.75".
- #2704: Oval - 2" x 4".
- #2705: Square - 2".
