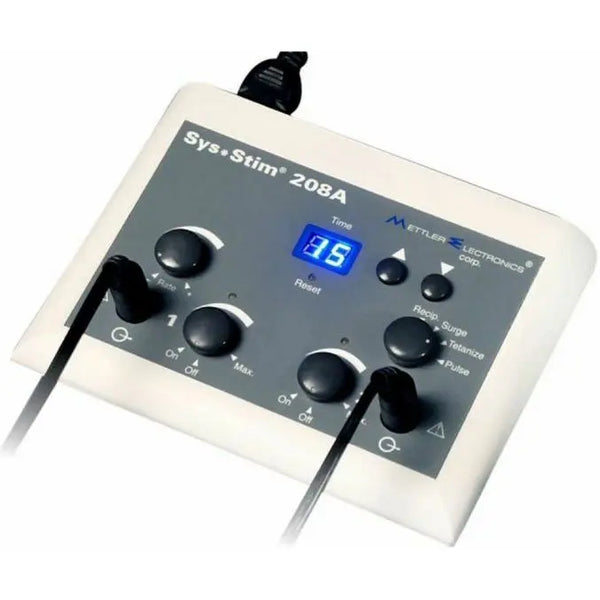

Mettler Sys*Stim 208A Neuromuscular Stimulator

The Mettler Sys*Stim 208A Neuromuscular Stimulator (#ME 208A) package includes two Electrode Cable Sets (#2260), two gray Pin to Banana Adapters (#2027), one package of V Trode Self-Adhesive Electrodes - 2" Round (#2702), Stimulation Patient Safety Switch (#2031), Detachable hospital-grade Line Cord (#7293), and an instruction manual.

Before Purchasing: Before we can proceed with your order, please let us know whether you are a doctor, therapist, or have a prescription for the Sys*Stim 208A Neuromuscular Stimulator. If you have a prescription, please forward a copy of the prescription to orders@mfimedical.com.

Warranty: 2 Years - Against Defects in Materials and Workmanship.

The Sys*Stim 208A is a two-channel, digital low volt stimulation device with Surge, Pulse, Tetanize, and Reciprocation modes. It is designed specifically for the treatment of pain management.

The microprocessor controlled unit allows for a smooth comfortable waveform. The digital timer is visible from all angles of the room. Easy-to-operate intensity control knobs allow the clinician to increase or decrease intensity in small increments allowing for better control and comfort.

Mettler Sys*Stim 208A Neuromuscular Stimulator Features

• Small and portable.
• Clinical appearance.
• Remote patient cut-off switch.
• Uses a square biphasic waveform at very high frequencies to create a comfortable sensation during a pain management treatment.
• Offers the DC waveform, which is used to treat denervation.

Mettler Sys*Stim 208A Neuromuscular Stimulator Specifications

• Weight: 2.25 lb (1 kg).
• Dimensions: 8" (L) x 6" (D) x 2.5" (H) (20 cm x 15 cm x 6.3 cm).
• Input: 100 to 240 Volt AC, 50/60 Hz, 0.75 Amp (max).
• Max Time: 60 minutes.
• Waveform: Asymmetrical biphasic with zero net DC.
• Voltage: 110 V Peak into a 1k ohm load.
• Intensity: 56 µC Max per Pulse into a 100 ohm lead.
• Phase Duration: 200 µS @ 50% Max Amplitude.
• Modes:
  • Pulse: 1 - 80 Hz.
  • Tetanize: 80 Hz.
  • Surge: 80 Hz.
  • Reciprocation: 80 Hz.
• Surge Cycle: 0.5 On/Off to 3.75 On/Off.
• Reciprocation Cycle: 0.5 CH1/CH2 to 3.75 CH1/CH2.

Mettler Sys*Stim 208A Neuromuscular Stimulator Accessories

The following accessories are compatible and commonly purchased with the Sys*Stim 208A Neuromuscular Stimulator:

• Sponge Electrode:
  • #2000: Four Electrodes (2" x 2").
  • #2002: Four Electrodes (4" x 4").
  • #2004: One Electrode (3.5" x 7").
  • #2006: One Electrode (8" x 10").
• Sponge Insert:
  • #2001: 24 Pack (2" x 2").
  • #2003: 24 Pack (4" x 4").
  • #2005: 12 Pack (3.5" x 7").
  • #2007: 12 Pack (8" x 10").
• #2009: Electrode Strap (4/Box).
• #2023: Pencil Electrode Set.
• #2027: Pin to Banana Adapter.
• #2030: Bifurcation Cable Set.
• #2031: Stimulation Patient Safety Switch.
• EZ-Trode Self-Adhesive Electrode with Aloe Vera:
  • #2221: 2" Round (Case of 40).
  • #2222: 2.75" Round (Case of 40).
  • #2223: 2" x 5" Rectangle (Case of 20).
  • #2224: 2" Square (Case of 40).
• #2260: Electrode Cable Set for a Single Channel.
• Mettler V Trode Self-Adhesive Electrode (40/Box):
  • #2702: Round - 2".
  • #2703: Round - 2.75".
  • #2704: Oval - 2" x 4".
  • #2705: Square - 2".
• #7293: Detachable hospital-grade Line Cord.

Mettler Sys*Stim 208A Neuromuscular Stimulator Literature

Mettler Sys*Stim 208 Series Neuromuscular Stimulator Brochure

Mettler Sys*Stim 208A Instruction Manual
