Description

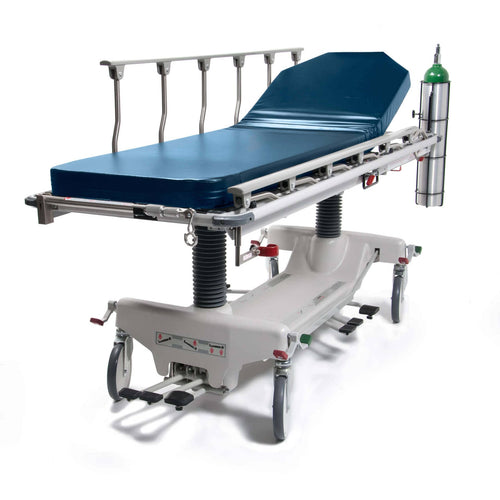

The Hausted Fluoro-Track Fluoroscopy Stretcher (#493RPCST) provides the security of a treatment table with the mobility of a stretcher. Boasting a unique design that utilizes C- Arms for fluoroscopy-guided procedures, this top-of-the-line stretcher also features a proprietary sliding top that enables a broader range of imaging capacity without the need to reposition the patient.
Warranty: 5 Years.
Features
Hausted Fluoro-Track Fluoroscopy Stretcher Features
- Low profile trimmed base creates an excellent window for C-arm access from both sides.
- Designed to be a procedure table with the mobility of a stretcher.
- Improved patient load ratio makes for easier transport reducing the risk of patient or staff injury with patient transfers.
- Dual side foot pedal hydraulic controls allow for easy height adjustment.
- Fold away side arm rails feature built-in push-steer handles.
- Dual column base provides superior support for the patient.
- 8 inch Tente casters facilitate maneuverability.
- 3 inch comfort pads.
Specifications
Hausted Fluoro-Track Fluoroscopy Stretcher Specifications
- Overall Width: 29.75 inches (76 cm).
- Overall Length: 80.25 inches (204 cm).
- Overall Height (Range - Minimum): 23 inches (58.4 cm).
- Overall Height (Range - Maximum): 36 inches (91 cm).
- Patient Surface Width: 24 inches (61 cm).
- Patient Surface Length: 76 inches (193 cm).
- Upright Position Retracto Rail Length: 64 inches (162.5 cm).
- Upright Position Retracto Rail Height: 15 inches (38 cm).
- Mid-Position Retracto Rail Height: 12.75 inches (32.4 cm).
- C-Arm Clearance: 23 inches (58.5 cm).
- Full Length Radiolucent Pad: 3 inches (7.6 cm).
- Easy Rolling Tente Casters: 8 inches (20.3 cm).
- Backrest Movement: 0 - 80°.
- Standard Trendelenburg: 0 - 15°.
- Reverse Trendelenburg: 0 - 15°.
- Weight Capacity: 500 lb (227 kg).
- Shipping Weight: 364 lb (165 kg).
- Operation: Hydraulic.
Literature
Hausted Fluoro-Track Fluoroscopy Stretcher Literature
Hausted Uncrating Instructions
