Description

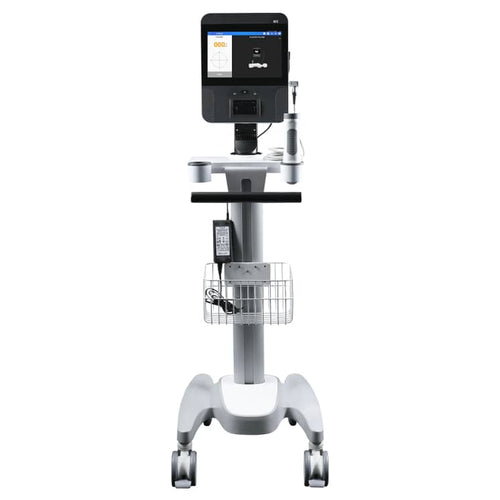

The Edan M5 Bladder Scanner (#M5) is designed for the non-invasive measurement of bladder volume and bladder wall thickness in hospitals, long term care facilities, rehabilitation centers, and urology clinics. It features a system composed of a console with a 10.1-inch capacitive touchscreen display, a built-in printer, a probe with an ultrasound transducer, and a medical cart.
Warranty: 2 Years.
Features
Edan M5 Bladder Scanner Features
- No calibration required.
- Automatic patient type selection.
- Pubic bone interference indicator.
- Both patient information and bladder values are printable.
- Bladder positioning guide on the mini screen of the probe.
- Search for a patient by name to quickly review all historical readings for that patient.
Specifications
Edan M5 Bladder Scanner Specifications
- Probe: P1/2.5 MHZ 3D mechanical sector-scanning.
- Nominal Ultrasonic Operating Frequency: 2.5 MHz ± 15%.
- Volume Measurement Range: 0 ml-999 ml.
- Volume Measurement Accuracy: ± 7% for volume range from 100 to 999 ml, ±7 ml for volume < 100ml.
- Volume Display Resolution: 1 ml.
- Scanning Time: < 5 seconds.
- Bladder Wall Thickness Range: 0 mm – 15 mm.
- Bladder Wall Thickness Measurement Accuracy: ± 10% ±1 mm.
- Battery Capacity: 3200 mAh.
- Operation Mode: Touch key.
- 2D tissue harmonic imaging.
- Bladder 3D Scan Display: Real-time scan images, bladder volume value, bladder shape, bladder projection, 3D image.
- Bladder 2D Scan Display: Real-time scan images, bladder wall thickness value.
- Information Storage: Images, results and other information of the patient can be stored.
- Information Printing: Print the measurement results and pictures.
- Information Management: Check patient history information, restore original information in the database, store, print, delete and export information • Information entry: enter patient gender, ID, name, age.
