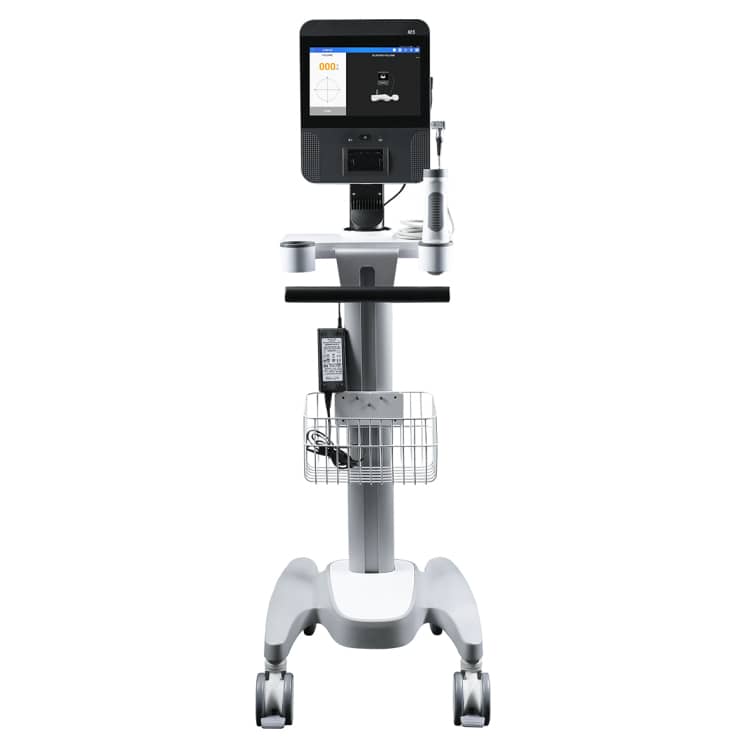

Edan M5 Bladder Scanner

The Edan M5 Bladder Scanner is designed for the accurate, non-invasive assessment of bladder function. It measures:

• Bladder Volume: With a measurement range of 0 ml to 999 ml.
• Bladder Wall Thickness (BWT): Measurable from 0 mm to 15 mm.

This system is ideal for diagnostic use in various clinical environments, including hospitals, urology clinics, long-term care facilities, and rehabilitation centers.

The Edan M5 is engineered for rapid, straightforward operation in clinical settings, minimizing workflow interruptions. It includes several features designed for speed and ease of use:

• Ultra-Fast Scanning: The measurement process takes less than 5 seconds, enabling high patient throughput.
• Zero Maintenance Calibration: The system is ready to use immediately as no periodic calibration is required, saving significant time and effort.
• Intuitive Guidance: A bladder positioning guide is displayed on the probe’s mini screen, helping users achieve correct placement quickly.
• Streamlined Workflow: Features like automatic patient type selection simplify the initial setup.
• Immediate Documentation: The built-in printer provides instant hard-copy results and associated images, eliminating delays in charting.

The Edan M5 Bladder Scanner does not require calibration. This simplifies the operation and maintenance of the device.

Yes, the Edan M5 Bladder Scanner features automatic patient type selection to simplify operation and ensure accurate readings.

The volume measurement range is from 0 ml to 999 ml. The accuracy is ± 7% for volumes between 100 ml and 999 ml, and ± 7 ml for volumes less than 100 ml.

The bladder wall thickness range is 0 mm – 15 mm with a measurement accuracy of ± 10% ± 1 mm.

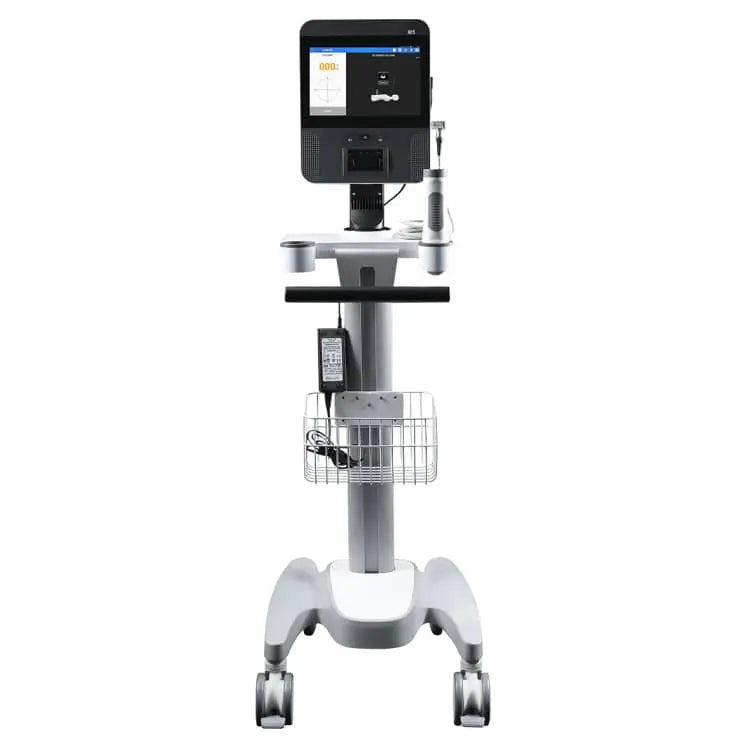

The Edan M5 is delivered as a complete, factory-new mobile bladder scanning system mounted on a dedicated medical cart, ensuring it is ready for immediate clinical use. The package includes all necessary components:

• Console: Features a large 10.1-inch capacitive touchscreen display for intuitive operation.
• Ultrasound Transducer Probe: The specialized P1/2.5 MHZ 3D mechanical sector-scanning probe, which includes an integrated bladder positioning guide.
• Built-in Printer: Allows for immediate, integrated documentation of measurement results and patient information.
• Medical Cart: A robust, mobile cart designed for easy maneuverability, which includes a storage basket for accessories.
• AC Power Adapter/Charger: For powering the system.
• System Documentation.

Yes, the Edan M5 Bladder Scanner has a built-in printer to print measurement results and pictures for immediate documentation.

Yes, the Edan M5 Bladder Scanner offers robust data management capabilities essential for clinical use. It is designed to efficiently manage and store patient assessment information, featuring:

• Patient Data Entry: Allows entry of patient demographics, including gender, ID, name, and age.
• Data Storage: Supports the storage of patient information, measurement results, and scan images.
• Historical Review: Users can search for patients by name to easily review historical readings and results.
• Integrated Printing: A built-in printer provides immediate documentation of both measurement results and pictures.

The Edan M5 Bladder Scanner features a 10.1-inch capacitive touchscreen display for clear viewing and easy navigation.
