Edan SonoTrax II Fetal Doppler Baby Heart Monitor

Yes, the standard configuration of the Edan SonoTrax II Fetal Doppler includes one waterproof interchangeable probe along with a carrying case and a rechargeable battery system. The unit’s design allows for versatility by supporting a full range of interchangeable probes.

The standard bundle typically includes the 3 MHz probe, which is recommended for routine obstetric monitoring (Fetal Heart Rate detection).

Probe Frequency Applications:
The device is versatile and supports probes for two primary clinical applications:

• Obstetric Monitoring: Uses 2 MHz and 3 MHz probes to accurately detect Fetal Heart Rate (FHR).

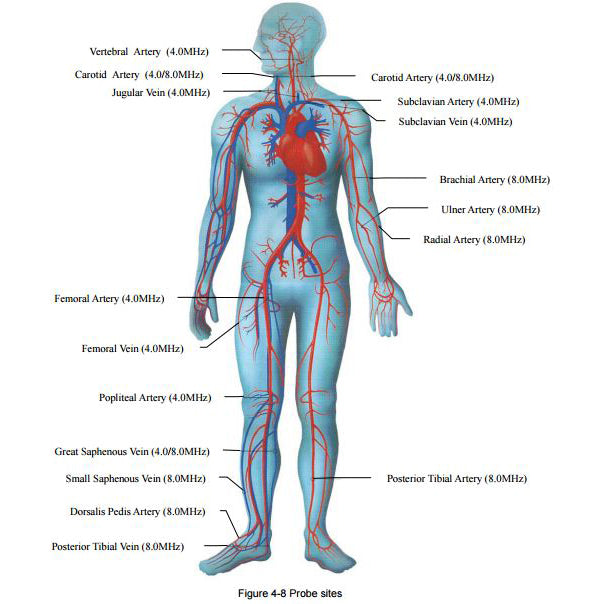

• Vascular Monitoring: Uses 4 MHz, 5 MHz, and 8 MHz probes for assessing blood flow in peripheral veins and arteries.

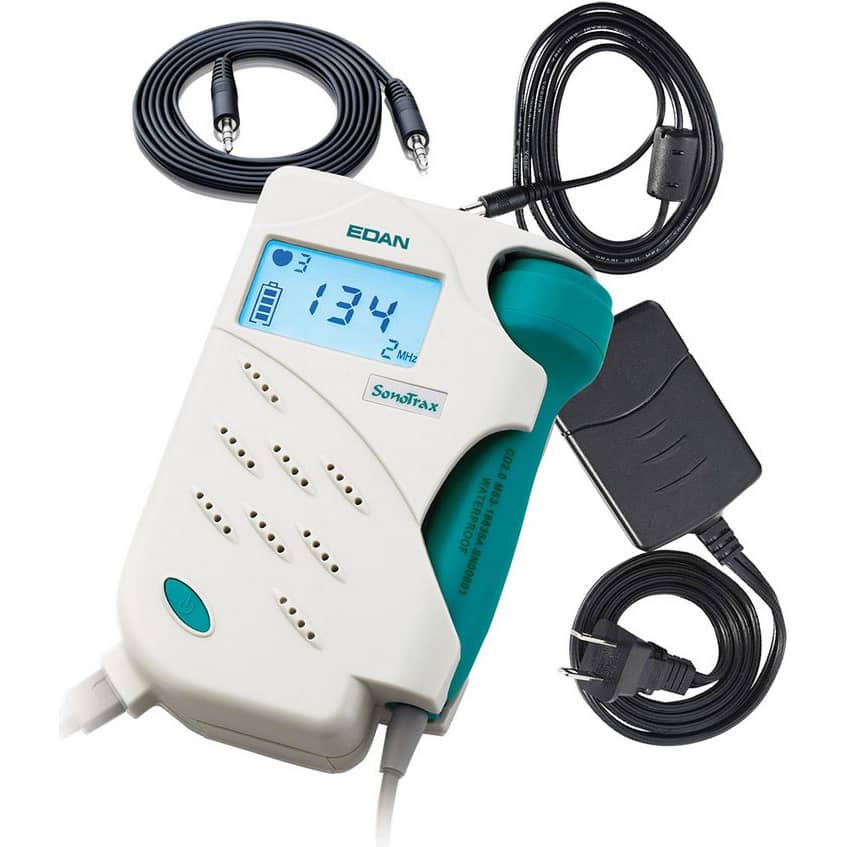

The Edan SonoTrax II Fetal Doppler unit comes complete with everything needed for professional use, including portable power and a carrying case. The standard package includes:

• SonoTrax II Main Doppler Unit
• Waterproof Interchangeable Probe: You select the desired probe frequency upon purchase (options include 2, 3, 4, 5, or 8 MHz). Note: 2 and 3 MHz are indicated for obstetric use, while 4, 5, and 8 MHz are for vascular monitoring.
• Lithium Polymer Rechargeable Battery (1800 mAh): This built-in battery provides approximately four hours of continuous operation.
• Adapter for Charger (USA Standard)
• SonoTrax Carrying Case
• User Manual

Yes, the Edan SonoTrax II Fetal Doppler includes an automatic power-off feature designed to conserve battery life. The device automatically shuts off after 1 minute of no signal or operation, helping to maximize the approximately four hours of continuous use provided by the rechargeable Lithium Polymer battery.

The recommended probe frequency for routine fetal heart rate (FHR) detection is 3 MHz, which is typically included as the standard interchangeable probe.

It is important to note the versatility of the Edan SonoTrax II, which supports five interchangeable, waterproof probes for various clinical applications:

• Obstetric Monitoring (Fetal): The 2 MHz and 3 MHz probes are specifically indicated for accurate FHR detection.
• Vascular Monitoring: The 4 MHz, 5 MHz, and 8 MHz probes are designed for assessing peripheral blood flow in veins and arteries.

The SonoTrax II features a powerful 1800 mAh rechargeable Lithium Polymer battery designed for professional portability and efficiency. This ensures reliable operation during extended use.<ul><li>Continuous Operation: The device provides approximately four hours of continuous monitoring on a full charge.</li><li>Power Conservation: To maximize battery life, the unit includes an automatic power-off feature that activates after 1 minute of no signal or operation.</li><li>Charging: The standard package includes the necessary AC recharger (USA Standard Adapter) for convenient charging.</li></ul>

Yes, the Edan SonoTrax II features a high-fidelity backlight LCD display designed for clear and easy reading in clinical settings. It ensures optimal visibility of results.

• Visibility: The display includes a high-visibility clear blue backlight to ensure readings are easily seen, even in low-light environments.
• Specifications: The screen measures 45 mm x 25 mm.
• Information Displayed: The monitor clearly indicates vital data, including the Fetal Heart Rate (FHR), the status of the rechargeable battery, and the specific frequency of the interchangeable probe currently in use.

The Edan SonoTrax II Fetal Doppler features three specialized working modes to provide flexibility for monitoring by healthcare professionals:

• Real-time/Auto Mode: This mode continuously displays the Fetal Heart Rate (FHR) as it is detected.
• Average Mode: This calculates the average FHR over a measurement period, which is useful for obtaining a stable reading.
• Manual Mode: This allows the user to manually control the start and stop points for the heart rate measurement process.

The Edan SonoTrax II Fetal Doppler is designed to accurately detect heart rates ranging from 50 to 210 bpm.

For precise monitoring, the device provides a resolution of 1 bpm.

Yes, the Edan SonoTrax II is specifically designed as a compact ultrasonic pocket Doppler, making it highly suitable for mobile use by healthcare professionals such as midwives and nurses. Its design prioritizes ease of transport and use during rounds or clinic visits.

Key features supporting its exceptional portability include:

• Pocket Size: The device is small, measuring 141 mm x 89 mm x 34 mm.
• Lightweight: The unit is very lightweight, weighing approximately 0.66 pounds.
• Long Battery Life: It utilizes a built-in Lithium Polymer rechargeable battery, providing up to four hours of continuous operation on a single charge.
• Included Protection: The Doppler comes standard with a SonoTrax Carrying Case for safe transport and storage.

Yes, the Edan SonoTrax II Fetal Doppler is a professional-grade medical device explicitly intended for use by qualified healthcare professionals.

It is designed to meet routine obstetric and vascular monitoring requirements in clinical settings, such as hospitals, clinics, and private offices.

Key features that confirm its professional focus include:

• Intended Users: Nurses, midwives, and technicians.
• Versatility: Supports a full range of interchangeable waterproof probes (2 MHz, 3 MHz for obstetrics; 4 MHz, 5 MHz, 8 MHz for peripheral vascular assessment).
• Reliability: The Doppler unit is backed by a 2-year warranty.
