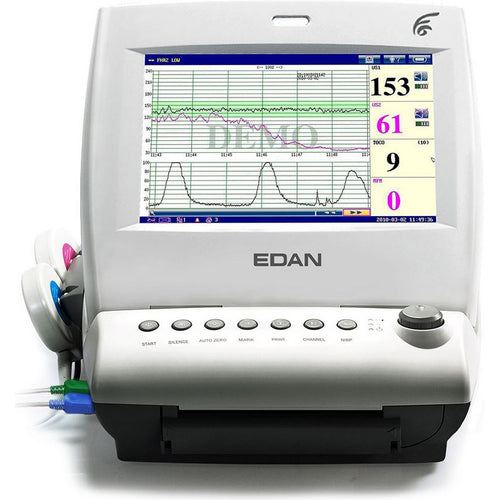

Edan F6 Dual Fetal Monitor (Twins FHR)

(0)
$3,400.00
$3,400.00
$4,312.50
Sold out
Quantity must be 1 or more

Description

The Edan F6 Dual Fetal Monitor (Twins FHR) comes standard with:

  • (2) FHR Probes (#02.01.210256).
  • TOCO Probe [(F6 without DECG/IUP) (#02.01.210259)].
  • TOCO Probe [(F6 with DECG/IUP) (#02.01.210260)].
  • Event Marker (#02.01.210095).
  • (3) Belts (#01.57.02264).
  • Ultrasound Gel [(CE Mark, 250 g) (#11.57.78008-11)].
  • (3) units of Recording Paper (#F6/F9-P).
  • (2) T1.6AL Fuses (#01.21.64066).
  • Power Cord (USA Standard) (#11.13.36016).
  • User Manual.
  • Quick Reference.
  • Guidance to Fetal Heart Monitoring (#01.54.455058-10).
  • Insight Connection Cable (#01.13.107659-11).
  • Ethernet Cable (#11.13.20096).
  • Ground Cable (#11.13.114214).
  • Screwdriver (#01.24.070019).

Warranty: Factory 3 Years - Free from Defects in Materials and Workmanship.

Note: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

The F6 Dual Fetal Monitor (#F6Twins) is a high end hospital grade monitor designed for multi-bed units with a central station, yet simple enough for private practice. It offers the most advanced integrated monitoring for the delivery room in big hospitals, private obstetrician's offices, and antepartum clinics.

The F6Twins is intended for non-invasive and invasive monitoring of the fetus during antepartum examination, labor, and delivery. It provides non-stressful testing for pregnant women from the 28th week of gestation and on.

The Dual Fetal Monitor can externally monitor the FHRs using ultrasound and uterine activity via a TOCO transducer or internally monitor one of the FHRs with DECG and uterine activity with an IUPC.

Features

Edan F6 Dual Fetal Monitor (Twins FHR) Features

  • Basic Parameters: Twins FHR, TOCO, Event Mark, Auto Fetal Movement.
  • 24 hours waveforms playback.
  • High resolution and long life built-in thermal printer.
  • Quick printing for stored waveform.
  • Display waveforms and digitals simultaneously.
  • Probe rack and wall mounting rack.
  • Handle for easy carry.
  • Multi-crystal pulse wave doppler waterproof transducer for FHR detection.
  • Signals overlap verification.
  • Optional Internal Parameters: IUP/DECG.
  • Optional built-in wireless module.
  • Optional fetal stimulators.

Specifications

Edan F6 Dual Fetal Monitor (Twins FHR) Specifications

  • Physical Characteristics:
    • Dimensions: 347 mm x 330 mm x 126 mm.
    • Weight: 13.2 lbs (6 kg) approximately.
  • Display:
    • 10.2" high resolution color folding up TFT-LCD screen.
    • Resolution: 800 x 480.
  • Printing:
    • Recorder: 1, 2, 3 cm/min real printing speed. Fast print speed (stored traces) up to 25 mm/sec.
    • Recording Paper: 150/152 mm, Z-Fold, thermosensitive, american/international standard.
  • Ultrasound:
    • Technique: Ultrasound pulse doppler with correlation.
    • Pulse Repetition Rate: 2 KHz.
    • Ultrasound Frequency: 1.0 MHz ± 10%.
    • FHR Range: 50 - 240 bpm.
    • Resolution: 1 bpm.
    • Accuracy: ± 2 bpm.
  • DECG:
    • Technique: Peak - peak detection technique.
    • FHR Range: 30 - 240 bpm.
    • Resolution: 1 bpm.
    • Accuracy: ± 1 bpm.
    • Input Impedance: > 10 M (differential).
    • Input Impedance: > 20 M (common mode).
  • TOCO:
    • TOCO Range: 0 - 100 Relative %.
    • Resolution: 1%.
    • Zero Mode: Auto/Manual.
    • Non-Linear Error: ‰¤ ± 10%.
  • IUP:
    • Pressure Range: 0 - 100 mmHg.
    • Resolution: 1%.
    • Zero Mode: Auto/Manual.
    • Non-Linear Error: ± 3 mmHg.
  • Auto Fetal Movement (AFM):
    • Technique: Pulsed doppler ultrasound.
    • Range: 0 - 100%.
    • Resolution: 1%.
  • Marking: Manual fetal movement mark.
  • Battery:
    • 14.8 V rechargeable lithium-ion battery.
    • Continuous Working Time: 2 - 4 hours.
  • Communication Port: DB9 network interface, RJ45 interface.

Accessories

Edan F6 Dual Fetal Monitor (Twins FHR) Accessories

The F6 Dual Fetal Monitor (Twins FHR) most popular accessories are:

  • #F6/F9-P: Recording paper (90 mm x 152 mm x 150 p, US standard).
  • DECG and IUP Function: Must be assembled at Edan.
    • DECG and IUP function board and interface.
    • DECG Cable (#01.13.036358-10).
    • IUP Cable (#11.13.104152).
    • IUP Communication Cable (#01.13.036357-10).
    • (5) IUP Catheters (#11.57.104153).
    • (5) FSE Safelinc Single Electrodes (#11.57.02145).
    • (5) PAD Attachment Pad Electrodes (#11.57.02146).
  • #MT-803: Luxury Trolley for F Series Fetal Monitors.
  • #MT-207 & Plate_F6F9: Center pole trolley (roll stand) with basket and locking casters.
  • #02.01.210061: Pivot arm wall mount for F series.
  • #CMS-Lite-1bed: Edan Central Station Software - Manage 1 Bedside Patient Monitor.
  • #CMS-Lite-4bed: Edan Central Station Software - Manage up to 4 Bedside Patient Monitors.
  • #CMS-Lite-64bed: Edan Central Station Software - Manage up to 64 Bedside Patient Monitors.

Literature

Edan F6 Dual Fetal Monitor (Twins FHR) Literature

Edan Fetal Monitor Comparison Chart

Edan F6 Fetal & Maternal Monitor Brochure

Edan F6/F6 Express Fetal & Maternal Monitor User Manual
