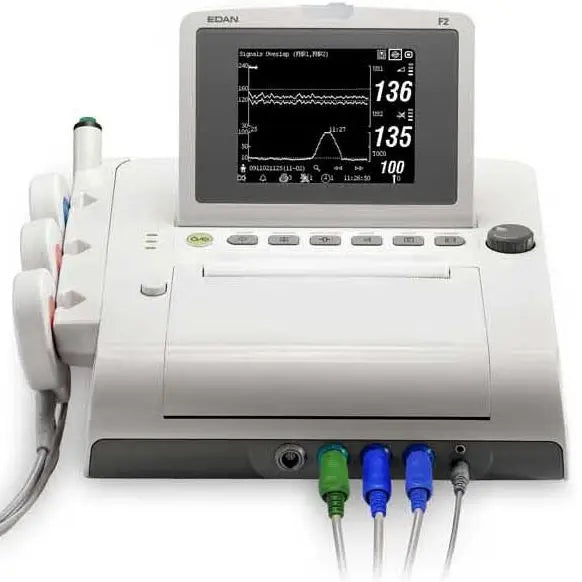

Edan F2 Fetal Monitor

The Edan F2 Fetal Monitor ships as a complete package, including all necessary probes, connectivity components, and consumables for immediate operational use in a clinical setting.

Monitoring Probes & Supplies

• FHR Probe
• TOCO Probe (without DECG and IUP function)
• TOCO Probe (with DECG and IUP function)
• Event Marker
• Belt
• Ultrasound Gel (250 g, CE Mark)
• Recording Paper (90 mm x 152 mm x 150 p, US Standard)

Data Management & Connectivity

• Insight Software (CD) and User Manual
• RS232 to USB Adapter and Driver CD
• Insight Connection Cable
• Ethernet Cable

Power & Maintenance

• Built-in thermal printer
• Power Cord (U.S.A. Standard)
• Power Cord (European Standard)
• T1.6AL Fuse
• Screwdriver

Documentation

• User Manual
• Quick Reference Guide
• Guidance to Fetal Heart Monitoring

Yes, the Edan F2 Fetal Monitor features advanced FHR detection technology including Signals Overlap Verification (to differentiate between twins) and a signal quality indicator to optimize probe position.

Yes, the Edan F2 Fetal Monitor is highly portable and lightweight, designed for easy mobility in various clinical and hospital settings.Its key physical specifications are:

• Unit Weight: Only 7.7 lb (3.5 kg).
• Dimensions (H x W x D): 350 mm x 300 mm x 104 mm.

This compact size, combined with a long-life rechargeable Lithium-ion battery, ensures enhanced flexibility for comprehensive obstetrical monitoring.

The Edan F2 Fetal Monitor is designed for precise fetal heart rate tracking through both non-invasive and invasive methods. The device features Signals Overlap Verification technology, which is essential for accurately differentiating between twin heart rate signals.

FHR Measurement Ranges

• Ultrasound (Non-Invasive): 50 ~ 240 bpm. This method uses Ultrasound Pulse Doppler with autocorrelation for reliable monitoring.
• DECG (Invasive): 30 ~ 240 bpm. This method utilizes peak-peak detection for high-fidelity data collection.

These capabilities allow clinicians to maintain consistent monitoring across a wide range of fetal heart rates during both routine and complex obstetrical assessments.

Yes, the Edan F2 Fetal Monitor is equipped with robust data storage and management capabilities designed for clinical environments:

• Internal Backup Memory: The monitor includes 12 hours of built-in backup memory to ensure continuous data capture during monitoring sessions.
• Expandable Storage: Data storage capacity can be enlarged via the integrated USB port.
• Network Connectivity: The device supports connectivity to an MFM-CNS network, allowing for centralized PC data management using the included Insight Software.

Important Note on Data Security: Any data saved to a USB drive is encrypted. Viewing these files as PDFs on a computer requires the specific CNS/CNS-Lite software (necessary for PDF export) to decrypt and manage the stored files.

Yes, the Edan F2 Fetal Monitor features advanced connectivity and robust data management capabilities:

• MFM-CNS Network Connection: The monitor is equipped with MFM-CNS network capability for centralized monitoring and PC data management.
• USB Port Expansion: A USB port allows for storage enlargement and data export. The required Insight Software (CD is included) facilitates data storage and retrieval.
• Built-in Backup Memory: The unit includes 12 hours of built-in backup memory for continuous monitoring assurance.

Note that data exported via the USB port is encrypted and requires specific CNS/CNS-Lite software to be viewed as a PDF file on a computer.

Yes, the Edan F2 Fetal Monitor is designed for a simple workflow and ease of use. The device features a control interface using tactile silicone buttons.

Key features that enhance operation include:

• A 5.6-inch fold-able black and white LCD screen.
• The ability to display both waveforms and digital readings simultaneously for straightforward interpretation.

The Edan F2 Fetal Monitor provides comprehensive obstetrical monitoring, capable of measuring the following key parameters:

• Dual Fetal Heart Rate (FHR): The device simultaneously monitors twin FHR signals using Ultrasound Pulse Doppler technology, enhanced by Signals Overlap Verification for accurate differentiation. It also includes a signal quality indicator for optimal probe placement.
  • FHR Range (Ultrasound): 50 ~ 240 bpm
  • Accuracy: +/- 2 bpm
• Uterine Contraction (TOCO): Measures external uterine activity across a range of 0 to 100%.
• Digital Fetal Electrocardiogram (DECG): Allows for internal, highly accurate FHR monitoring (range 30 ~ 240 bpm, +/- 1 bpm accuracy).
• Intrauterine Pressure (IUP): Measures pressure within the uterus (range 0 - 100 mmHg).
• Fetal Movement: Supports both automatic detection and manual marking using the provided remote event marker.

The Edan F2 Fetal Monitor utilizes a 5.6-inch fold-able black and white LCD screen designed for clear observation in clinical settings. The display specifications are:

• Resolution: RGB 640 (W) x 480 (H)
• Display Mode: The monitor simultaneously shows both vital waveforms and numerical digital measurements, providing comprehensive data at a glance.

Yes, the Edan F2 Fetal Monitor is designed for enhanced mobility and is equipped with a long-lasting internal power source.

• Battery Type: The monitor utilizes a 14.8 V rechargeable Li-ion battery.
• Benefit: This robust, long-life battery supports the unit’s portability, ensuring reliable performance for continuous use across different clinical and hospital environments.

(Note: The specific operational run time on a full charge is not detailed in the product information.)
