- Condition: Factory New
- Warranty: 3 Years
- Weight: 13.2 lb
- Sensitive waterproof FHR transducer
- Flat surface design and waterproof TOCO transducer
- Fetal and maternal parameters both available
- Monitoring waveform storage and playback
-
Learn more:
-
Purchasing Restriction: Medical license or prescription required
- MFR: Edan Ships from MFI Medical
- MPN: F9Express
- Phone: (888) 850-4597
Frequently asked questions
Does the monitor support all stages of care?
Yes, the Edan F9 Express Fetal/Maternal Monitor is designed for comprehensive fetal and maternal monitoring across various stages. It is suitable for antepartum, intrapartum, and postpartum clinical applications, offering integrated monitoring capabilities for both mother and fetus.
Does the Edan F9 Express include a printer?
Yes, the Edan F9 Express Fetal/Maternal Monitor includes a built-in long-life thermal printer. It supports real-time printing speeds of 1, 2, or 3 cm/minute and is compatible with both 150/152 mm universal recording paper and American/International standard recording paper.
Does the Edan F9 Express have features to differentiate the FHR of twins?
Yes, the Edan F9 Express features signals overlap verification to help distinguish between the FHR of twins, ensuring accurate monitoring.
What essential accessories are included?
The Edan F9 Express Fetal/Maternal Monitor ships as a complete package, providing all necessary probes, cables, and accessories for immediate fetal and maternal monitoring. It even includes mounting options for clinical flexibility.
Key Included Components:
- Monitoring Probes: 2 FHR Probes and 1 TOCO Probe.
- Maternal Vitals: 3-lead ECG Cable, Adult Disposable Adhesive Electrodes, Reusable Adult Cuff (25 - 35 cm), 3 m NIBP Tubing, Edan SH1 Reusable SpO2 Sensor, and a Temperature Skin Probe.

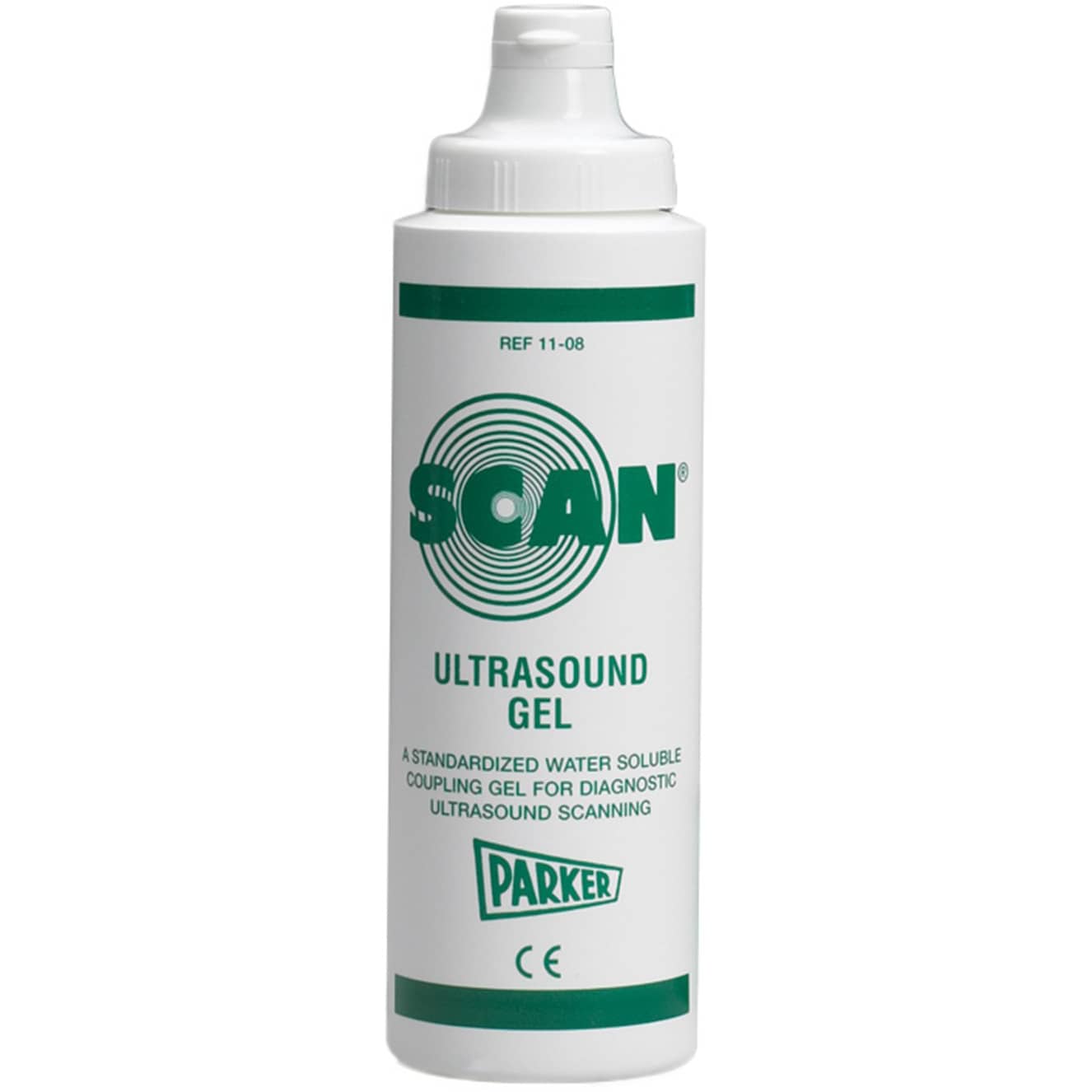

- Supplies: Patient Belt, 250 g Ultrasound Gel (CE Mark), and 1 Packet of Recording Paper.
- Connectivity & Software: Ethernet Cable, Insight Connection Cable, Insight Software (CD) and Manual, and a User Manual.
- Ergonomics: An Event Marker, a Probe rack, and a Wall Mounting Rack are also included.
What comprehensive parameters does the monitor measure?
The Edan F9 Express Fetal/Maternal Monitor provides comprehensive monitoring for both fetal and maternal health, suitable for use across antepartum, intrapartum, and postpartum settings.
Fetal and Uterine Parameters
This monitor is capable of tracking key fetal and uterine activity metrics, including integrated monitoring for twins’ FHR:
- Fetal Heart Rate (FHR): Monitors up to two fetuses simultaneously (twins), utilizing Signals Overlap Verification for accurate trace separation.
- Uterine Activity (TOCO): Tracks contractions and uterine tone.
- Auto Fetal Movement (AFM): Automatically registers fetal movement events.
- Event Mark: Allows clinical marking of important events.
Optional Internal Parameters
The monitor also supports the following advanced parameters:
- Intrauterine Pressure (IUP)
- Direct Fetal ECG (DECG)
Maternal Vital Signs
It continuously monitors critical maternal vital signs:
- Non-Invasive Blood Pressure (NIBP)
- Oxygen Saturation (MSpO2)
- Electrocardiogram (MECG)
- Temperature (TEMP)
How long does the built-in battery last?
The Edan F9 Express is equipped with a robust, built-in 14.8 V rechargeable Lithium-Ion battery. This key feature ensures continuous operation, offering up to 4 hours of continuous working time.
This battery life supports the monitor’s portability, making it easy to move between patient rooms or care units without interrupting the monitoring process.
How must data saved to a USB be viewed?
Data saved onto a USB drive from the F9 Express monitor is encrypted for security. Accessing and viewing this data requires specific software:
- PC Viewing: You must use the specific CMS/CMS-Lite software to decrypt and view the data (which can be viewed as a PDF on a computer).
- Printed Output: Alternatively, output can be directed to an installed printer. If this method is preferred, the printer must be ordered concurrently with the monitor.

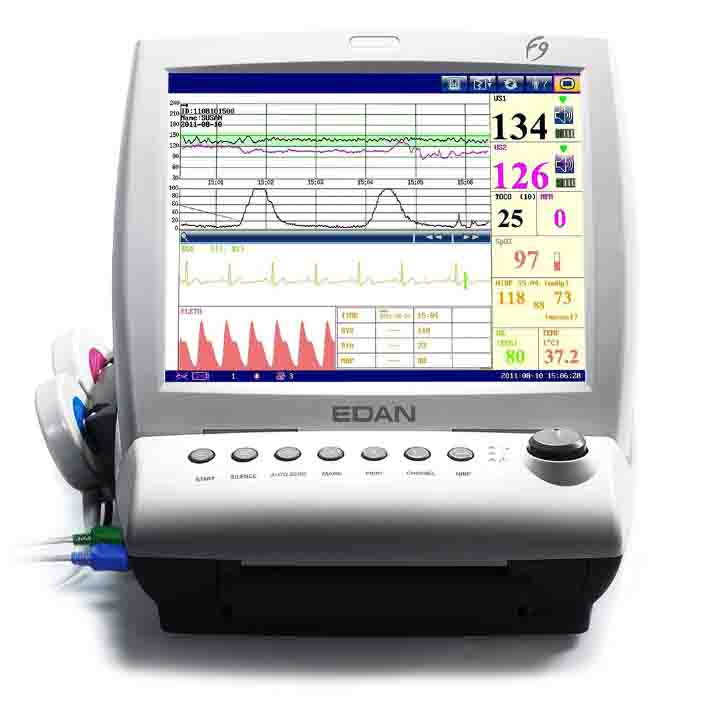

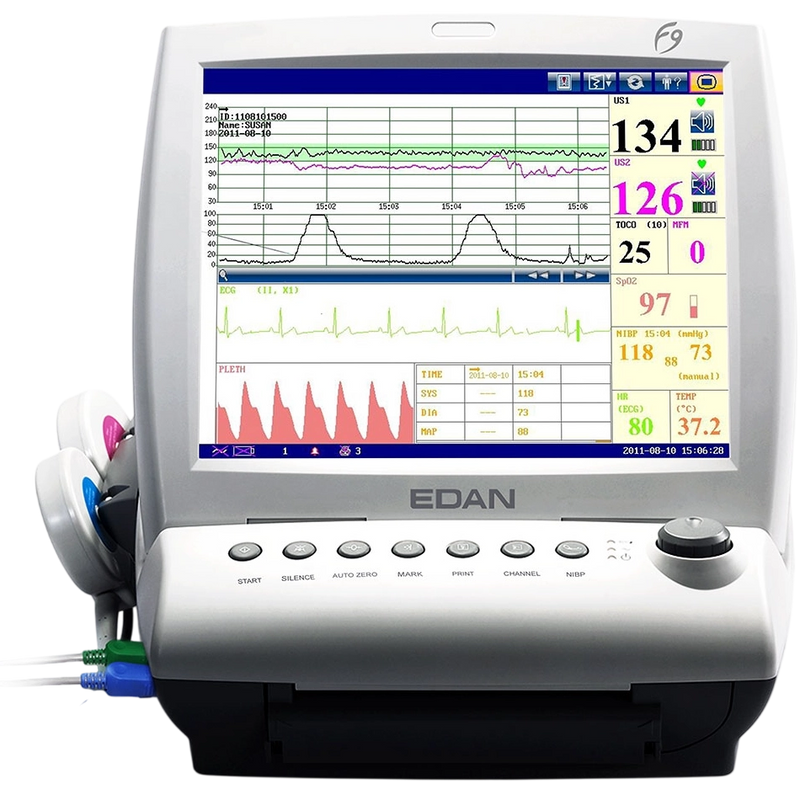

Does the Edan F9 Express Monitor feature a large, high-resolution screen?
Yes, the Edan F9 Express is equipped with an advanced color display designed for clear, comprehensive visualization of all monitoring data. It supports viewing real-time and historical waveforms simultaneously. Key display specifications and features include:* Size and Type: A large 12.1-inch (30.7 cm) color TFT-LCD screen.* Resolution: Provides detailed readings with an 800 x 600 resolution.* Playback: Features 24 hours of waveform storage and playback capability for comprehensive review.* Control: The monitor also offers an optional touchscreen capability.
What are the FHR and TOCO measurement ranges?
The Edan F9 Express provides detailed monitoring for both Fetal Heart Rate (FHR) and Uterine Activity (TOCO).
Fetal Heart Rate (FHR) Monitoring:
- Range (Ultrasound): 50 bpm to 240 bpm
- Accuracy (Ultrasound): ±2 bpm
If utilizing the optional Direct ECG (DECG) internal parameter, the ranges are:
- American Standard: 30 bpm to 240 bpm
- International Standard: 50 bpm to 210 bpm
- Accuracy (DECG): ±1 bpm
Uterine Activity (TOCO) Monitoring:
- Range: 0 to 100 Relative (%)
- Resolution: 1%
Does the F9 Express monitor support easy portability?
Yes, the Edan F9 Express is engineered for portability, making it highly suitable for transport across different clinical settings (ante, intra, and postpartum). Its design features ensure continuity of care, even during movement:
- Integrated Handle: Includes a handle for easy carrying and transport between patient rooms.
- Lightweight Build: The unit weighs only 6 kg (13.2 lb).
- Powerful Battery: Features a built-in rechargeable Lithium-Ion battery that provides up to 4 hours of continuous working time when unplugged.
