Description

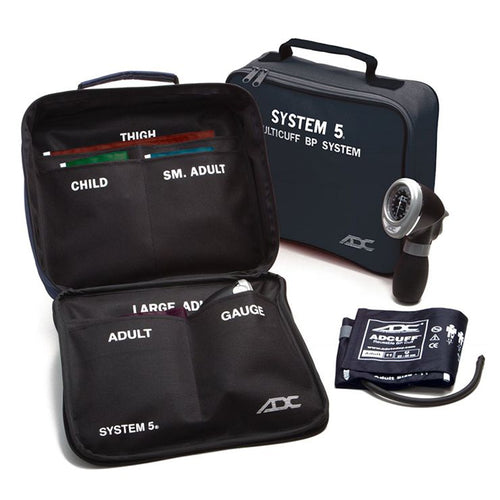

The ADC System 5 Portable 5 Cuff Sphygmomanometer Multicuff Kit includes an ADC 804N palm gauge manometer, Child, Small Adult, Adult, Large Adult, and Thigh calibrated Nylon Adcuffs, and a multi-pocketed, heavy duty 600D nylon attaché style case that keeps each component securely in place, yet instantly accessible. The cuffs are available in Multicolor (#740-MCC), Navy (#740-N), or Orange (#740-OR) configurations.
Note: This kit includes only one palm gauge manometer.
Warranty: 3 Years (Manometer carries a lifetime calibration warranty).
The ADC System 5 Portable 5 Cuff Sphygmomanometer Multicuff Kit is the most compact, ergonomically designed, and affordably priced portable 5 cuff blood pressure system on the market.
Features
ADC System 5 Portable 5 Cuff Sphygmomanometer Multicuff Kit Features
- Revolutionary Diagnostix #804 palm style manometer with precision Japanese engineered movement rated to 50,000 cycles.
- Quick release luer slip connector to permit rapid selection of the appropriate cuff.
- Ambidextrous trigger release air valve.
- Dual zipper closure permits rapid access, and protects against the elements.
- Compact enough to fit in most emergency bags or trauma boxes.
- Reinforced carry handle allows for wall mounting in the open position.
- Adcuff nylon cuff features the Size Guide marking system.
- Not made with natural rubber latex.
- Assembled, inspected, and packaged in the U.S.A. from foreign components.
- Meets or exceeds ANSI/AAMI/ISO 81060-1.
Specifications
ADC System 5 Portable 5 Cuff Sphygmomanometer Multicuff Kit Specifications
- Sphyg Type: Multicuff.
- Gauge Product Number: #804N.
- Gauge Warranty: Lifetime.
- Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
- Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
- Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
- Valve Type: Integral.
- Number of Tubes: 1.
- Cuff Type: ADCUFF.
- Cuff Sizes and Ranges:
- Child: 5.12" - 7.68" (13 cm - 19.5 cm).
- Small Adult: 7.48" - 10.63" (19 cm - 27 cm).
- Adult: 9.06" - 15.75" (23 cm - 40 cm).
- Large Adult: 13.39" - 19.69" (34 cm - 50 cm).
- Thigh: 15.75" - 25.98" (40 cm - 66 cm).
- Inflation Warranty: 3 Years.
- Storage Case Dimensions (Closed): 10" x 9" x 4" (25.4 cm 22.86 cm 10.16 cm).
- Storage Case with Sphyg and Cuffs Weight: 2.5 lb (1.13 kg).
- Storage Case Colors and Product Numbers: Navy: 883B / Orange: 883O.
Media and Literature
ADC System 5 Portable 5 Cuff Sphygmomanometer Multicuff Kit Media and Literature
ADC Diagnostix Aneroid Sphygmomanometers Instructions for Use
ADC Diagnostix Aneroid Sphygmomanometer Accessories Instructions for Use
