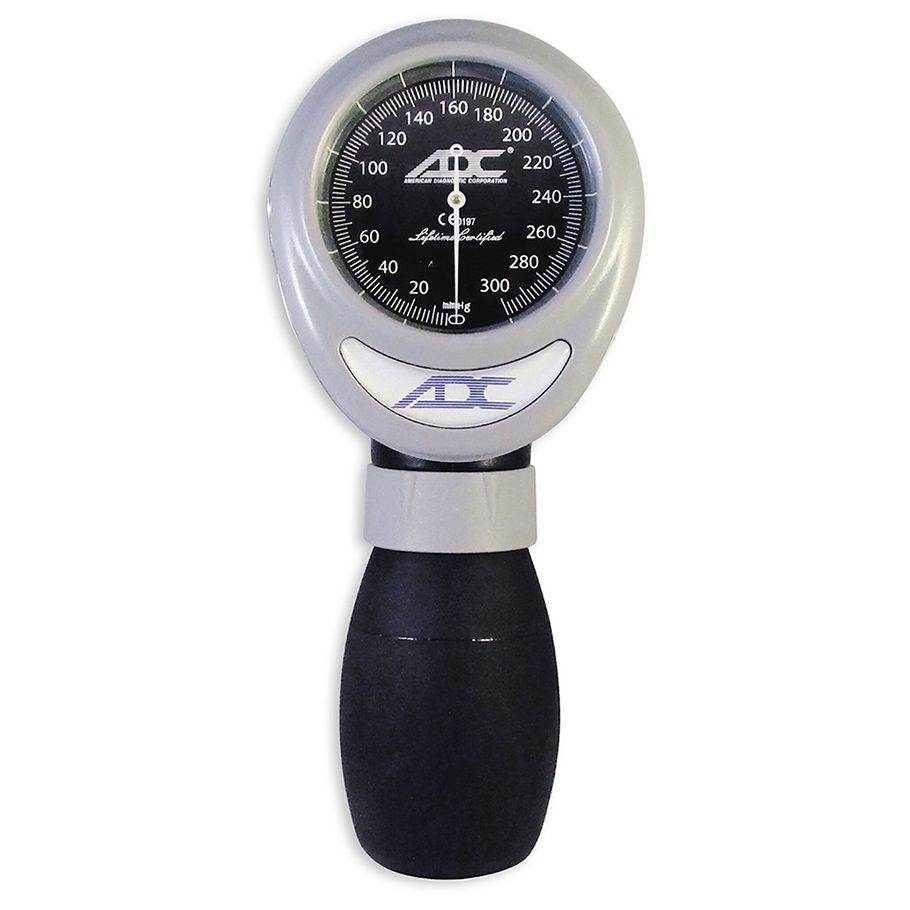

ADC 804N Gauge for 703/788 Palm Aneroid Sphygmomanometers

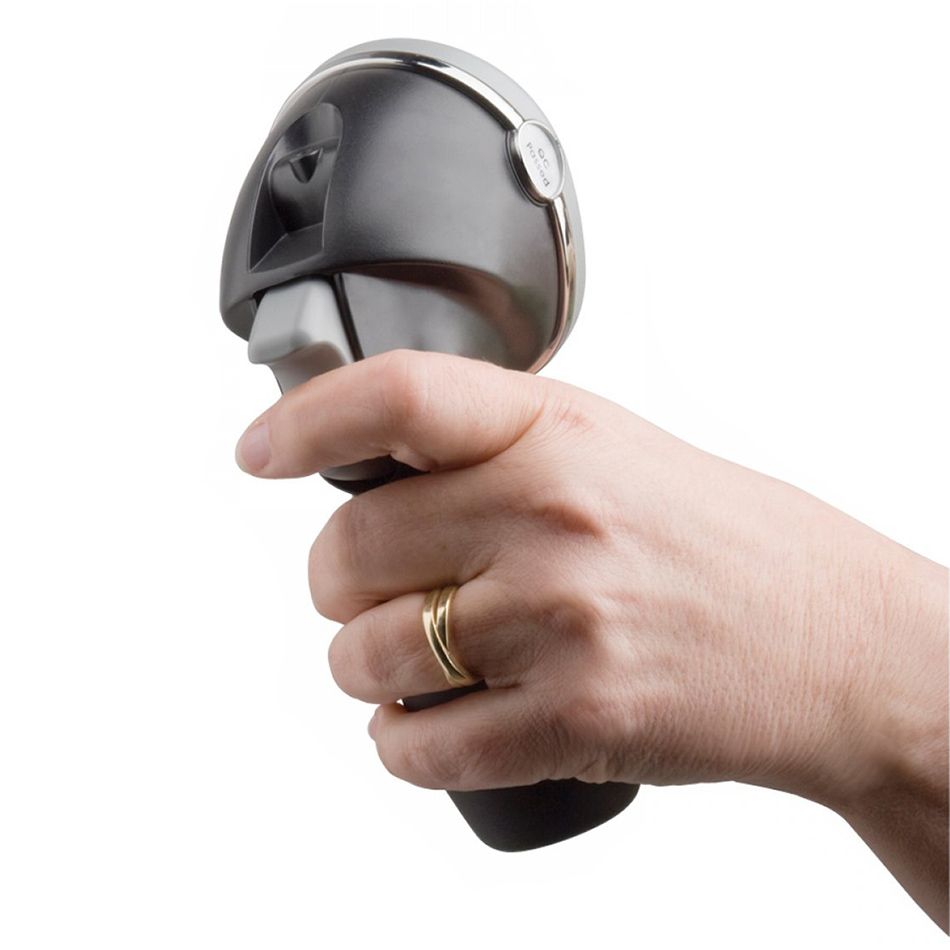

Yes, this gauge is specifically engineered for convenient one-hand operation. It features an ergonomic, palm-style design with an integral inflation bulb and an ambidextrous trigger release air valve for controlled deflation. This functionality is essential for efficient use in clinical or field settings.

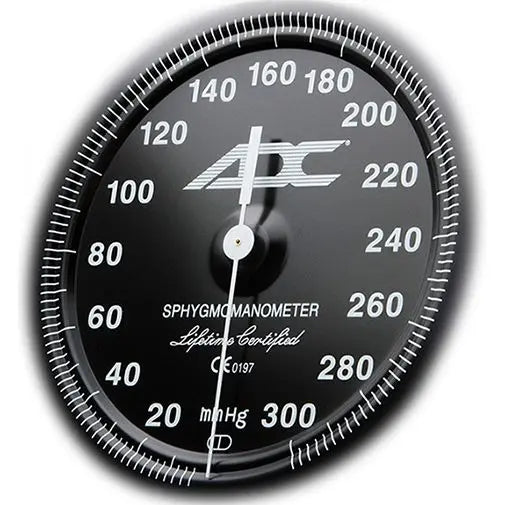

Yes, the ADC 804N Gauge is specifically engineered for superior readability in diverse clinical settings, including low-light environments. This is achieved through several design features:

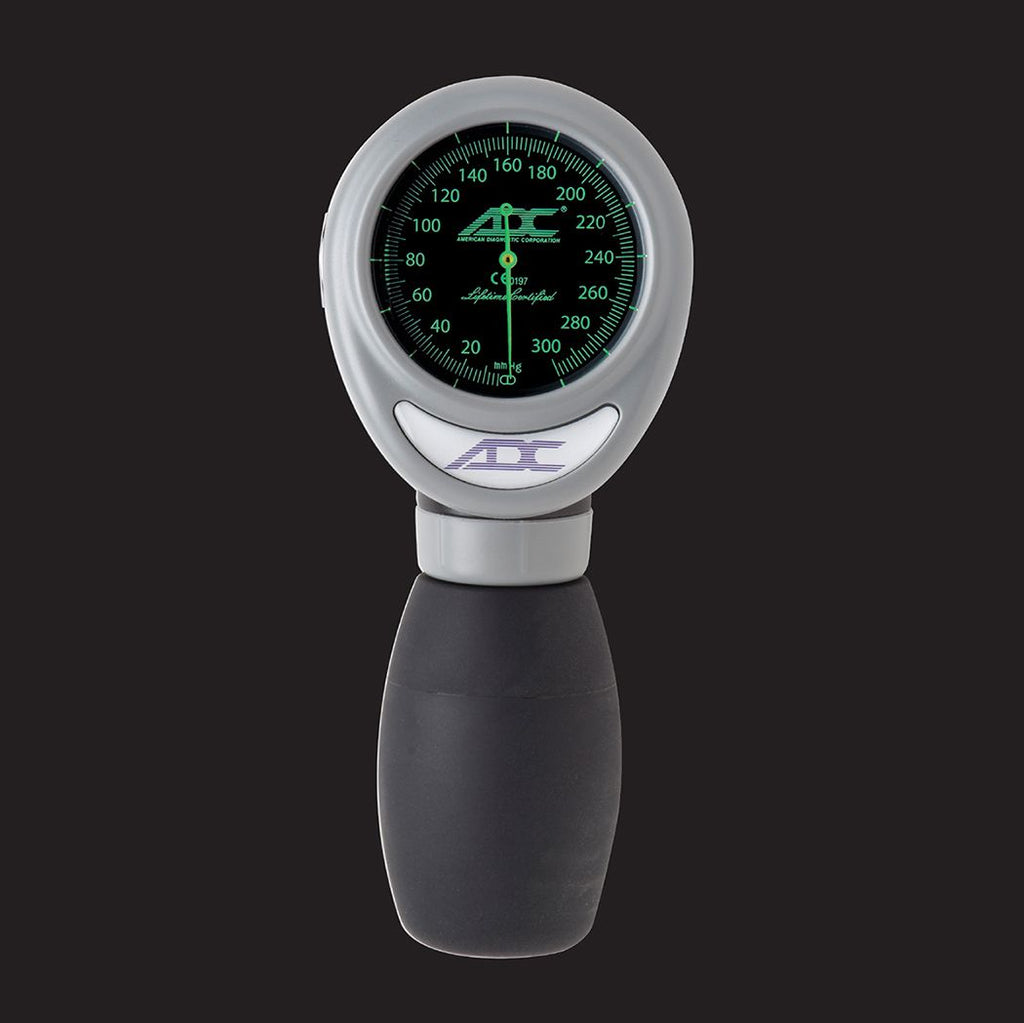

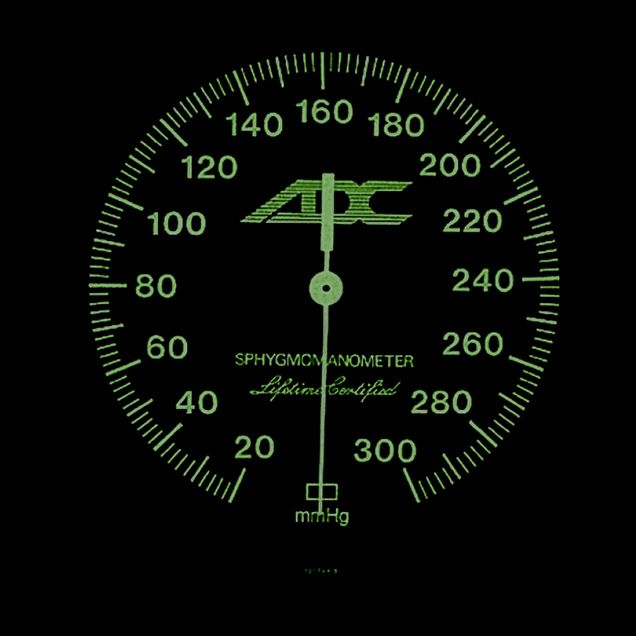

• Luminescent Display: The dial glows, ensuring the numbers and markings remain visible for accurate readings, even in dim conditions.
• Enhanced Clarity: It features bold numerals and extended graduation marks, optimizing quick and precise interpretation of blood pressure.
• Optimal Viewing: The dial design is clear and readable from various viewing angles and light conditions.

The ADC 804N Gauge is designed as a direct replacement or upgrade for specific palm-style sphygmomanometers and blood pressure kits, utilizing a quick release luer slip connector.

It is compatible with the following ADC models and kits:

• ADC Diagnostix 703 and 788 Palm Aneroid Sphygmomanometers.
• Various ADC Multicuff Kits, including the General Practice, Pediatric, Portable 3, Portable 4, and System 5 Cuff Kits.

This gauge is engineered for professional use, featuring an integral inflation bulb and trigger-style air release valve for convenient one-hand operation.

Yes, the ADC 804N Gauge is engineered for superior durability and shock resistance, making it ideal for demanding clinical settings. The design incorporates several features to protect its high-precision components:

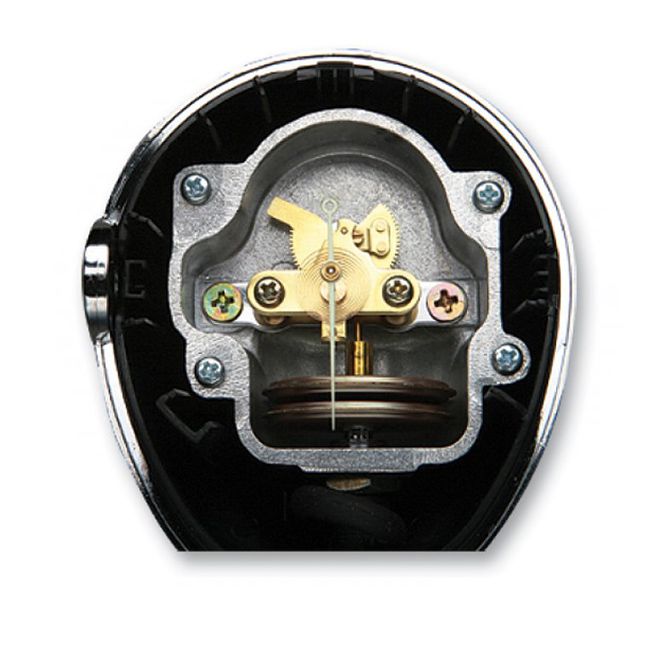

• Enhanced Shock Protection: The delicate, Japanese-engineered movement is secured within a protective zinc cage. This cage is suspended inside the polymer housing, significantly boosting resistance to drops and impacts.
• Extreme Reliability: The movement has been rigorously tested to withstand 50,000 operational cycles, ensuring longevity and consistent performance.

Furthermore, the unit is individually tested to conform to stringent ANSI/AAMI/ISO 81060-1 standards and is supported by a Lifetime Calibration Warranty.

Yes, the ADC 804N Gauge features a specialized design optimized for precise control and convenient one-hand operation. The integral features include:

• Integral Inflation Bulb: Located directly on the palm-style manometer body.
• Trigger-Style Release: An ambidextrous, infinite control trigger-style air release valve is included.

This system allows users to achieve precise, controlled deflation rates with ease, enhancing accuracy and speed in professional settings.

The ADC 804N Gauge provides a maximum pressure reading of 300 mm Hg, suitable for standard blood pressure measurements.

The ADC 804N Gauge arrives as a complete, factory-new unit designed for professional medical use. Each purchase includes:

• The manometer gauge unit featuring a high-precision, Japanese-engineered movement.
• An integral inflation bulb for reliable air delivery.
• A quick-release luer slip connector for easy attachment to your blood pressure cuffs.

The unit is equipped with an ambidextrous, trigger-style air release valve that allows for convenient one-handed operation. Every gauge is individually boxed for protection.

The ADC 804N Gauge uses a quick release luer slip connector for attachment to the cuff system. This design ensures a secure and efficient connection, making the gauge easy to swap out and use.

Yes, the ADC 804N Gauge is manufactured without natural rubber latex. This makes it a safe component for use in professional clinical settings where latex sensitivities may be a concern.

Yes, the gauge features a precision-crafted 300 mm Hg Japanese engineered movement. This movement has been rigorously tested to 50,000 cycles, ensuring high accuracy and long-lasting durability.
